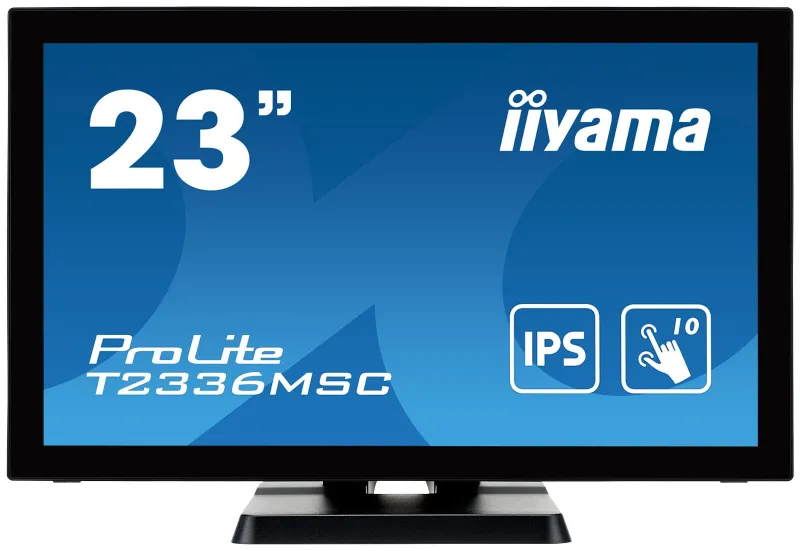

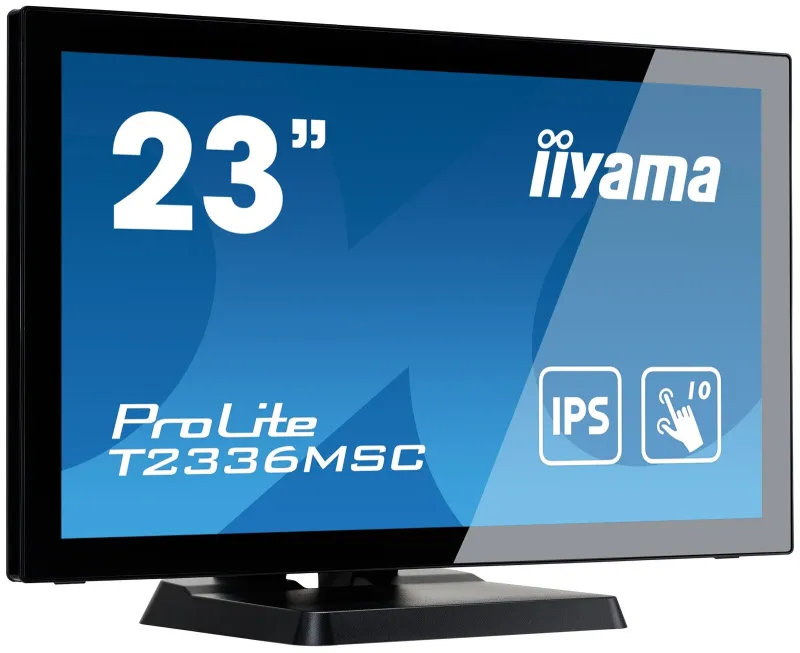

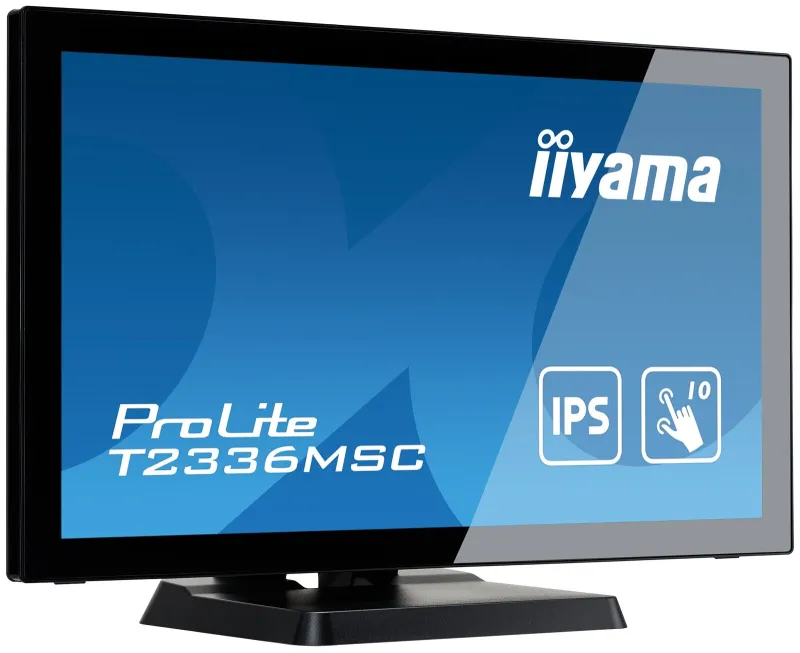

iiyama ProLite T2336MSC-B3 LED display 58.4 cm (23″) 1920 x 1080 pixels Full HD Touchscreen Black
- Touchscreen 58.4 cm (23″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 5 ms 250 cd/m² 1000:1
- E 17 kWh 16 W
23″ 10 point touch monitor with edge-to-edge glass and IPS panel
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with exceptional colour reproduction and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles, creating a comfortable and ergonomic user experience.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
| Display |
| Display diagonal (metric) |
58.4 cm |
| Viewable size, vertical |
28.6 cm |
| Viewable size, horizontal |
50.9 cm |
| Horizontal scan range |
30 – 80 kHz |
| Pixel pitch |
0.2652 x 0.2652 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
5000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
5 ms |
| Display brightness (typical) |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
58.4 cm (23″) |
| Performance |
| Low Blue Light technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Home |
| Ports & interfaces |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| Plug and Play |
Yes |
| Number of OSD languages |
9 |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
5 – 90° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1235493 |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
16 W |
| Energy consumption (HDR) per 1000 hours |
0 kWh |
| Energy consumption (SDR) per 1000 hours |
17 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
| Weight (with stand) |
6.3 kg |
| Height (with stand) |
379 mm |
| Depth (with stand) |
254 mm |
| Width (with stand) |
561 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC, HDMI, USB |
| Stand included |
Yes |
| General |
| Product family |
ProLite |
