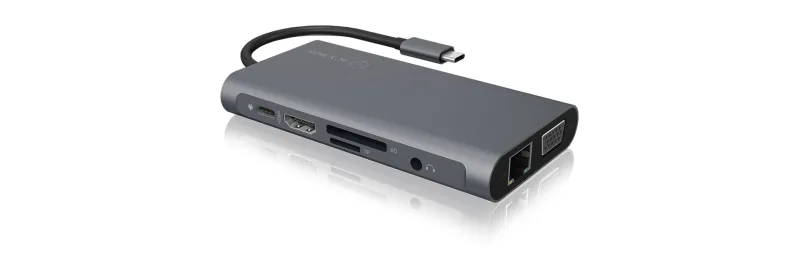

ICY BOX IB-DK4040-CPD Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Anthracite, Black
- MORE CONNECTIONS: The 10-in-1 USB Type-C docking station adds USB-C, 3x USB-A 3.0, HDMI, VGA, SD/microSD card reader, 3.5 mm audio combo jack and Gigabit LAN to your notebook or PC
- WORK EFFECTIVELY: Mirror your display on two additional monitors. Possible resolution when connected via HDMI up to 3840×2160/30 Hz, with VGA up to 1920×1080@60 Hz
- FAST: The USB 3.0 ports of the docking station enable data transfer rates of up to 5 Gbps. With the LAN (RJ45) interface, you can also surf the Internet at high speed
- FULLY CHARGED: Thanks to Power Delivery, connected devices are charged with up to 100 W via an optionally available USB-C charger. This ensures that you always have enough power
- SOUNDS GOOD: Headphones, headset or microphone are connected via the 3.5 mm audio combo jack. Good sound is guaranteed in all situations
Easy connection – multiple benefits
Perfectly combines a high-quality appearance and efficient technology with a very compact size. The premium aluminum DockingStation does not only look good but also offers high comfort while using. This solution is suited for any location such as private or office areas.
Small but strong
The Type-C™ connection offers incredible versatility. It combines data transmission, video output and power in a single, compact port. The integration of USB Type-C™ makes the connection even more practical, as it has a twist-proof connection as its physical feature – making it a truly universal connection.
Always informed
The IB-DK4040-CPD provides two different video interfaces and enables you to connect an HDMI® and VGA device simultaneously in mirror mode.
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| Microphone in |
No |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
| Country of origin |
China |
| UASP support |
Yes |
| Housing material |
Aluminium, Plastic |
| Number of displays supported |
2 |
| Maximum refresh rate |
60 Hz |
| Maximum analog resolution |
1920 x 1200 pixels |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
5 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Card reader integrated |
Yes |
| Product colour |
Anthracite, Black |
| Power |
| Power connector |
USB Type-C |
| Power source type |
USB |
| Software |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Weight |
164 g |
| Height |
17 mm |
| Depth |
60 mm |
| Width |
115 mm |
| Packaging data |
| Package weight |
176 g |
| Package height |
200 mm |
| Package depth |
25 mm |
| Package width |
100 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Manual |
Yes |
| Logistics data |
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case width |
330 mm |
| Master (outer) case length |
460 mm |
| Master (outer) case height |
280 mm |
| Harmonized System (HS) code |
84733020 |
| Master (outer) case gross weight |
10.7 kg |
| Other features |
| Cable length |
0.2 m |
