HuddleCamHD 10X-USB2 2.1 MP White 1920 x 1080 pixels 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8″)
- 2.1 MP CMOS 25.4 / 2.8 mm (1 / 2.8″)
- Full HD 1920 x 1080 pixels 30 fps
- Optical zoom: 10
- Remote control function
- White

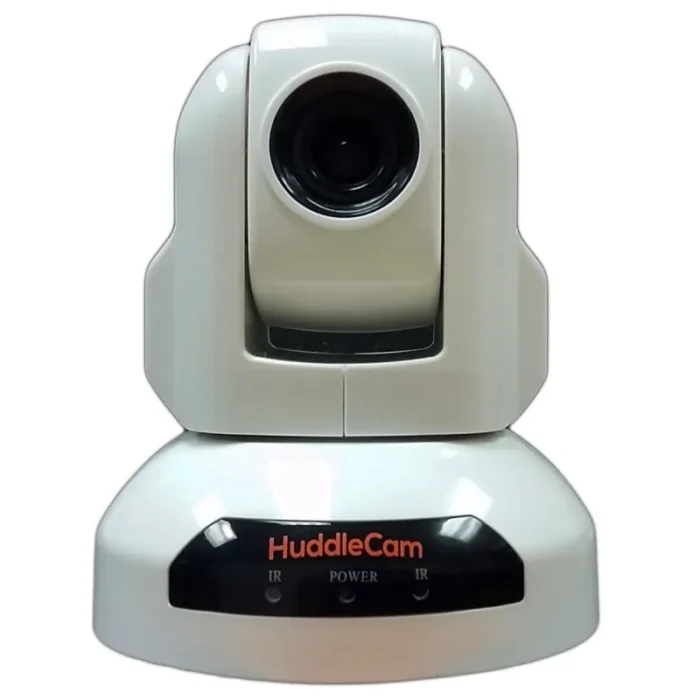

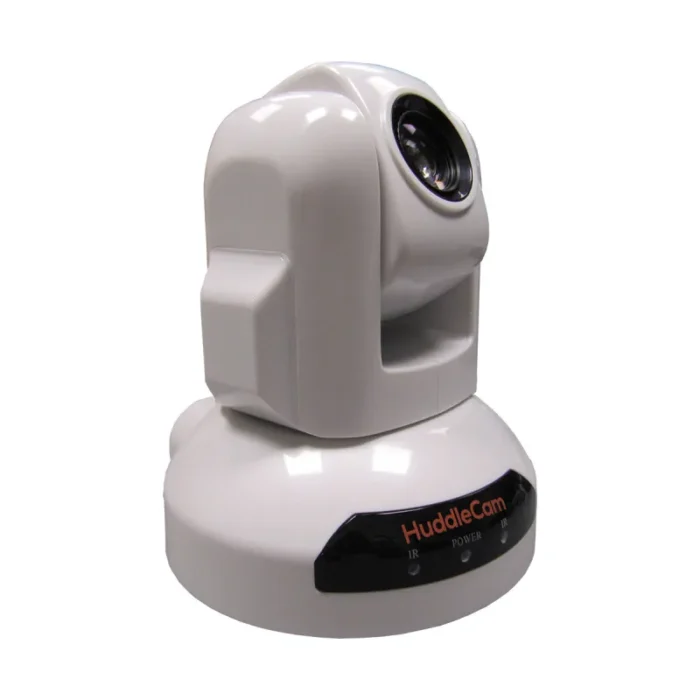

Introducing the 10X-USB2
Incredibly simple yet powerful video conferencing camera with 10X Optical Zoom for capturing all the action even at long distances in small to medium sized rooms.
Affordable Video Conferencing is Here
Designed with a wide variety of conferencing setups in mind, the HuddleCamHD 10X-USB2 is ideal for small to medium sized conference rooms using a Mac or PC computer with web-based video conferencing / live streaming software.
The ideal entry-level conferencing camera for small to medium sized rooms
HuddleCamHD cameras are the perfect cameras for professional video conferencing. Designed with a wide variety of conferencing setups in mind, there is a HuddleCamHD solution that will work for any situation. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.
Universally Compatible
All HuddleCamHD cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Skype, GoToMeeting, WebEX or Zoom. Enjoy seamless integration even with live streaming applications such as Facebook Live.
| Camera | |
|---|---|
| Number of camera presets | 64 |
| Horizontal field of view (wide) | 57° |
| Horizontal field of view (tele) | 7° |
| Focal length range | 4.7 – 47 mm |
| Optical zoom | 10x |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Megapixel (approx.) | 2.1 MP |
| Video | |
|---|---|
| Baud rate | 9.6 Kbit/s |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Resolution at capture speed | 1920×1080@30fps |
| HD type | Full HD |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1080 pixels |
| Design | |
|---|---|
| Pan range | 0 – 340° |
| Tilt angle range | -90 – 30° |
| Mounting type | Stand |
| Product colour | White |

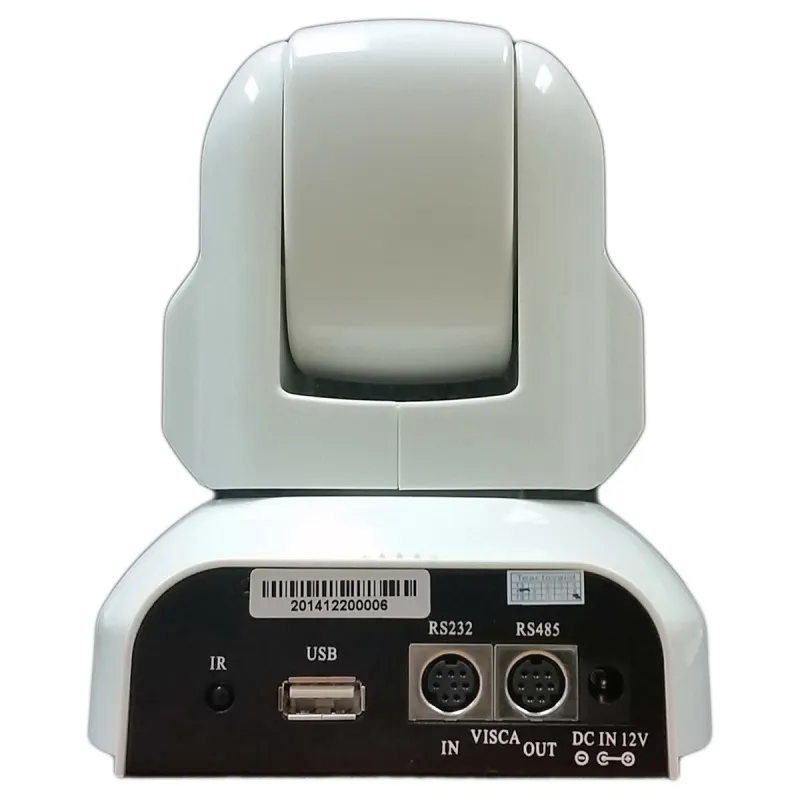

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RS-485 ports | 1 |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| Input current | 2 A |
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 45 °C |
| Packaging content | |
|---|---|
| Control adapter | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| USB cable length | 4.8 m |
| Cables included | Serial, USB |
| Remote control included | Yes |
| Power supply included | Yes |
| Performance | |
|---|---|
| Plug and Play | Yes |
| Remote control function | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Height | 145 mm |
| Depth | 120 mm |
| Width | 124 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.66 kg |
| Package height | 225 mm |
| Package depth | 178 mm |
| Package width | 222 mm |
