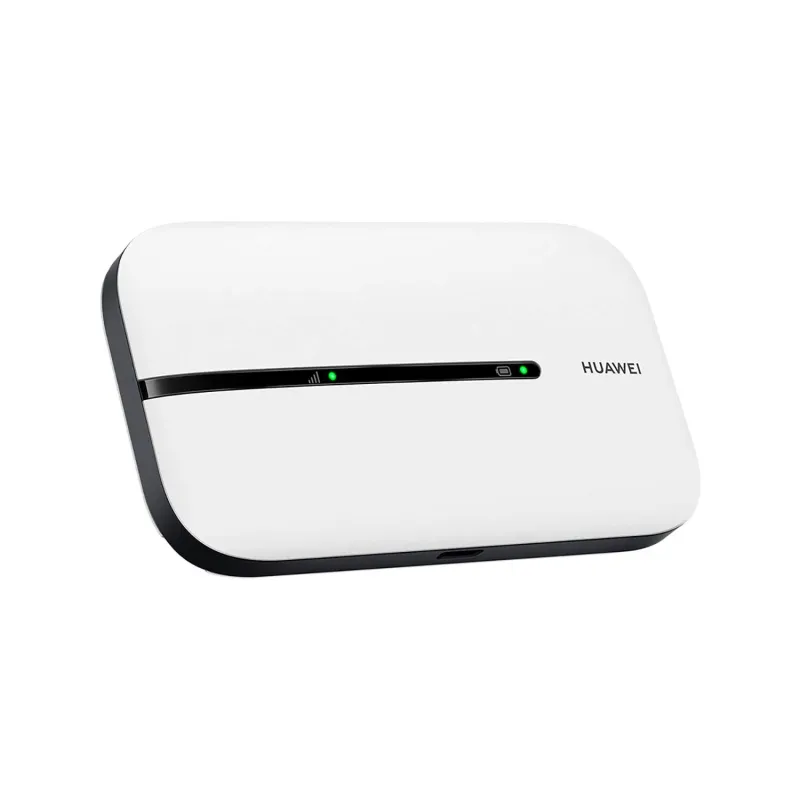

Huawei E5576-320 Cellular wireless network equipment
- Portable Cellular wireless network equipment
- Wi-Fi
- 3G standards: UMTS
- 4G standard: LTE-FDD
- Antenna type: Internal
- White
| Design |
| LED indicators |
LTE, Status |
| Reset button |
Yes |
| Market positioning |
Portable |
| Mounting |
Wall mounting |
| Housing material |
Plastic |
| Product colour |
White |
| Device type |
Cellular wireless network equipment |
| Ethernet LAN features |
| DHCP server |
Yes |
| Ethernet LAN interface type |
Not available |
| Ethernet LAN |
No |
| Wireless LAN features |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Mobile network |
| Short Message Service (SMS) |
Yes |
| Number of SIM cards |
1 |
| UMTS bands supported |
900,2100 MHz |
| 4G bands supported |
700,800,900,1800,2100,2600 MHz |
| 4G standard |
LTE-FDD |
| 3G standards |
UMTS |
| Data network |
3G, 4G |
| Ports & interfaces |
| USB port |
Yes |
| Security |
| DMZ support |
Yes |
| IP address filtering |
Yes |
| Network address translation (NAT) |
Yes |
| Security algorithms |
SSID, WEP, WPA, WPA2-PSK |
| Packaging content |
| Cables included |
USB |
| Performance |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks |
| Antenna type |
Internal |
| Power |
| Battery voltage |
3.8 V |
| Battery capacity |
1500 mAh |
| Output current |
1 A |
| Output voltage |
5 V |
| AC input voltage |
100 – 240 V |
| Power source type |
Battery |
| Operational conditions |
| Operating temperature (T-T) |
0 – 35 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
5 – 95% |
| Weight & dimensions |
| Weight |
71 g |
| Height |
14 mm |
| Depth |
58 mm |
| Width |
100 mm |
| Packaging data |
| Package weight |
117 g |
| Package height |
38 mm |
| Package depth |
74 mm |
| Package width |
112 mm |
