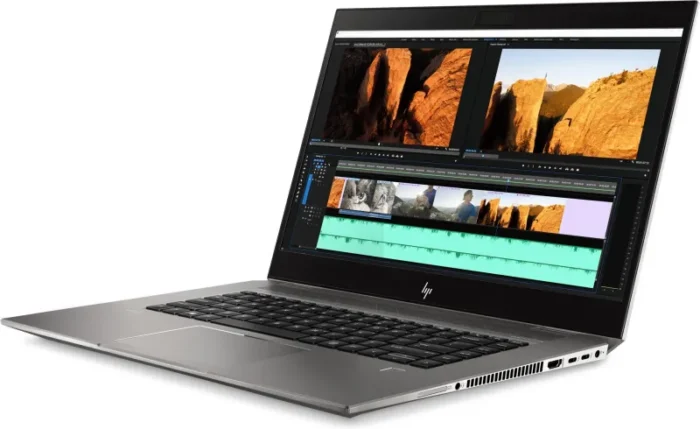

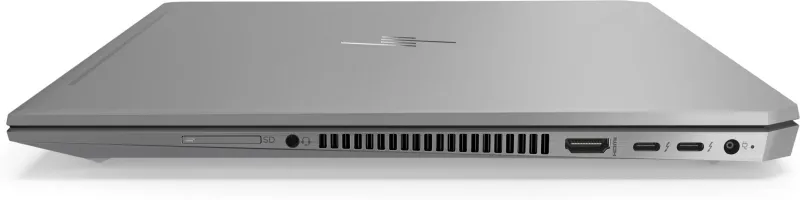

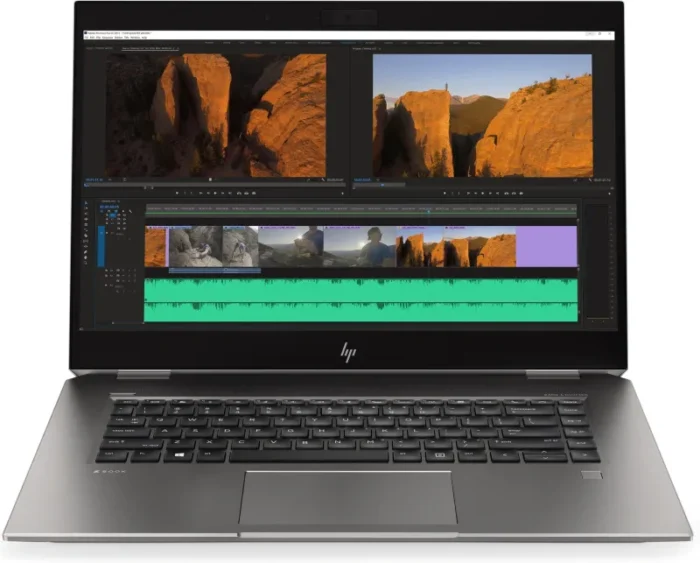

HP ZBook Studio G5 Intel® Core™ i7 i7-9850H Mobile workstation 39.6 cm (15.6″) 4K Ultra HD 32 GB DDR4-SDRAM 1 TB SSD NVIDIA Quadro T2000 Wi-Fi 5 (802.11ac) Windows 10 Home Silver
- Business Mobile workstation Clamshell Silver
- Intel® Core™ i7 i7-9850H 2.6 GHz
- 39.6 cm (15.6″) 4K Ultra HD 3840 x 2160 pixels IPS LED backlight 16:9
- 32 GB DDR4-SDRAM 2666 MHz 2 x 16 GB
- 1 TB SSD
- NVIDIA Quadro T2000 4 GB Intel® UHD Graphics 630
- Wi-Fi 5 (802.11ac) Bluetooth 5.0
- Lithium Polymer (LiPo) 95.6 Wh 150 W
- Windows 10 Home 64-bit
| Design | |
|---|---|
| Country of origin | China |
| Market positioning | Business |
| Form factor | Clamshell |
| Product colour | Silver |
| Product type | Mobile workstation |
| Display | |
|---|---|
| Display diagonal (metric) | 39.6 cm |
| RGB colour space | Adobe RGB |
| Colour gamut | 100% |
| Display brightness | 600 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| LED backlight | Yes |
| Panel type | IPS |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Display resolution | 3840 x 2160 pixels |
| Display diagonal | 39.6 cm (15.6″) |
| Processor | |
|---|---|
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1×16, 2×8, 1×8+2×4 |
| Tjunction | 100 °C |
| Configurable TDP-down | 35 W |
| Thermal Design Power (TDP) | 45 W |
| Processor codename | Coffee Lake |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor socket | BGA 1440 |
| Processor cache type | L3 |
| Processor cache | 12 MB |
| System bus rate | 8 GT/s |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor threads | 12 |
| Processor cores | 6 |
| Processor model | i7-9850H |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD interface | NVMe |
| NVMe | Yes |
| SSD memory type | TLC |
| SSD capacity | 1 TB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 1 TB |
| Storage media | SSD |
| Total storage capacity | 1 TB |
| Graphics | |
|---|---|
| On-board graphics card ID | 0x3E9B |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Discrete graphics memory type | GDDR5 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics card model | NVIDIA Quadro T2000 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Audio system | Bang & Olufsen |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Front camera HD type | HD |
| Front camera signal format | 720p |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | No |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2×2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| Thunderbolt 3 ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Motherboard chipset | Intel® CM246 |
| Keyboard | |
|---|---|
| Full-size keyboard | Yes |
| Spill-resistant keyboard | Yes |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Drivers included | Yes |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Home |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 42 x 28 mm |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| Processor ARK ID | 191047 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Idle States | Yes |
| Brand-specific features | |
|---|---|
| HP segment | Business |
| HP Security tools | HP Device Access Manager; HP Fingerabdrucksensor; HP Password Manager; HP Power On Authentication; HP Security Manager; Pre-Boot-Authentifizierung; HP Sure Click; Measured Boot; HP BIOS Config Utility (BCU); HP Client Catalog; HP Driver Packs; HP System Software Manager (SSM); HP Manageability Integration Kit Gen2; HP BIOSphere mit Sure Start Gen4; HP Secure Disk Erase; HP Host-basierte Mac-Adresse |
| HP speaker type | HP Dual Speakers |
| Battery | |
|---|---|
| Battery capacity | 95.6 Wh |
| Number of battery cells | 6 |
| Battery technology | Lithium Polymer (LiPo) |
| Power | |
|---|---|
| DC-in jack | Yes |
| AC adapter power | 150 W |
| Security | |
|---|---|
| Cable lock slot | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Height (rear) | 1.74 cm |
| Height (front) | 8.8 mm |
| Depth | 254 mm |
| Width | 360 mm |
| Weight | 2 kg |
| General | |
|---|---|
| Product family | ZBook Studio |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
