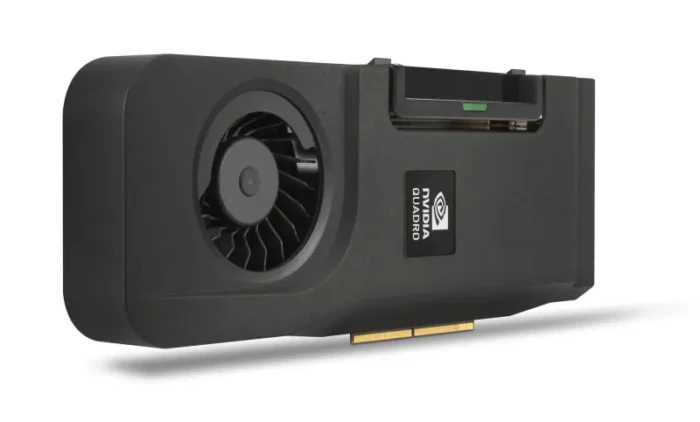

HP E5Z75AA graphics card NVIDIA Quadro K2100M 2 GB GDDR5
- NVIDIA Quadro K2100M 2 GB GDDR5
- 3840 x 2160 pixels 128 bit 3000 MHz PCI Express x16
- DisplayPorts quantity: 1
- DirectX version: 11.1 OpenGL version: 4.3
Deliver impressive graphics and multi-display performance with the NVIDIA Quadro K2100M graphics board. It’s an excellent choice for medium complexity designs and models in professional CAD, Media & Entertainment, and visualization applications.
Features
– Easily support your professional software application base with comprehensive ISV certifications. Get outstanding performance from the ultra-efficient Kepler GPU architecture and 2 GB of fast GDDR5 memory.
– Maximize your productivity by driving up to four digital displays from a single card and managing them with NVIDIA’s Mosaic and nView technology.
– Get support for the latest graphics APIs including OpenGL 4.3 and CUDA 5.0. Windows 8 compliance helps ensure simplified deployment in the newest Windows installations.
– Rest assured with a graphics card designed to the MXM v3.1 Type A specification for compatibility with the HP Z1 G2 Workstation.
| Processor |
| Stream processors |
576 |
| CUDA |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Graphics processor |
Quadro K2100M |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bandwidth (max) |
48 GB/s |
| Memory clock speed |
3000 MHz |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR5 |
| Discrete graphics card memory |
2 GB |
| Ports & interfaces |
| DisplayPorts quantity |
1 |
| Interface type |
PCI Express x16 |
| Performance |
| OpenGL version |
4.3 |
| Shader model version |
5.0 |
| DirectX version |
11.1 |
| TV tuner integrated |
No |
| PhysX |
No |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Height |
82 mm |
| Depth |
70 mm |
| Other features |
| Graphics card interface |
MXM v3.1 Typ A (82 mm x 70 mm) |
