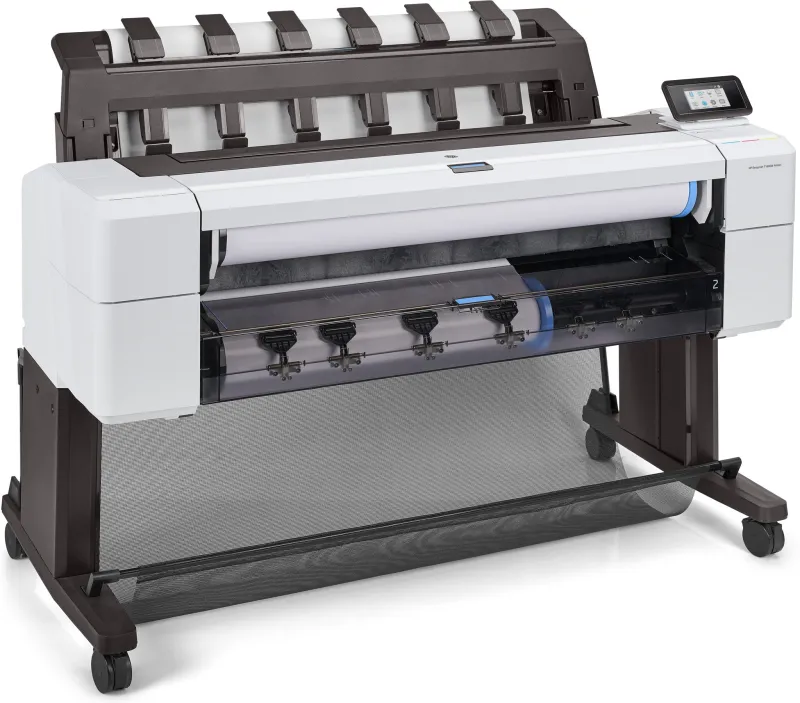

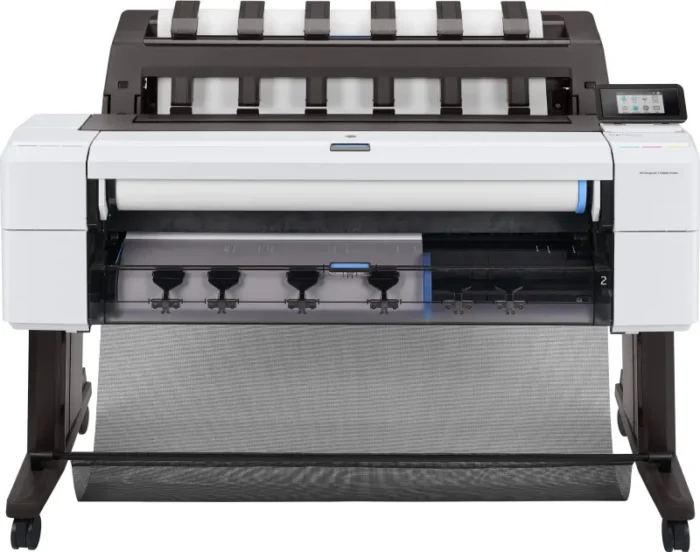

HP Designjet T1600dr 36-in PostScript Printer
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print speed (normal quality, A1) |
180 pph |
| Print head |
1 |
| Printing colours |
Cyan, Grey, Magenta, Matte black, Photo black, Yellow |
| Page description languages |
PDF 1.7, PostScript 3, TIFF, HP-GL/2, HP-RTL, JPEG, CALS G4 |
| Number of print cartridges |
6 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Input & output capacity |
| Total input capacity |
100 sheets |
| Paper handling |
| Roll paper |
Yes |
| Roll top margin |
3 mm |
| ISO A-series sizes (A0…A9) |
A0, A1, A2, A3, A4 |
| Paper tray media types |
Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Satin paper, Semi-glossy paper |
| Maximum print size |
A0 (841 x 1189 mm) |
| Ports & interfaces |
| Mobile printing technologies |
HP ePrint |
| Wi-Fi Direct |
Yes |
| USB port |
No |
| Ethernet LAN |
Yes |
| Performance |
| Certification |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
| Sound pressure level (printing) |
42 dB |
| Storage media |
HDD |
| Internal storage capacity |
500 GB |
| Internal memory |
128000 MB |
| Brand-specific features |
| HP dynamic security |
Yes |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (PowerSave) |
100 W |
| Power consumption (off) |
0.3 W |
| Power consumption (sleep) |
10 W |
| Operational conditions |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 35 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
85 kg |
| Height |
1080 mm |
| Depth |
760 mm |
| Width |
1390 mm |
| Packaging data |
| Bundled software |
HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional) |
| Manual |
Yes |
| Package weight |
117 kg |
| Package height |
800 mm |
| Package depth |
767 mm |
| Package width |
1477 mm |
| General |
| Product family |
Designjet |
