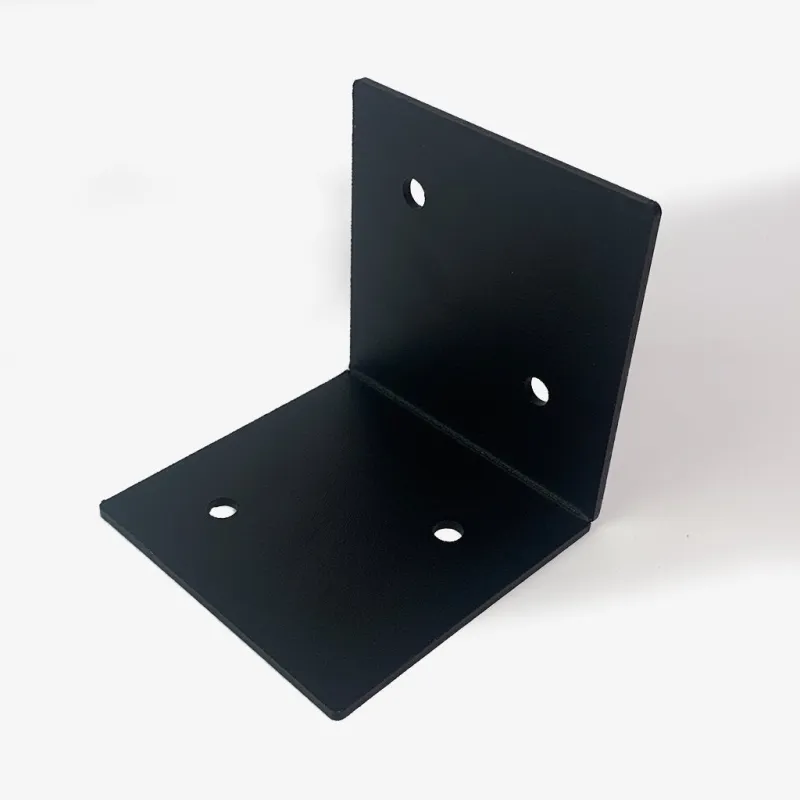

Framola™ Pergola Internal Corner L-Bracket
Framola™ Pergola Internal Corner L-Bracket
The Framola system is designed to make the construction and installation of Pergolas and Garden Structures as simple as possible. These Internal L-Shaped Corner Brackets are designed to strengthen the joins between pieces of timber. Install them on the inside of corners to strengthen the join between the two pieces of timber.
We offer 3 different sizes, with one for 3″/75mm timber or wood posts, one for 4”/100mm timber or wood posts and one for 6”/150mm posts. It is essential that you choose the right size for your fence posts, as the bracket may overhang the edges of the timber, or may not offer enough strength.
The Corner Bracket features 4 carefully positioned, “staggered” screw holes to allow the screws not to collide when installing with other parts of the Framola kit. Each screw hole is 7.5mm wide to comfortably allow for timber railway sleeper screws to be used.
As with other Framola products, this one comes with a textured black finish, which is both pleasing in appearance, as well as helping the outer of the bracket remain durable and hard-wearing. The bracket itself is made using 2.5mm Heavy Duty Galvanised Steel, which will remain rust-free forever, even in the event of the coating being damaged.
Getting the right kit:
To get the right Framola kit for the size of wood you are using, please select from the options “Suitable for”, this will allow you to select between 3″x3″ (75mm x 75mm), 4″x4″ (100mm x 100mm) posts or 6“x6” (150mm x 150mm) posts.
Key Features:
- Single bracket provided.
- Crafted from 2.5mm Thick Heavy Duty British Steel
- Coated in a textured black coating, for a durable, hard-wearing finish which looks great.
- Features 4 screw holes, each measuring 7.5mm in diameter to allow you to use Timber Sleeper Screws for installation.
- Manufactured in the United Kingdom using British-Sourced Materials.
- Simple and easy to install, place along the corner join of the pergola and simply screw to the wood.
- 2 sizes available to ensure the right bracket for your wood.
Dimensions
- 3″ / 75mm Posts
- Width: 75mm
- Height: 75mm
- Depth: 75mm
- 4″ / 100mm Posts
- Width: 100mm
- Height: 100mm
- Depth: 100mm
- 6″ / 150mm Posts
- Width: 150mm
- Height: 150mm
- Depth: 144mm
Going for a custom colour?
Choose from our selection of RAL colours for a totally custom bracket, match your home or garden. Please make sure to leave us a note in your order comments to state which colour you would like, we have included a chart in the product images to help you select. Please allow up to 3 days for colours other than black
Installation Tips

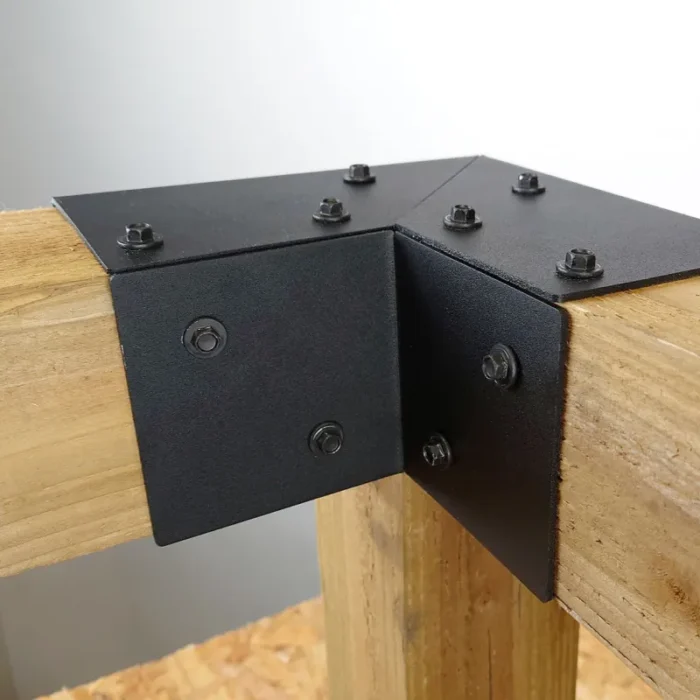

- Ensure that the bracket is pressed firmly against both pieces of timber at the 90° bend.
- Screw the bracket into both pieces of wood and tighten the screws for a secure installation.
You will receive:
- 1 x Framola Pergola Internal Corner Brace L-Bracket.
Please note:
- We have tested Framola brackets to work up to lengths of 3m wood when using 6″ posts, we cannot guarantee the Framola brackets will work with any longer lengths.
