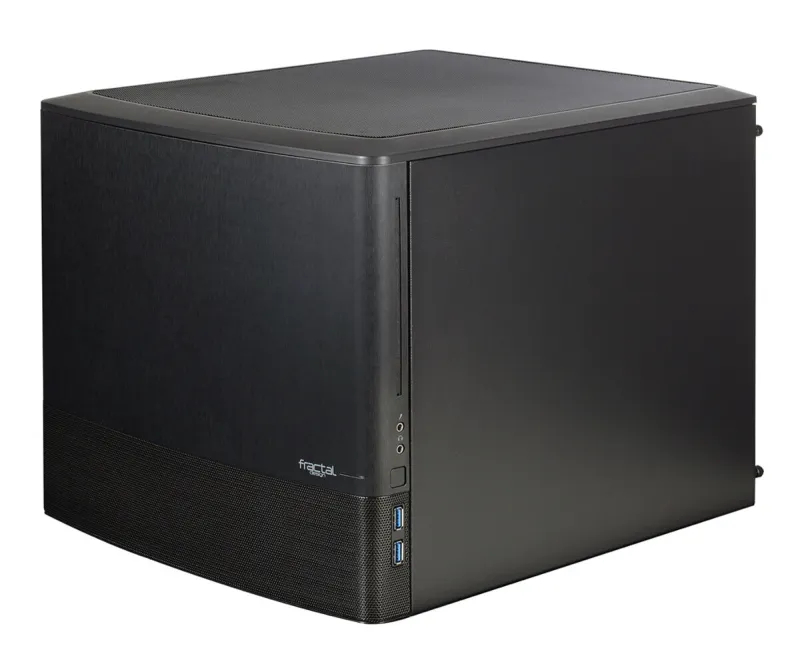

Fractal Design Node 804 Cube Black
- Highly effective dual chamber case layout for best possible cooling with excellent water cooling compatibility, supporting up to four radiators simultaneously
- Minimalistic design with an elegant brushed aluminum front panel
- Unique hard drive mounting system, fitting up to 8x 3.5″, 4x 2.5” or up to 10x 3.5”, 2x 2.5″ drives HDD/SSD
- Three Fractal Design Silent Series R2 fans included with the case and space for an additional seven fans, fan controller included
- Featuring a window side panel to show off your set up in style
- Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2x 2.5″ drives
- Five expansion slots that allows for multiple GPU setups
The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.
The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.
The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.
Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The flexibility of this case really gives the users the possibility to create their optimal system build.
| Design |
| Maximum PSU length |
26 cm |
| Maximum graphics card length |
32 cm |
| Maximum CPU cooler height |
16 cm |
| LED indicators |
HDD, Power |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Illumination |
No |
| Side window |
Yes |
| Number of expansion slots |
5 |
| Number of internal 3.5″ bays |
10 |
| Number of 2.5″ bays |
2 |
| Number of 3.5″ bays |
10 |
| Supported motherboard form factors |
micro ATX, Mini-ATX |
| Product colour |
Black |
| Material |
Plastic, Steel |
| Type |
PC |
| Form factor |
Cube |
| Power supply |
| Power supply location |
Bottom |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Top radiator sizes supported |
240,280 mm |
| Top radiator installed |
No |
| Rear radiator installed |
No |
| Front radiator sizes supported |
240 mm |
| Front radiator installed |
No |
| Liquid cooling capability |
Yes |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
4 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
2 |
| Rear fans installed |
2x 120 mm |
| Front fans diameters supported |
120 mm |
| Number of front fans supported (max) |
4 |
| Front fans installed |
1x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| General |
| Product family |
Node |
| Packaging content |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
6 kg |
| Height |
307 mm |
| Depth |
389 mm |
| Width |
344 mm |
| Packaging data |
| Package weight |
7.7 kg |
| Package height |
468 mm |
| Package depth |
412 mm |
| Package width |
370 mm |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| Volume |
40.3 L |
- Node 804 – Designed to Adapt
