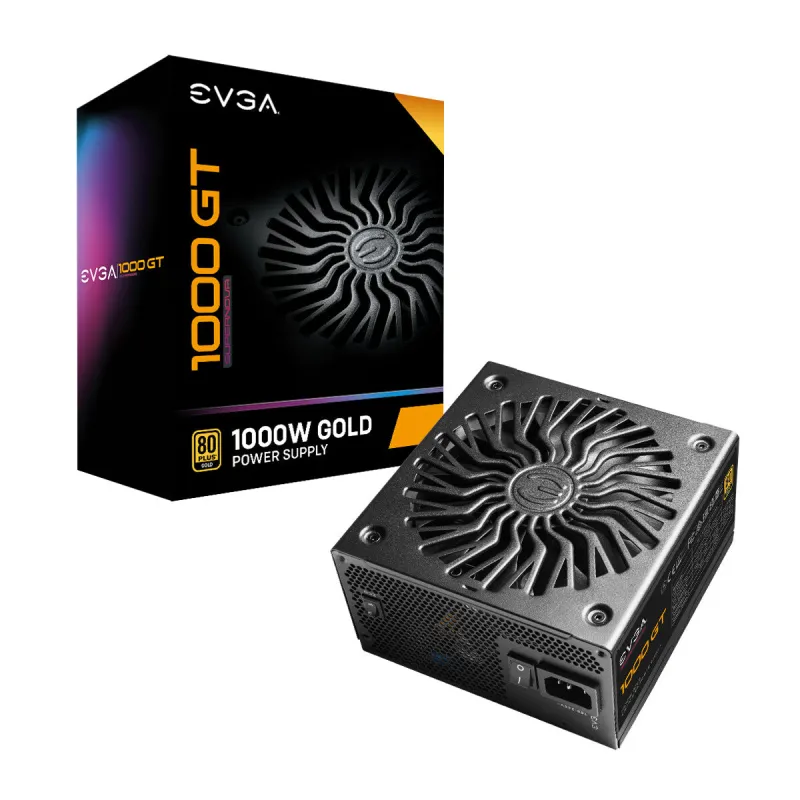

EVGA SuperNOVA 1000 GT power supply unit 1000 W 24-pin ATX ATX Black
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
Introducing the EVGA SuperNOVA GT Series of power supplies – the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA’s line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.
| Power |
| Power protection features |
Over power, Over voltage, Under voltage, Over current, Short circuit |
| Efficiency |
90% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
83.3 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
6 W |
| Combined power (+5V) |
130 W |
| Combined power (+12V) |
1000 W |
| Combined power (+3.3V) |
130 W |
| Input current |
6 – 12 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Total power |
1000 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| Floppy drive power connector |
1 |
| Floppy disk drive connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU power cable length |
70 cm |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
85 cm |
| PCI Express power connectors (6+2 pin) |
8 |
| EPS power connector (4+4 pin) |
Yes |
| Peripheral (Molex) power cable length |
550,650,750,850 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
550,650,750 mm |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 – 50 °C |
| Certificates |
| Certification |
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS |
| Packaging content |
| Cables included |

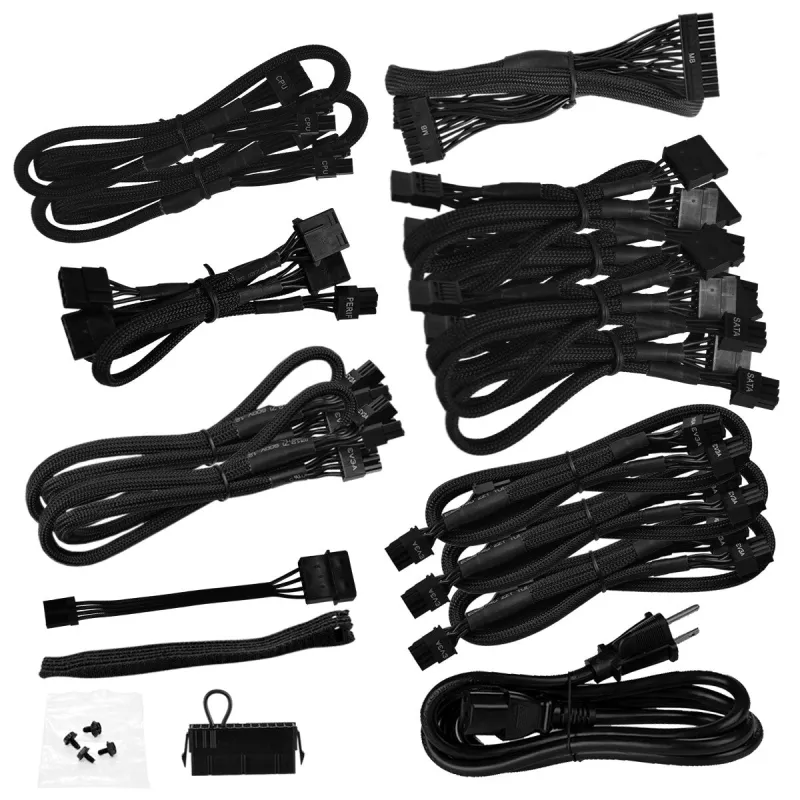

AC, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
| Weight |
4.08 kg |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
