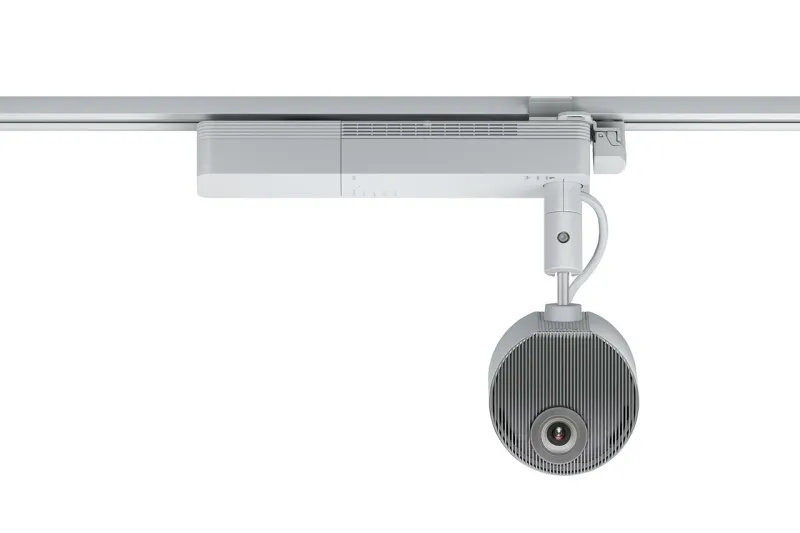

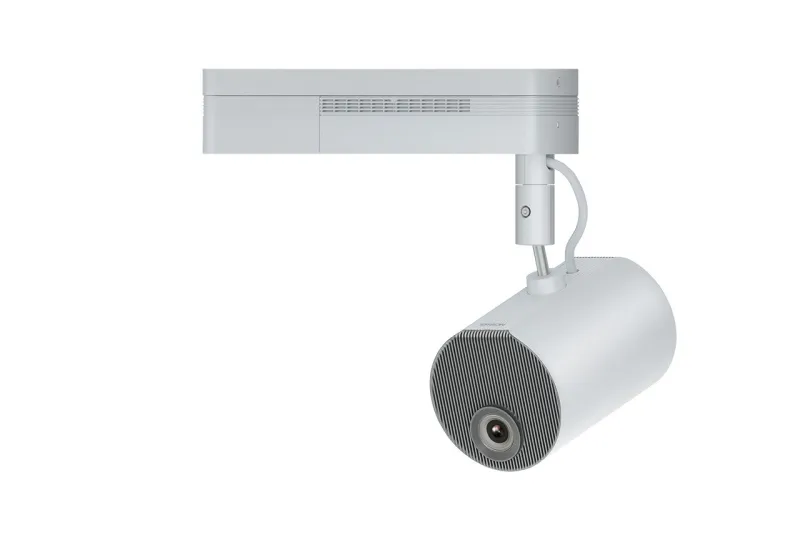

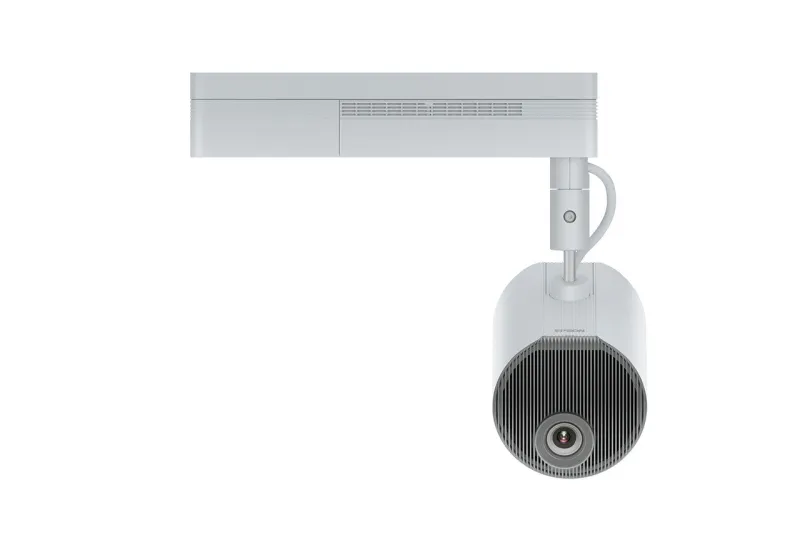

Epson LightScene EV-110 Standard throw projector 2200 ANSI lumens 3LCD WXGA (1280×800) White
- Business Standard throw projector White
- 3LCD 2200 ANSI lumens
- Laser 20000 h
- WXGA (1280×800) 16:10 2000:1
- Screen size compatibility: 762 – 3810 mm (30 – 150″) Number of colours: 16.78 million colours
- Focus: Manual Zoom capability
- Wi-Fi
- AC 149 W
| Projector | |
|---|---|
| Keystone correction, horizontal | -40 – 40° |
| Keystone correction, vertical | -45 – 45° |
| Matrix size | 1.5 cm (0.59″) |
| Projector brightness (economic mode) | 1100 ANSI lumens |
| Number of colours | 16.78 million colours |
| Projection distance (wide) | 0.9 – 4.5 m |
| Projection distance | 0.9 – 4.5 m |
| Screen size compatibility | 762 – 3810 mm (30 – 150″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2000:1 |
| Projector native resolution | WXGA (1280×800) |
| Projection technology | 3LCD |
| Projector brightness | 2200 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 1.38 – 2.19:1 |
| Zoom ratio | 1.58:1 |
| Zoom type | Auto |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.51 – 1.92 |
| Focal length range | 18.2 – 28.4 mm |
| Focus | Manual |
| Video | |
|---|---|
| 3D | No |
| Full HD | No |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Storage | |
|---|---|
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | China |
| Noise level (economic mode) | 22 dB |
| Noise level | 34 dB |
| Design | |
|---|---|
| Placement | Ceiling, Floor, Lighting track, Wall |
| Product colour | White |
| Market positioning | Business |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 112 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 149 W |
| Power source | AC |
| General | |
|---|---|
| Product family | LightScene |
| Software | |
|---|---|
| Software support | via: Crestron (Network), Crestron Integrated Partner, Crestron RoomView |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 40 °C |
| Weight & dimensions | |
|---|---|
| Power adapter height | 6.5 cm |
| Power adapter depth | 11 cm |
| Package weight | 9.43 kg |
| Power adapter width | 36.1 cm |
| Package height | 247 mm |
| Package depth | 530 mm |
| Package width | 471 mm |
| Height | 175 mm |
| Depth | 260 mm |
| Width | 175 mm |
| Weight | 5 kg |
| Packaging content | |
|---|---|
| Bundled software | Inhalt DIY-App, Epson Projektor Content Manager |
| Cables included | AC |
| Manual | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Products per pallet (UK) | 32 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
