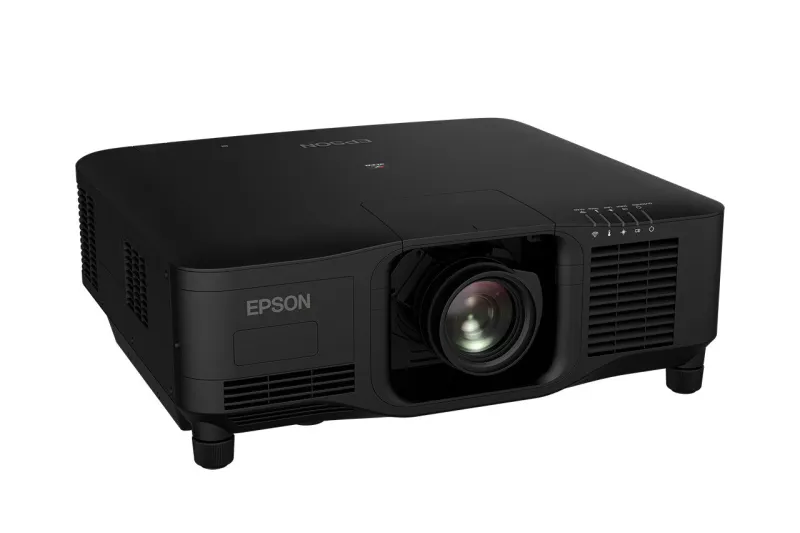

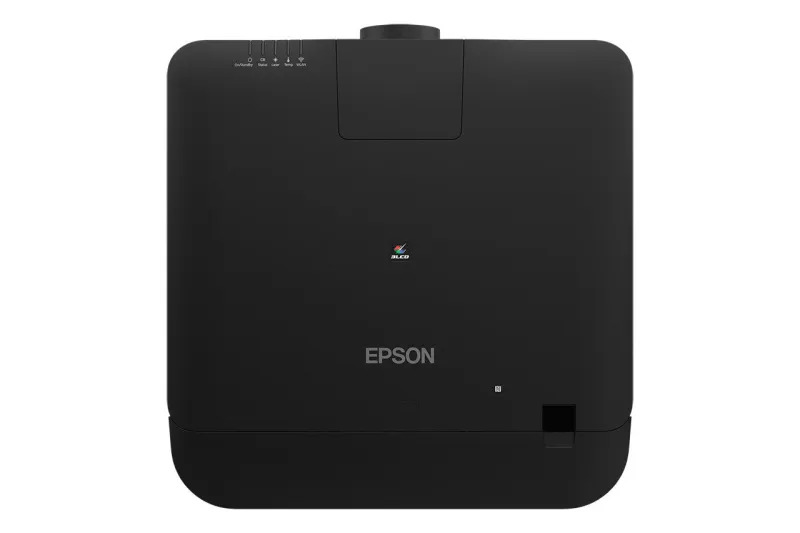

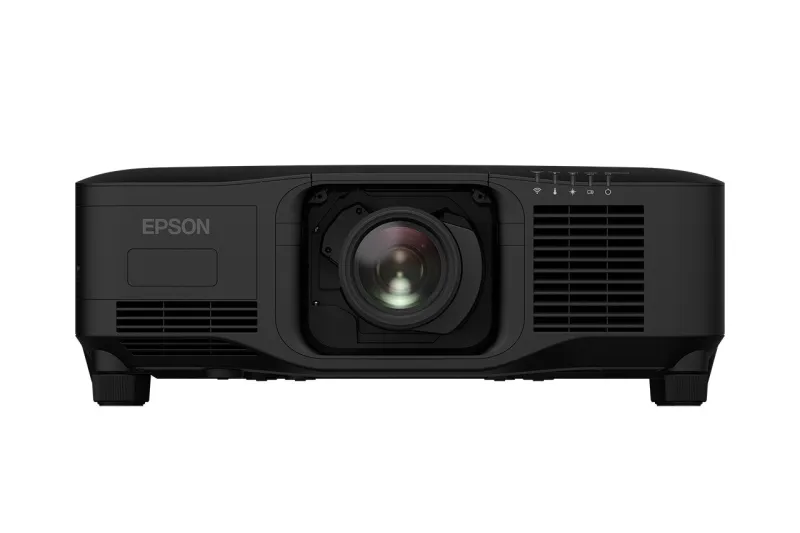

Epson EB-PU2220B Projector module 20000 ANSI lumens 3LCD WUXGA (1920×1200) Black
- Presentation Projector module Black
- 3LCD 20000 ANSI lumens
- Laser 20000 h
- WUXGA (1920×1200) 16:10 2000:1
- Screen size compatibility: 1524 – 25400 mm (60 – 1000″) Number of colours: 1.07 billion colours
- Focus: Motorized
- Ethernet LAN
- AC 1301 W
| Projector | |
|---|---|
| Heat dissipation | 4423 BTU/h |
| Matrix size | 2.62 cm (1.03″) |
| Projector brightness (economic mode) | 14000 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Screen size compatibility | 1524 – 25400 mm (60 – 1000″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 20000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Interchangeable lens | Yes |
| Lens position memory | 10 |
| Throw ratio | 0.35 – 7.41:1 |
| Zoom ratio | 1.6:1 |
| Zoom type | Auto |
| Focus | Motorized |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| 3D | No |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Headphone outputs | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| HDBaseT port | Yes |
| DVI port | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | China |
| Noise level (economic mode) | 38 dB |
| Noise level | 45 dB |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Flying frame |
| Product colour | Black |
| Market positioning | Presentation |
| Product type | Projector module |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 200-240 V |
| Power consumption (economy mode) | 899 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 1301 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 30.8 kg |
| Package height | 335 mm |
| Package depth | 790 mm |
| Package width | 715 mm |
| Height | 218 mm |
| Depth | 492 mm |
| Width | 586 mm |
| Weight | 24.4 kg |
| Packaging content | |
|---|---|
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| Warranty card | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Products per pallet | 4 pc(s) |
| Products per pallet (UK) | 4 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
