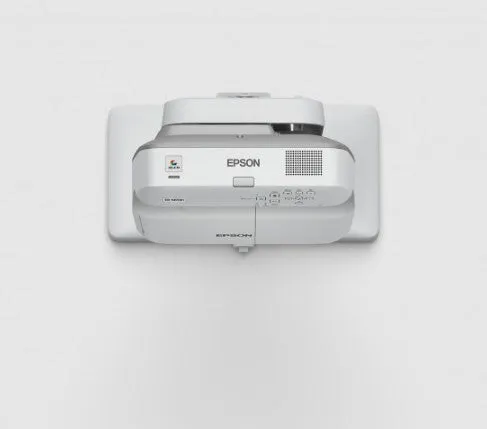

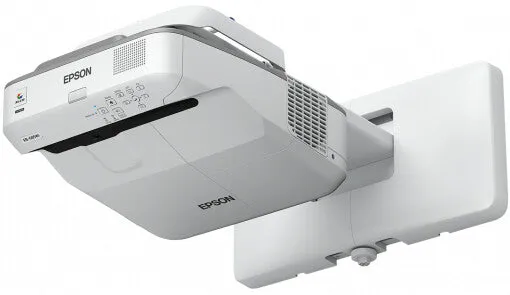

Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280×800) Grey, White
- Ultra short throw projector Grey, White
- 3LCD 3500 ANSI lumens
- Lamp 5000 h
- WXGA (1280×800) 16:10 300:1
- Screen size compatibility: 1524 – 2540 mm (60 – 100″) Number of colours: 1.073 billion colours
- Focus: Manual Zoom capability
- Ethernet LAN
- Built-in speaker(s) 16 W
- AC 354 W
HD-ready classroom projector
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
-Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
| Projector | |
|---|---|
| Keystone correction, horizontal | ±3° |
| Keystone correction, vertical | ±3° |
| Matrix size | 1.5 cm (0.59″) |
| Projector brightness (economic mode) | 2900 ANSI lumens |
| Number of colours | 1.073 billion colours |
| Contrast ratio (dynamic) | 14000:1 |
| Projection distance (tele) | 0 – 0.6 m |
| Projection distance (wide) | 0 – 0.4 m |
| Projection distance | 0.4 – 0.6 m |
| Screen size compatibility | 1524 – 2540 mm (60 – 100″) |
| Supported aspect ratios | 16:10 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 300:1 |
| Projector native resolution | WXGA (1280×800) |
| Projection technology | 3LCD |
| Projector brightness | 3500 ANSI lumens |
| Light source | |
|---|---|
| Lamp power | 250 W |
| Service life of light source (economic mode) | 10000 h |
| Service life of light source | 5000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Digital zoom | 1.35x |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Focal length range | 0 – 3.76 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| 3D | No |
| HD-Ready | Yes |
| Full HD | No |

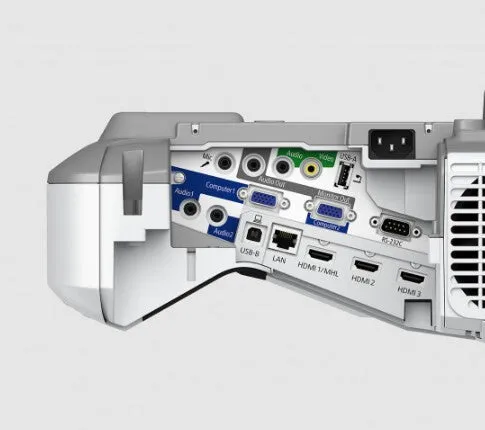

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| USB connector type | USB Type-A, USB Type-B |
| Serial interface type | RS-232 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Audio (L/R) in | 1 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| HDMI ports quantity | 3 |
| VGA (D-Sub) ports quantity | 3 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | Philippines |
| Air filter | Yes |
| On Screen Display (OSD) | Yes |
| Noise level (economic mode) | 28 dB |
| Noise level | 35 dB |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Wall |
| Product colour | Grey, White |
| Product type | Ultra short throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 220 – 240 V |
| Power consumption (PowerSave) | 310 W |
| Power consumption (standby) | 0.39 W |
| Power consumption (typical) | 354 W |
| Power source | AC |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 18.5 kg |
| Package height | 335 mm |
| Package depth | 730 mm |
| Package width | 490 mm |
| Height | 149 mm |
| Depth | 400 mm |
| Width | 367 mm |
| Weight | 5.7 kg |
| Packaging content | |
|---|---|
| Bundled software | EasyMP Monitor, EasyMP Multi PC Projection |
| Cables included | USB |
| Manual | Yes |
| Batteries included | Yes |
| Remote control type | IR |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Products per pallet | 12 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 141 cm |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 141 cm |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| RS-232 ports | 1 |
