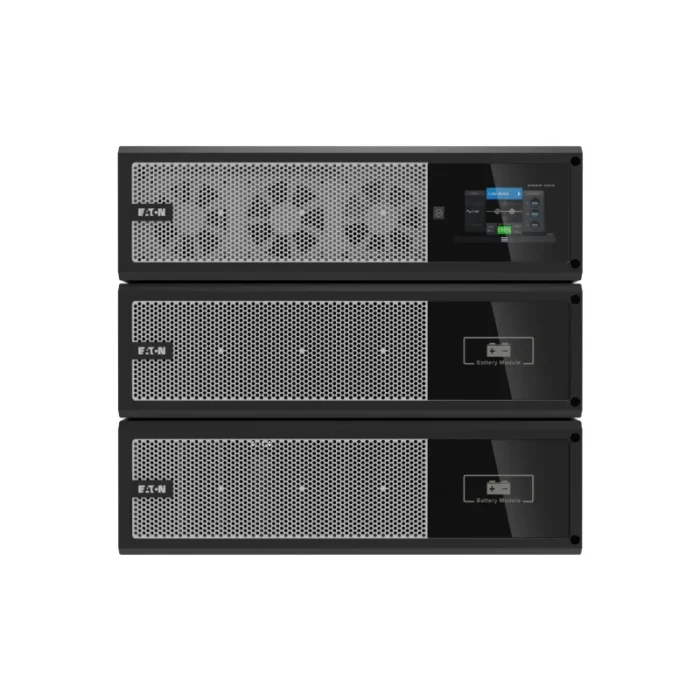

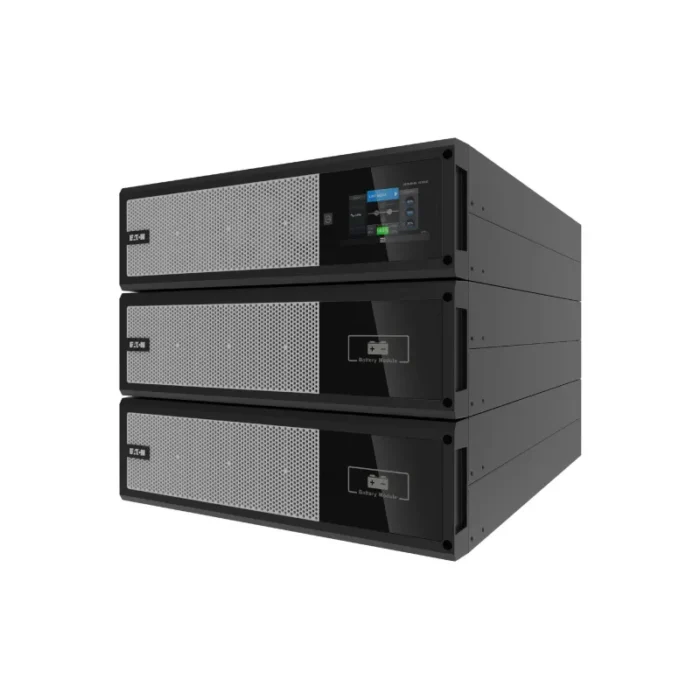

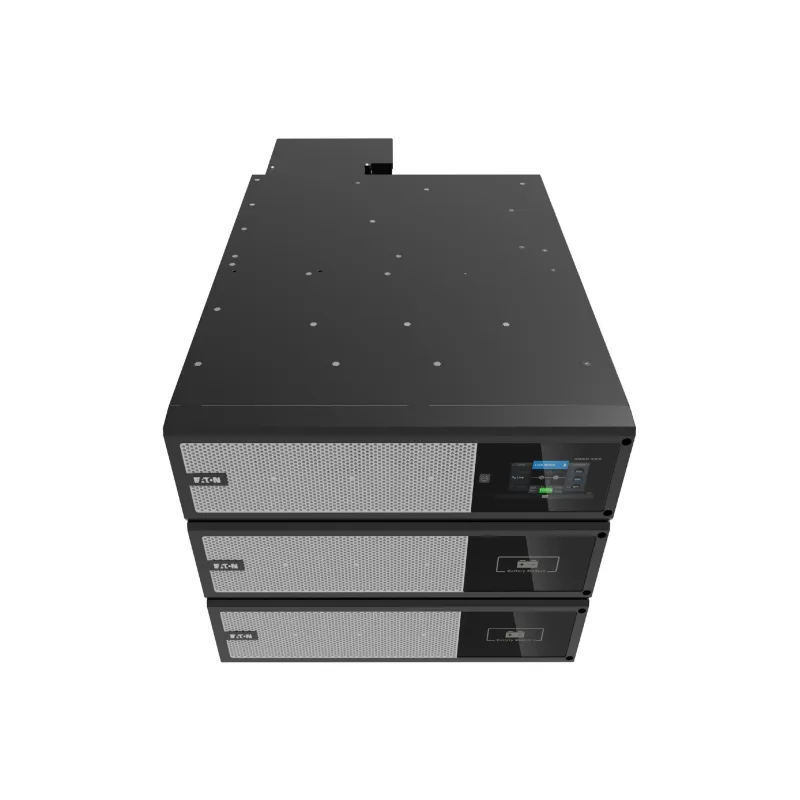

Eaton 93PX uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
- Double-conversion (Online)
- 20 kVA 20000 W
- Sealed Lead Acid (VRLA)
- Tower Black
Eaton 93PX 20 kW RT9U Netpack. Includes 15 kW PM, 1 set of EBM, Network card and rail kits.
| Features |
| Auto shut-off |
Yes |
| Potential-free output |
Yes |
| Audible alarm(s) |
Yes |
| Input current Total Harmonic Distortion (THD) |
1% |
| ECO mode |
Yes |
| Efficiency (ECO mode) |
99% |
| Efficiency (On-line mode) |
99% |
| Efficiency |
0.96% |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
415 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
415 V |
| Input operation voltage (min) |
220 V |
| Output power |
20000 W |
| Output power capacity |
20 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| Battery |
| Hot-swap battery |
No |
| Typical backup time at half load |
0 min |
| Typical backup time at full load |
0 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Display type |
LCD |
| Modular |
Yes |
| Rack capacity |
9U |
| Product colour |
Black |
| Form factor |
Tower |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Certificates |
| Certification |
IEC/EN 62040-2IEC/EN 62040-1EN 62040-3 |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
| Weight |
157.9 kg |
| Height |
128 mm |
| Depth |
820 mm |
| Width |
600 mm |
| Other features |
| Output connection type |
Fixed |
| Input connection type |
Fixed |
