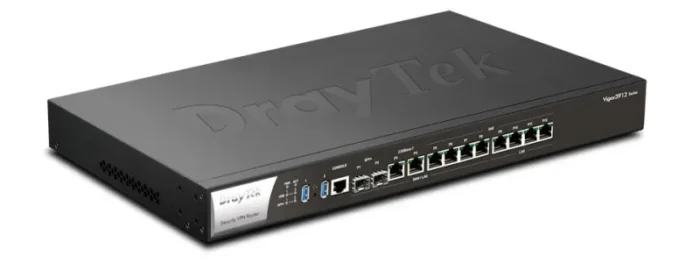

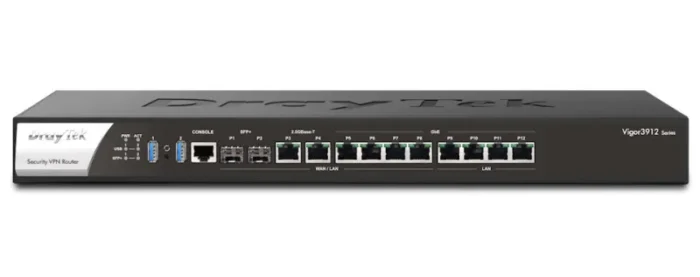

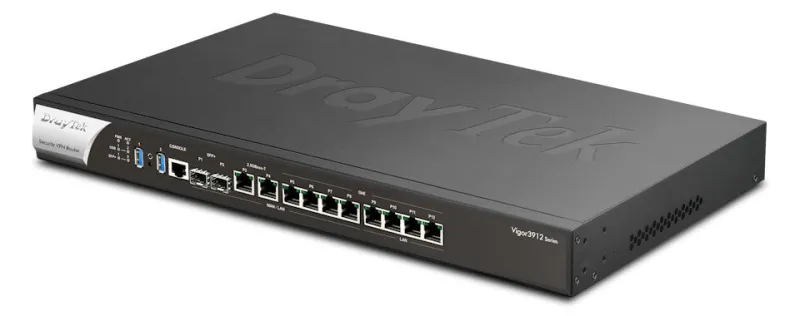

DrayTek Vigor 3912 VPN Enterprise Router
- Multi-WAN Router with over 12Gbps NAT Throughput
- 8x WAN/LAN Switchable Ports & 4x fixed Ethernet LAN Ports
- 2x 10GbE SFP+ and 2x 2.5GbE for WAN/LAN
- Up to 5Gbps Total IPsec VPN Throughput
- Up to 3.5Gbps Total SSL VPN Throughput
- 500 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 200 DrayTek SSL VPN or OpenVPN Tunnels
- Up to 100 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS central management platform
The DrayTek Vigor 3912 series is a premium next generation multi-WAN router making it ideal for your most demanding and complex networks. This VPN concentration is the evolution of our powerful 3910 model with even faster hardware to solve your large network challenges.
| Data transmission | |
|---|---|
| Load balancing | Yes |
| VoIP | Yes |
| IPSec VPN throughput | 5 Gbit/s |
| VPN throughput | 5 Gbit/s |
| Firewall throughput | 12.5 Gbit/s |
| Performance | |
|---|---|
| Reset button | Yes |
| Syslog | Yes |
| Network | |
|---|---|
| Multicast support | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Number of VLANs | 100 |
| DHCP server | Yes |
| DHCP client | Yes |
| Dynamic DNS (DDNS) | Yes |
| Dynamic routing | Yes |
| Static route | Yes |
| Number of users | 500 user(s) |
| Maximum Number of VPN connections supported | 500 |
| Number of VPN connections | 500 |
| Security | |
|---|---|
| VPN support | IPsec IKEv1IKEv2IKEv2 EAPIPsec-XAuthDrayTek SSL VPNOpenVPNWireGuardGRE over IPsecPPTPL2TPL2TP over IPsec |
| Stateful Packet Inspection (SPI) | Yes |
| DDoS protection | Yes |
| Security algorithms | 3DES, DES, EAP, HTTPS, MD5, SHA-1, SHA-256 |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF |
| Management protocols | http, https, ssh, telnet, tr-069 |
| Management features | |
|---|---|
| On/off switch | Yes |
| Remote administration | yes |
| URL filtering | Yes |
| Web-based management | Yes |
| Management platform | VigorACS |
| LED indicators | Power, System, USB |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 2 |
| WAN connection | Ethernet (RJ-45) |
| Console port | RJ-45 |
| Ethernet LAN (RJ-45) ports | 10 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| 10G (fiber) ports quantity | 2 |
| Connectivity technology | Wired |
| Design | |
|---|---|
| Built-in fan | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 55 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.76 kg |
| Height | 45 mm |
| Depth | 285 mm |
| Width | 443 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Screws included | Yes |
| Rack mount kit | Yes |
| Cables included | LAN (RJ-45) |
| Other features | |
|---|---|
| Firewall throughput | 12500 Mbit/s |
| VPN throughput | 5000 Mbit/s |
