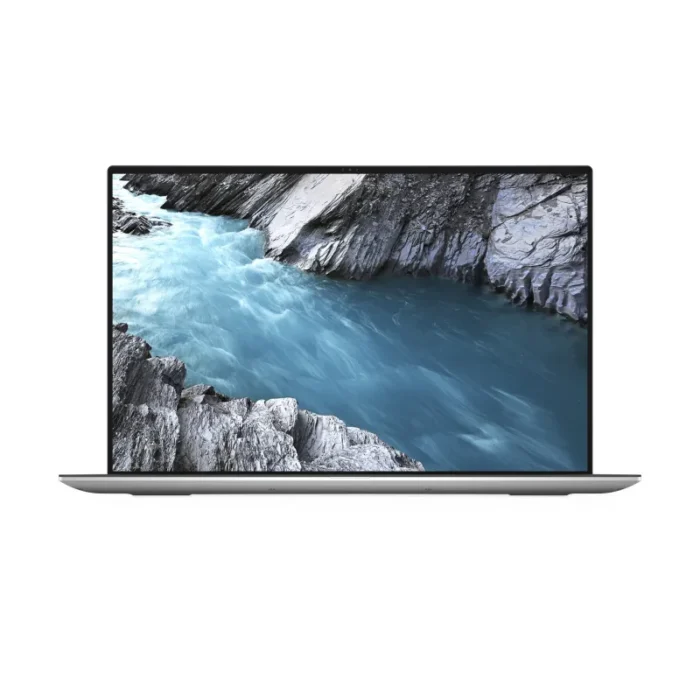

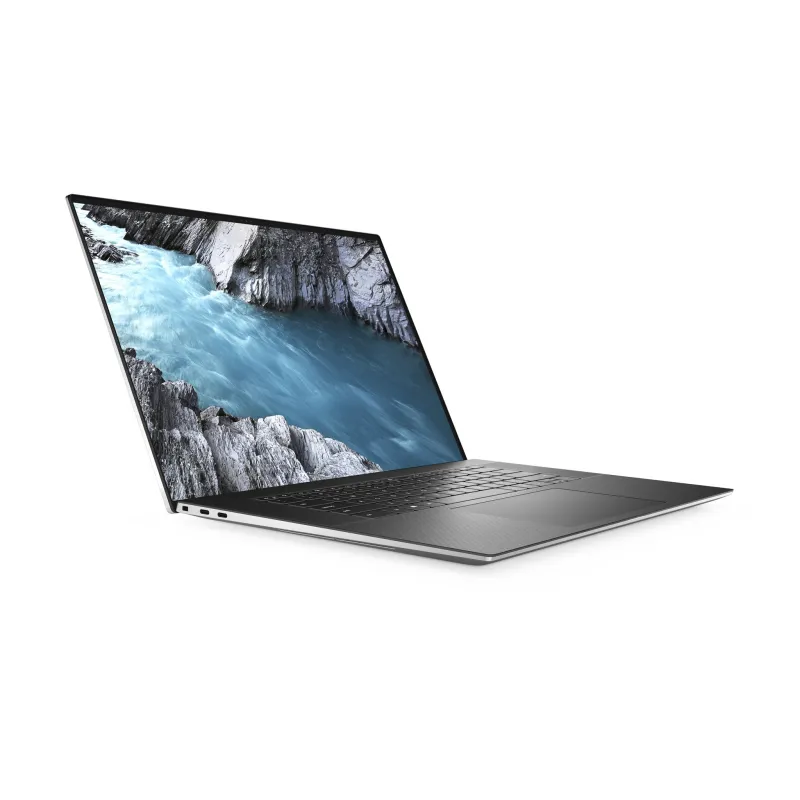

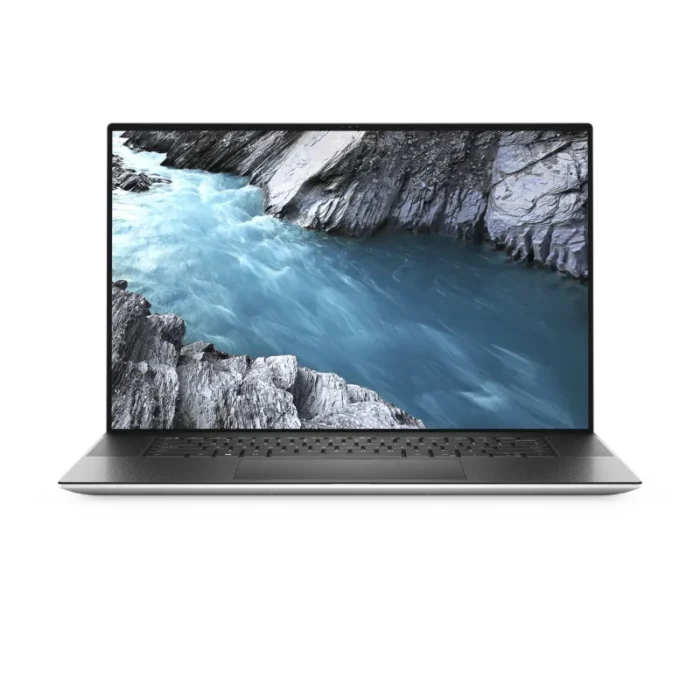

DELL XPS 17 9700 Intel® Core™ i9 i9-10885H Laptop 43.2 cm (17″) Touchscreen UHD+ 16 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2060 Wi-Fi 6 (802.11ax) Windows 10 Home Black, Platinum, Silver
- Windows 10 Home 64-bit
- Intel Core i9-10885H (16MB Cache, 2.4GHz)
- 43.2 cm (17″) UHD+ 3840 x 2400 Touch, NVIDIA GeForce RTX 2060 (6GB GDDR6)
- 16GB (2933MHz) DDR4-SDRAM (2 x 8) & 1000GB SSD
Colossal power. Optimum design.
17-inch laptop in a 15-inch size loaded with power. Featuring 10th Gen Intel® Core™ processors, up to NVIDIA® GeForce RTX™ 2060 graphics and a studio-quality display.
| Design |
| Form factor |
Clamshell |
| Product colour |
Black, Platinum, Silver |
| Product type |
Laptop |
| Display |
| Display response rise/fall |
35 ms |
| Maximum refresh rate |
60 Hz |
| Pixel pitch |
0.0954 x 0.0954 mm |
| Pixel density |
266 ppi |
| Display brightness |
500 cd/m² |
| Display bezel technology |
InfinityEdge |
| Native aspect ratio |
16:10 |
| HD type |
UHD+ |
| Touchscreen |
Yes |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
43.2 cm (17″) |
| Processor |
| Configurable TDP-down |
35 W |
| Processor cache type |
Smart Cache |
| Processor cache |
16 MB |
| Processor frequency |
2.4 GHz |
| Processor boost frequency |
5.3 GHz |
| Processor cores |
8 |
| Processor model |
i9-10885H |
| Processor generation |
10th gen Intel® Core™ i9 |
| Processor family |
Intel® Core™ i9 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Memory clock speed |
2933 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
6 GB |
| Discrete graphics card model |
NVIDIA® GeForce RTX™ 2060 |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
4 W |
| Number of built-in speakers |
4 |
| Audio system |
MaxxAudio Pro |
| Audio chip |
Realtek ALC711-CG |
| Camera |
| Video capturing speed |
30 fps |
| Front camera resolution |
1280 x 720 pixels |
| Front camera HD type |
HD |
| Front camera resolution (numeric) |
0.92 MP |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| WLAN controller model |
Killer Wireless-AX 1650 |
| WLAN controller manufacturer |
Killer |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 3 ports quantity |
4 |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Battery voltage |
11.4 V |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| Security |
| Password protection |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Operational conditions |
| Non-operating vibration |
1.3 G |
| Operating vibration |
0.66 G |
| Non-operating shock |
160 G |
| Operating shock |
110 G |
| Non-operating altitude |
-15.2 – 10668 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Height (rear) |
1.31 cm |
| Height (front) |
8.67 mm |
| Depth |
248.1 mm |
| Width |
374.5 mm |
| Weight |
2.53 kg |
| General |
| Product family |
XPS |
| Product series |
17 |
| Packaging content |
| Cables included |
AC |
