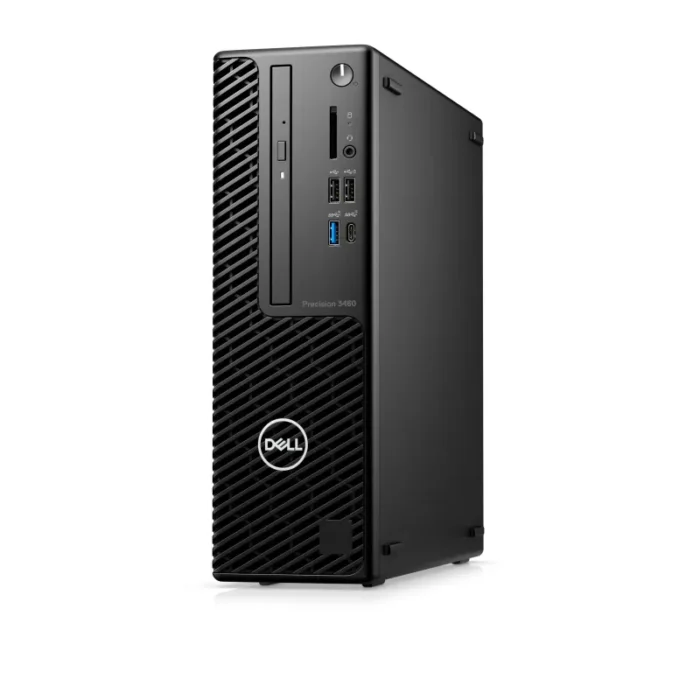

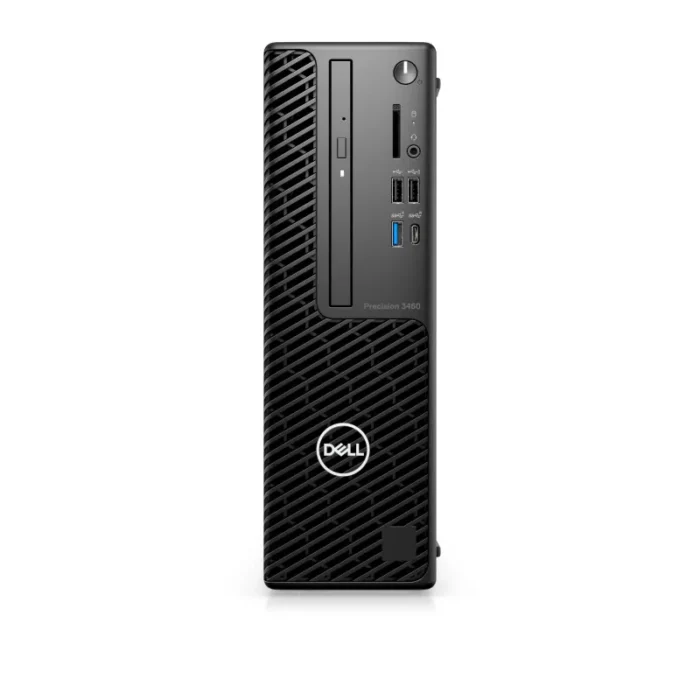

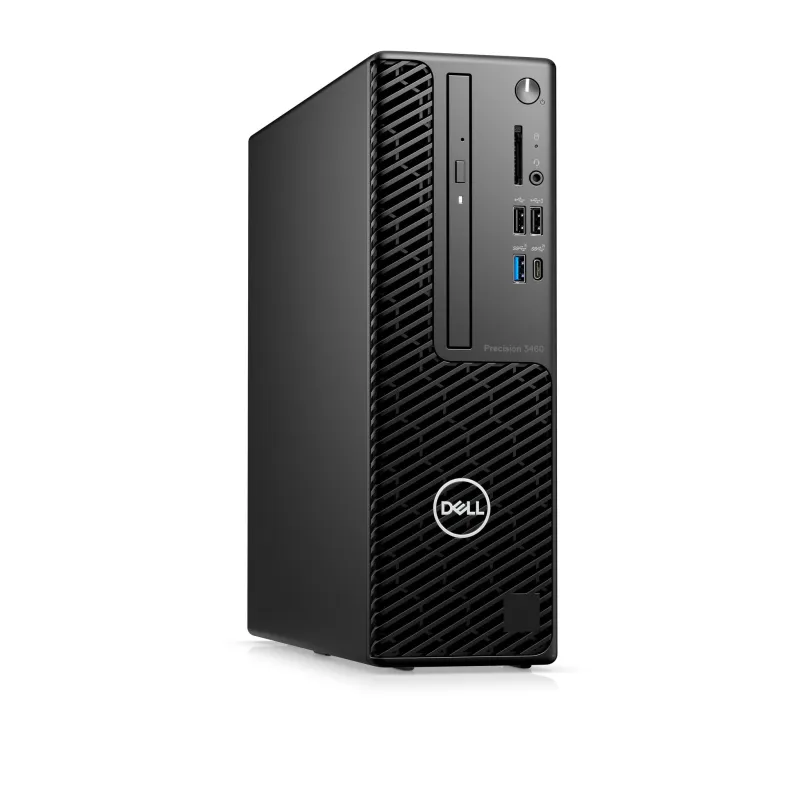

DELL Precision 3460 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T1000 Windows 11 Pro SFF Workstation Black
- Windows 11 Pro 64-bit
- Intel Core i7-14700 (33Mo Cache)
- NVIDIA T1000 (8Go GDDR6)
- 16Go DDR5-SDRAM (1 x 16) & 512Go SSD
Smart performance and design
An intelligent, performance-optimized, space-saving small form factor.
| Processor |
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory data transfer rate |
5600 MT/s |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| SSD performance class |
40 |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA T1000 |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,1000,2500,100 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of SATA III connectors |
3 |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
3 |
| PowerShare |
Yes |
| Number of USB ports with PowerShare support |
1 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
4 |
| Expansion slots |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x4 (Gen 3.x) slots |
1 |
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Vertical |
| Chassis type |
SFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
Waves MaxxAudio |
| Motherboard chipset |
Intel W680 |
| Market positioning |
Business |
| Product type |
Workstation |
| Software |
| Trial software |
Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply input frequency |
47/63 Hz |
| Power supply input voltage |
90 – 264 V |
| Power supply |
300 W |
| Operational conditions |
| Non-operating shock |
105 G |
| Non-operating vibration |
1.37 G |
| Operating vibration |
0.26 G |
| Non-operating altitude |
0 – 10668 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Weight & dimensions |
| Weight |
5.38 kg |
| Height |
290 mm |
| Depth |
292.8 mm |
| Width |
92.6 mm |
| Packaging content |
| Cables included |
AC |
| Keyboard included on selected markets |
Dell Multimedia Keyboard-KB216 – UK (QWERTY) – Black |
| Mouse included on selected markets |
Dell Optical Mouse-MS116 – Black |
| Display included |
No |
| General |
| Product family |
Precision |
| Product series |
3000 |
