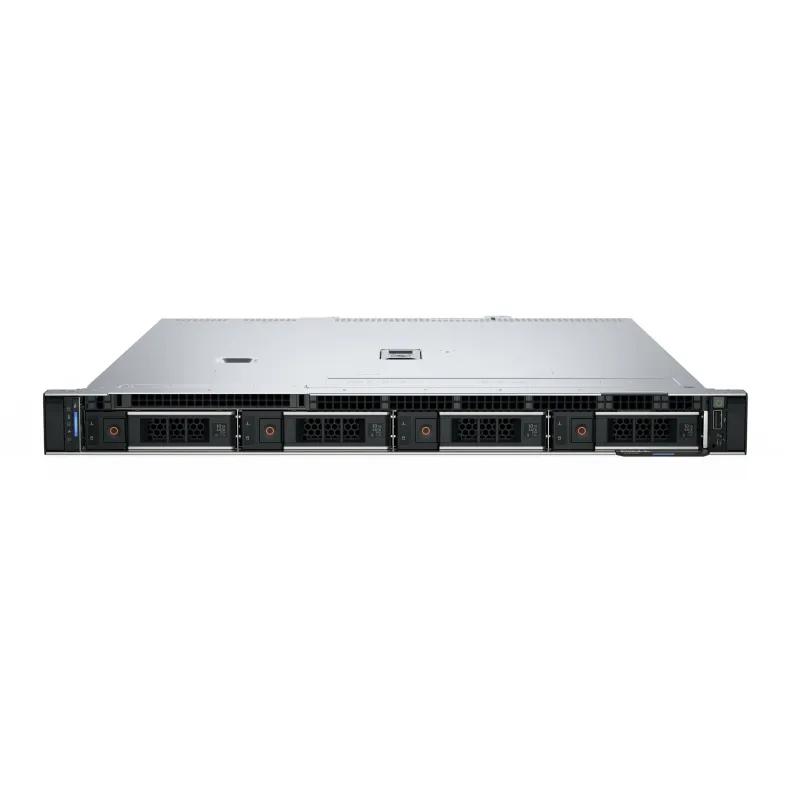

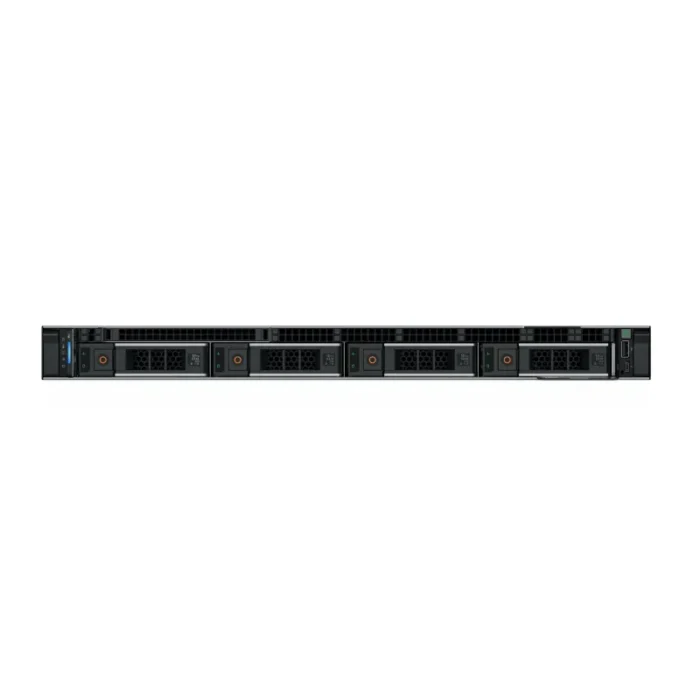

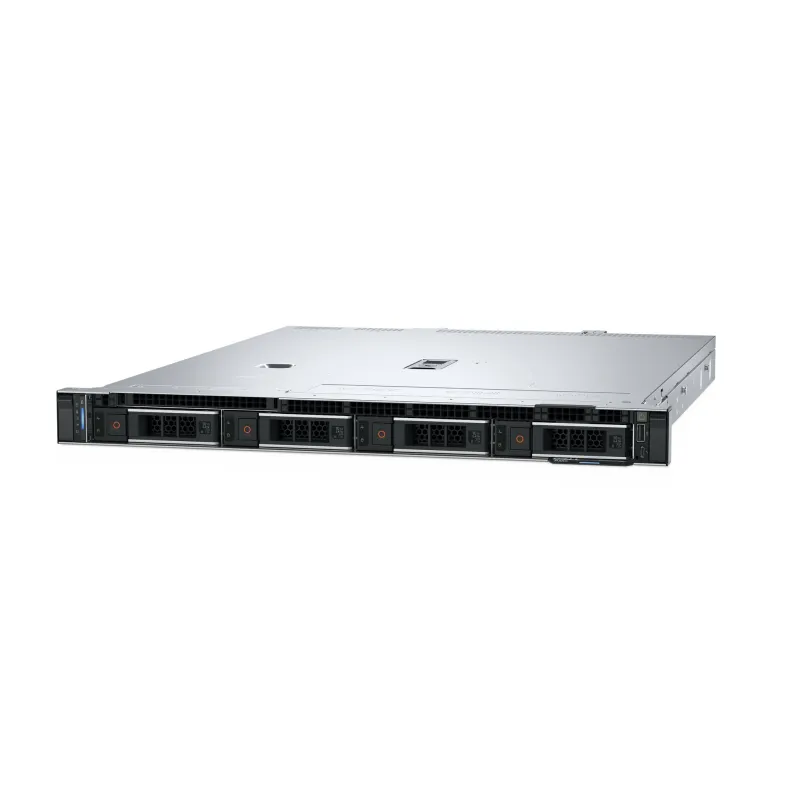

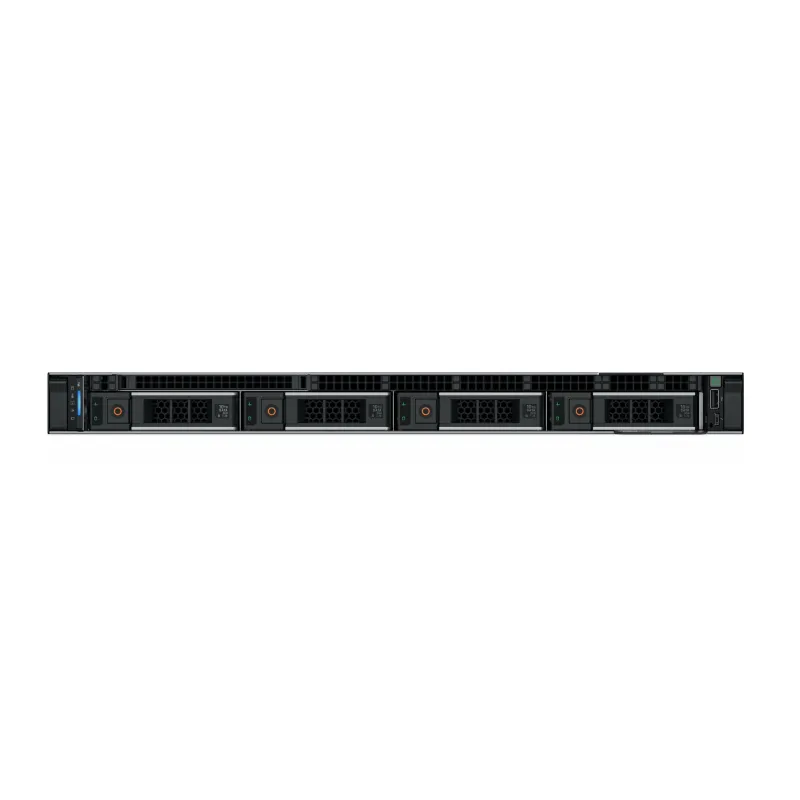

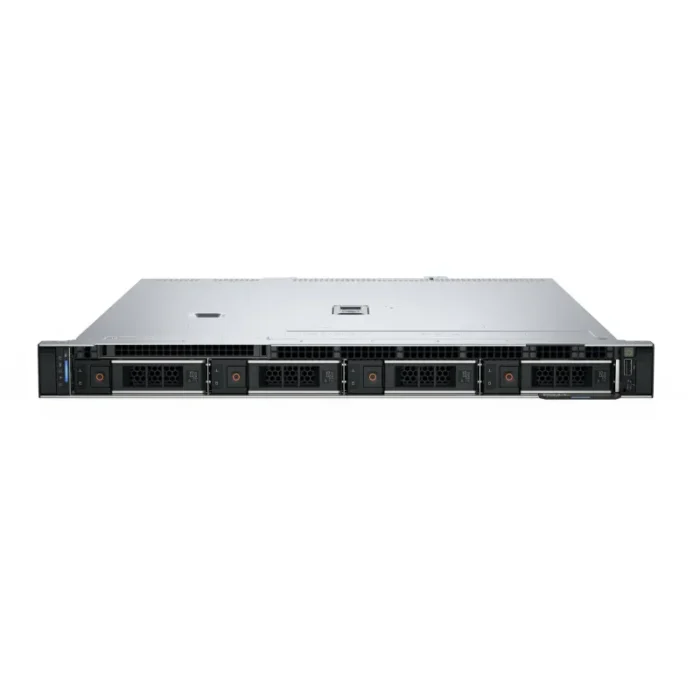

DELL PowerEdge R360 server 480 GB Rack (1U) Intel Xeon E E-2414 2.6 GHz 16 GB DDR5-SDRAM 700 W
- No OS
- Intel Xeon E-2414 (12MB Cache, 2.6GHz)
- 16GB DDR5-SDRAM & 480GB SSD
- iDRAC9, Enterprise 16G
Processing performance, GPU support
The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
| Processor |
| Processor threads |
4 |
| Thermal Design Power (TDP) |
55 W |
| Number of processors installed |
1 |
| Motherboard chipset |
Intel C262 |
| Processor cache |
12 MB |
| Processor cores |
4 |
| Performance cores |
4 |
| Processor boost frequency |
4.5 GHz |
| Processor frequency |
2.6 GHz |
| Processor model |
E-2414 |
| Processor family |
Intel Xeon E |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
128 GB |
| Memory data transfer rate |
5600 MT/s |
| ECC |
Yes |
| Buffered memory type |
Unregistered (unbuffered) |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Storage drive adapter type |
2.5″ – 3.5″ |
| Storage drive adapter included |
Yes |
| Internal drive bays |
4 |
| Drive writes per day (DWPD) |
1 |
| Optical drive type |
No |
| Hot-Plug support |
Yes |
| Supported RAID controllers |
PERC H355 |
| RAID support |
Yes |
| SSD size |
2.5″ |
| SSD interface |
SATA III |
| SSD capacity |
480 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
480 GB |
| Network |
| LAN controller |
Broadcom 5720 |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
| Bezel |
Yes |
| Rack rails |
Yes |
| Product colour |
Black, Silver |
| Chassis type |
Rack (1U) |
| Performance |
| Remote administration |
iDRAC9, Enterprise 16G |
| Software |
| Compatible operating systems |
Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Operating system installed |
No |
| Power |
| Power cable current |
10 A |
| Power cable connector 2 |
C14 coupler |
| Power cable connector 1 |
C13 coupler |
| Power cable length |
2 m |
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
200 – 240 V |
| Number of redundant power supplies supported |
1 |
| Power supply |
700 W |
| Redundant power supply (RPS) support |
No |
| Operational conditions |
| Non-operating altitude |
0 – 12000 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Certificates |
| 80 PLUS certification |
80 PLUS Titanium |
| General |
| Product family |
PowerEdge |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
1140 |
| Total carbon emissions, standard deviation (kg of CO2e) |
943 |
| Carbon emissions, manufacturing (kg of CO2e) |
308 |
| Carbon emissions, logistics (kg of CO2e) |
103 |
| Carbon emissions, energy usage (kg of CO2e) |
718 |
| Carbon emissions, end-of-life (kg of CO2e) |
11 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
422 |
| PAIA version |
1.4.0, 2024 |
| Weight & dimensions |
| Height |
42.8 mm |
| Width |
482 mm |
| Technical details |
| Supported storage drives form factor (internal) |
3.5″ |
| Other features |
| Target workload |
Read Intensive (RI) |
| Data transfer rate |
6 Gbit/s |
| Bytes per sector |
512 |
