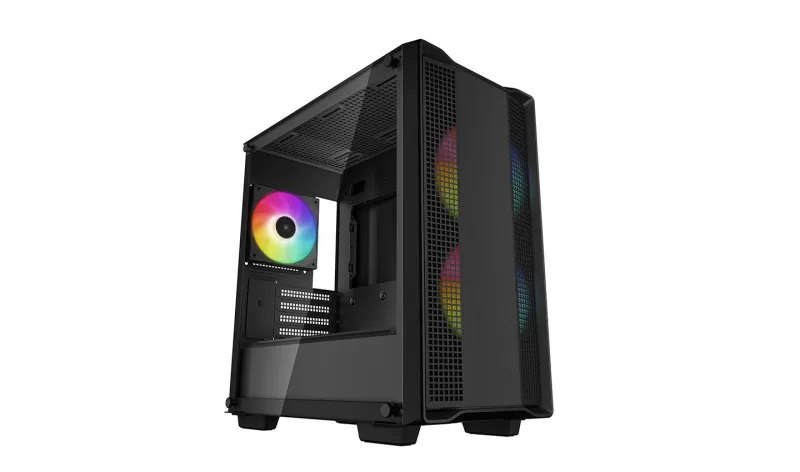

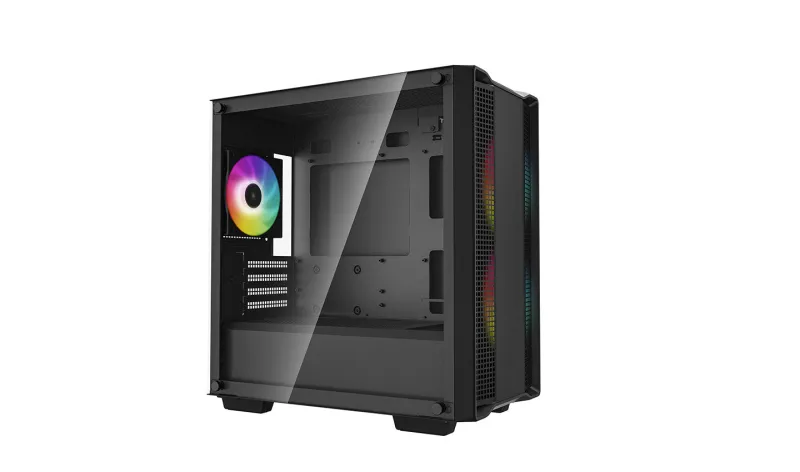

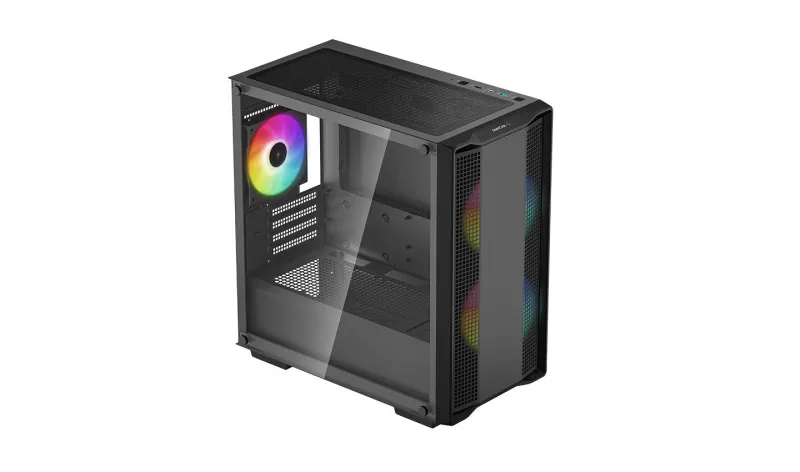

DeepCool CC360 ARGB Mini Tower Black
- Mini Tower PC
- micro ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5″ HDD/SSD combo cage
- Number of 2.5″ bays: 3 Number of 3.5″ bays: 2
- Side window Illumination Multi Tempered glass panel(s) Anti-dust filter
- ABS, Steel, Tempered glass
- Black
CC360 ARGB
The DeepCool CC360 ARGB Micro-ATX case offers outstanding value with spacious component compatibility, a crystal-clear tempered glass window, and a total of three pre-installed ARGB fans that get any build started right.
CC360 ARGB
Micro-ATX Case
ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the CC360 ARGB comes equipped with an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY
A total of 3 pre-installed ARGB fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for a 360mm radiator in front or a 240mm radiator on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
COMPATIBILITY
– CPU Cooler Height (max): 165mm
– GPU Length (max): 320mm
– PSU Length (max): 160mm
STORAGE SOLUTIONS
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.
CRYSTAL CLEAR TEMPERED GLASS WINDOW
Showcase your system build with a clean and clear full-sized window.
TOP PANEL MAGNETIC DUST FILTER
Keeps the dust out but ensures exhaust air flows out seamlessly
FRONT I/O PANEL
Features USB 3.0, USB 2.0, and a combo audio jack.
| Design | |
|---|---|
| Maximum PSU length | 16 cm |
| Maximum graphics card length | 32 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 4 |
| Number of 2.5″ bays | 3 |
| Number of 3.5″ bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Material | ABS, Steel, Tempered glass |
| Type | PC |
| Form factor | Mini Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply location | Bottom |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,140,240 mm |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 120 mm |
| Storage | |
|---|---|
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5″ |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 4.9 kg |
| Height | 431 mm |
| Depth | 418 mm |
| Width | 215 mm |
