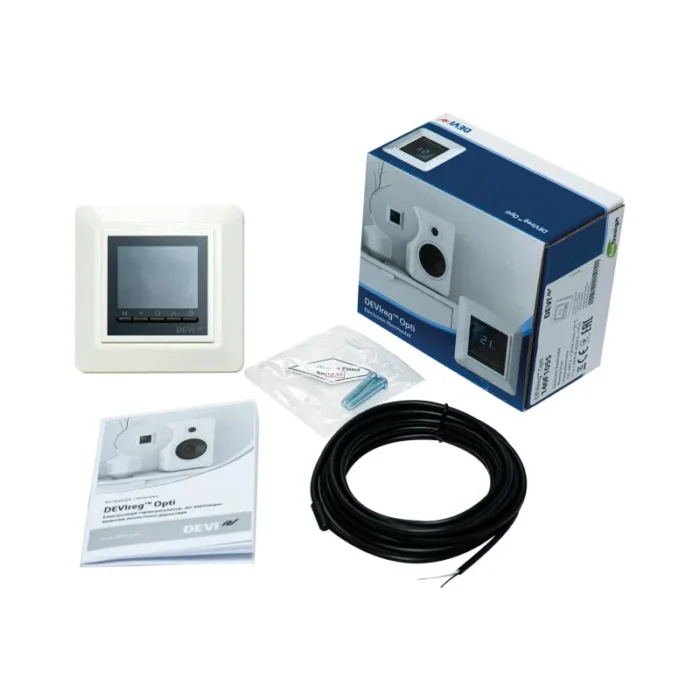

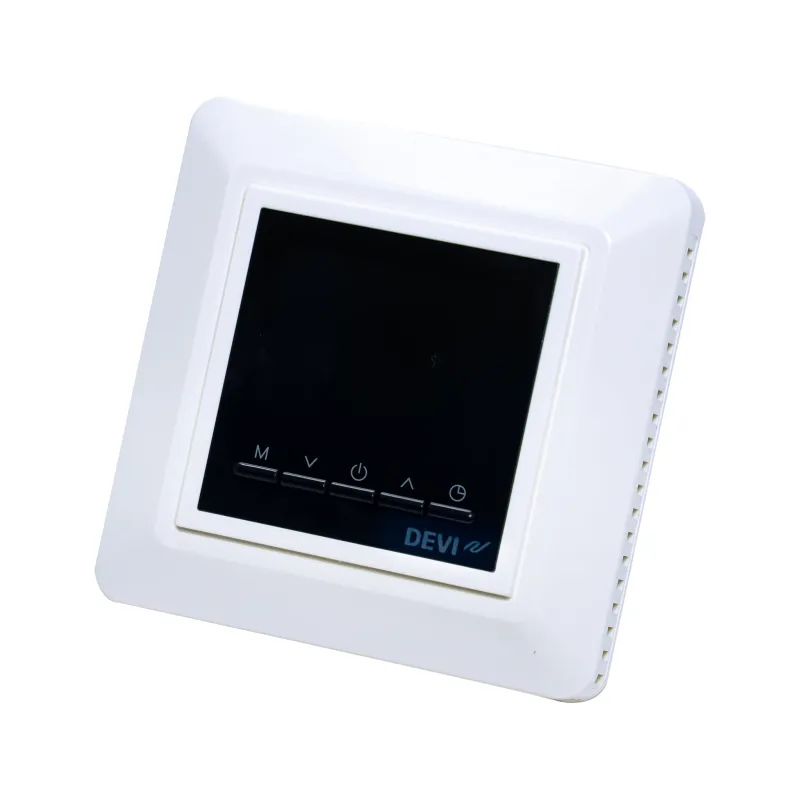

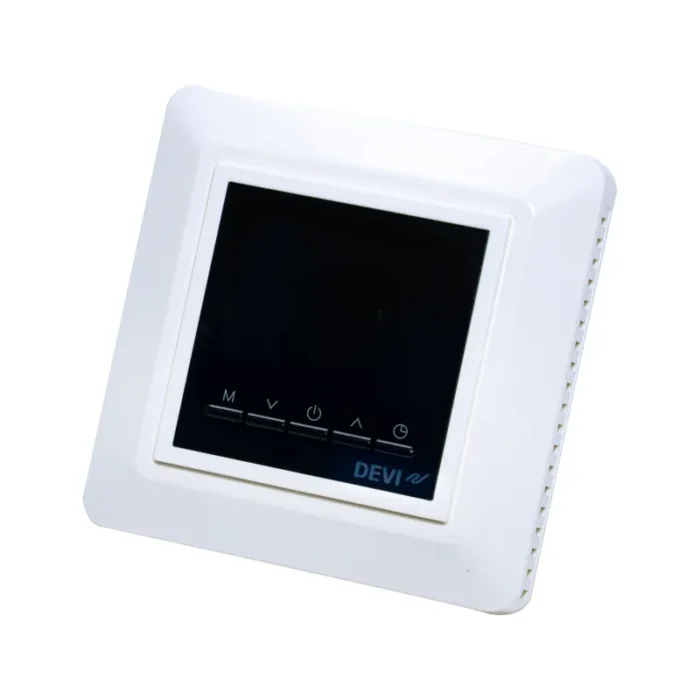

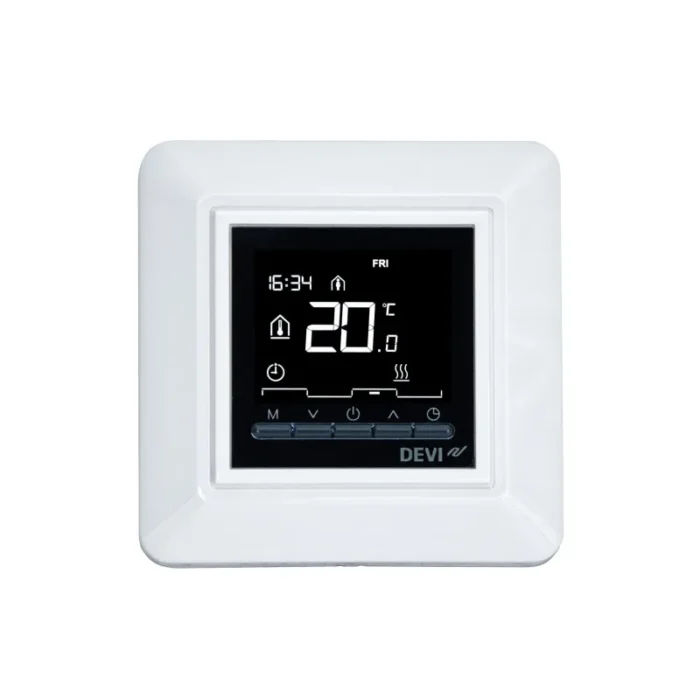

Danfoss DEVIreg™ OpticPure White Thermostat
DEVIreg™ Opti
The DEVIreg™ Opti is an electronic thermostat with a programmable timer, designed to fulfil Eco design directives. The thermostat is primarily used for controlling electrical floor heating elements. The thermostat is designed for fixed installation only and has an integrated frame.
The DEVIreg™ Opti is fast to set up and easy to operate, using buttons placed below the screen. It has an open window detection function and energy-saving regulation program.
Benefits:
- Fulfilling the Eco design directive requirements
- Open window detection and indication
- PWM regulation function
- Weekly timer
- Low stand-by consumption
- Always on, visible current room temperature
- Keeps user settings for up to 60 days.
Standard compliance:
- EN/IEC 60730-1 (general)
- EN/IEC 60730-2-9 (thermostat)
|
Operation voltage |
220 – 240 V, 50/60 Hz |
|
Standby power consumption |
< 0,5 W |
|
Resistive load |
13A / 2990W @ 230V |
|
Inductive load |
1A (Cos Φ = 0,3) |
|
Sensing unit |
NTC 15 kΩ @ 25°C, 3 m. |
|
Regulation |
PWM – Pulse Width Modulation |
|
Ambient temperature |
0°C to 35°C |
|
Frost protection |
5°C to 9°C (default 5°C) |
|
Temperature range |
5°C to 35°C (room) 5°C to 35°C (45°C with break out) (floor) |
|
Storage temperature |
-25°C to 60°C |
|
Cable specification max. |
1 x 4 mm2 and 2 x 2,5 mm² |
|
Ball pressure test temperature |
75°C |
|
Pollution degree |
2 (domestic use) |
|
Controller type |
1 B |
|
Software class |
A |
|
IP class |
21 |
|
Protection class |
Class II – |
|
Dimensions (H/W/D) |
85 mm x 85 mm x 44 mm (in-wall depth: 24 mm) |
|
Weight |
138 g |
