D-Link DMC-F02SC network media converter 100 Mbit/s Black
- Wired
- 100 Mbit/s 2000 m
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- SC
- Black

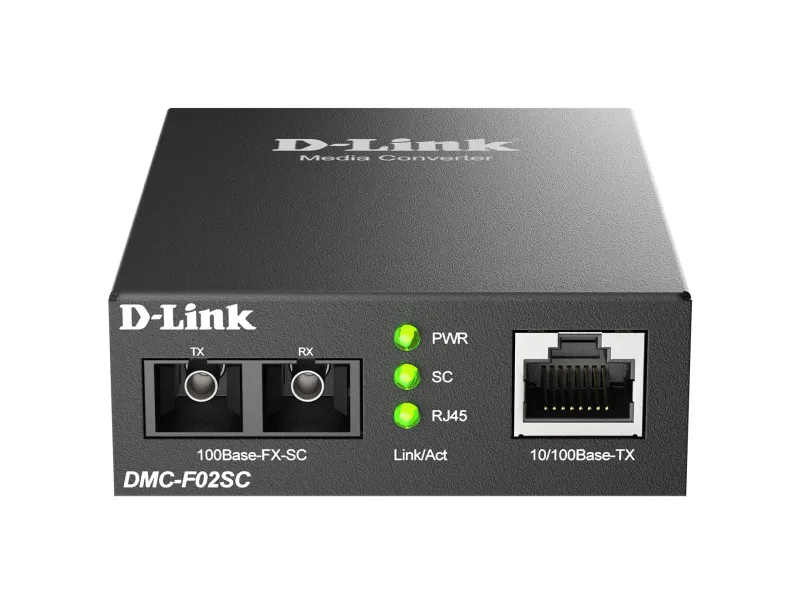

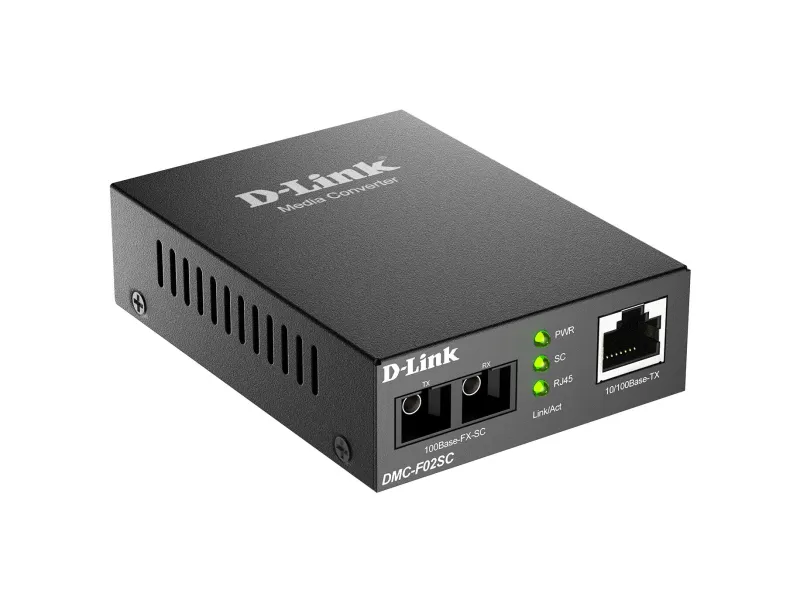

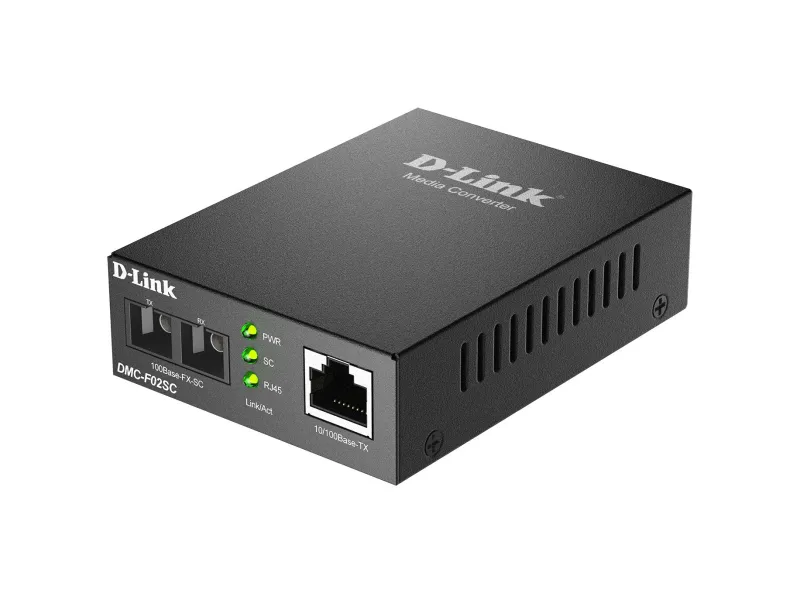

The DMC-F02SC is a standalone media converter designed to convert a twisted-pair 10/100Base- TX Fast Ethernet connection to a multi-mode fibre 100Base-FX Fast Ethernet connection to extend a connection distance (up to 2 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.
| Network |
| Auto MDI/MDI-X |
Yes |
| Ethernet interface type |
Fast Ethernet |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Converter output interface |
100Base-FX |
| Converter input interface |
100Base-TX |
| Maximum data transfer rate |
100 Mbit/s |
| Performance |
| Maximum transfer distance |
2000 m |
| Features |
| LED indicators |
Yes |
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| Fiber optic connector |
SC |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
| Power consumption (typical) |
1.5 W |
| Input current |
0.55 A |
| Input voltage |
5 V |
| Weight & dimensions |
| Weight |
134 g |
| Height |
26 mm |
| Depth |
70.5 mm |
| Width |
93.5 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating temperature (T-T) |
0 – 55 °C |
| Certificates |
| Certification |
CE Class B |
| Safety |
LVD |
