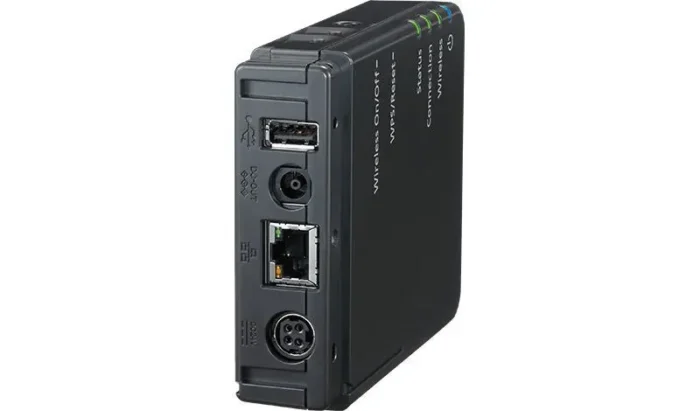

Canon WA10 Ethernet / WLAN
- Wired & Wireless
- USB Type-C 2.0 Ethernet / WLAN
- Gigabit Ethernet 10/100/1000BaseT(X)
- Wi-Fi Single-band (2.4 GHz)
- Component for: PC
Enabling scanning directly over the network with Canon’s USB scanners.
A simple way to expand your office’s scanning capability
Network adapters that enable users to share access to Canon’s imageFormula scanners across multiple computers. Delivers enhanced mobile scanning options and works seamlessly with a choice between a wired or wireless connection.
Expand access
Consolidate management of scanners in an office on to a single wired or wireless network.
Push scanning
Streamline the scanning process by undertaking jobs with one button press on the scanner.
Mobile control
Perform scanning functions from mobiles and smart devices without using a computer.
| Ports & interfaces | |
|---|---|
| USB version | 2.0 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet / WLAN |
| Host interface | USB Type-C |
| Connectivity technology | Wired & Wireless |
| Network | |
|---|---|
| Security algorithms | WEP, WPA-PSK, WPA2-PSK, WPS |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Component for | PC |
| Internal | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 85% |
| Operating temperature (T-T) | 10 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 179 g |
| Height | 28.8 mm |
| Depth | 93.6 mm |
| Width | 116 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
