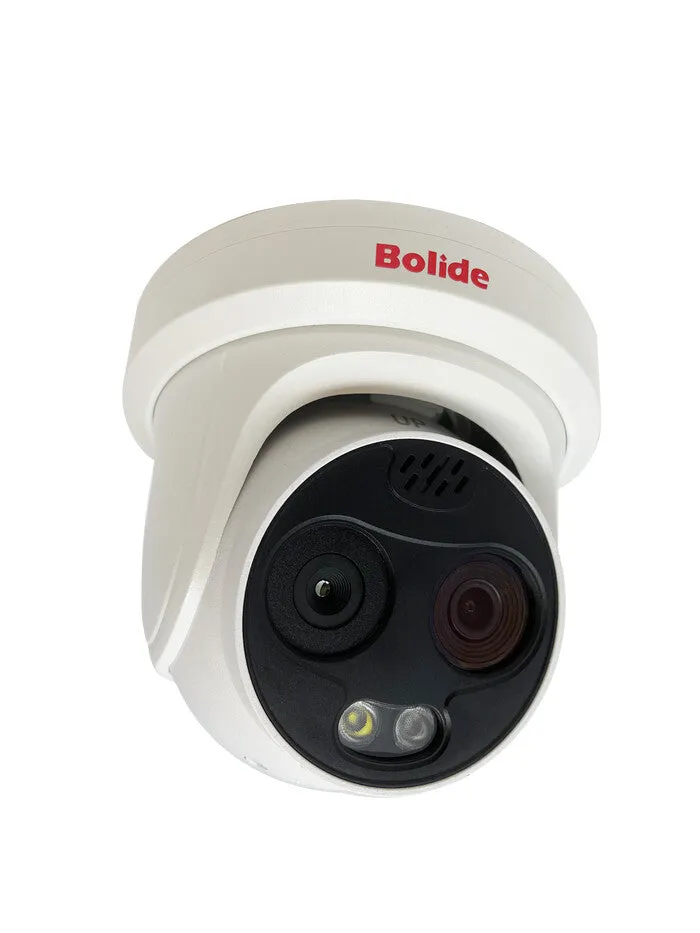

Bolide BN2029TH security camera Turret IP security camera Indoor 1920 x 1080 pixels Ceiling
- Indoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8″) 1920 x 1080 pixels
- Wired Ethernet LAN
- Night vision
- Digital zoom: 16x
- Turret Ceiling Water resistant
- IP66
- White
| Performance | |
|---|---|
| Plug and Play | Yes |
| Languages support | Multi |
| Thermal sensitivity (NETD) | 60 mK |
| Dynamic range | 120 dB |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| Fog proof | Yes |
| International Protection (IP) code | IP66 |
| Protection features | Water resistant |
| Housing material | Metal |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Turret |
| Camera | |
|---|---|
| Camera shutter speed | 1/5 – 1/64000 s |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, horizontal | 92° |
| Vertical field of view (thermal module) | 36° |
| Horizontal field of view (thermal module) | 48° |
| Minimum illumination | 0.0003 lx |
| Image sensor | |
|---|---|
| Effective sensor resolution (thermal module) | 256 x 192 pixels |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Infrared spectral band | 8 – 14 µm |
| Fixed focal length (thermal module) | 3.5 mm |
| Fixed focal length | 4 mm |
| Focus | Motorized |
| Digital zoom | 16x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Sharpness |
| Bit rate | 100Kbps~16Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2880 x 1620 |
| Video formats supported | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio formats supported | AMR, G.711 |
| Audio input channels | 1 channels |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Number of users | 10 user(s) |
| Supported network protocols | IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Maximum memory card size | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Mirror | Yes |
| Privacy protection | Yes |
| Fire detection | Yes |
| Temperature measurement range | -40 – 150 °C |
| Temperature sensor | Yes |
| Built-in siren | Yes |
| Alarm output channels | 1 |
| Alarm input channels | 1 |
| Management features | |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 10 W |
| AC input voltage | 24 V |
| Power source type | AC, DC, PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Weight & dimensions | |
|---|---|
| Diameter | 14 cm |
| Height | 117.8 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.03 kg |
| Package height | 123 mm |
| Package depth | 138 mm |
| Package width | 138 mm |
| Sustainability | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Number of cameras | 1 |
