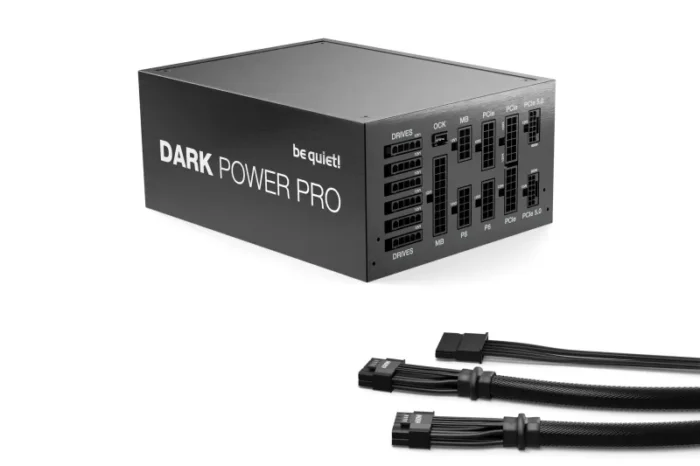

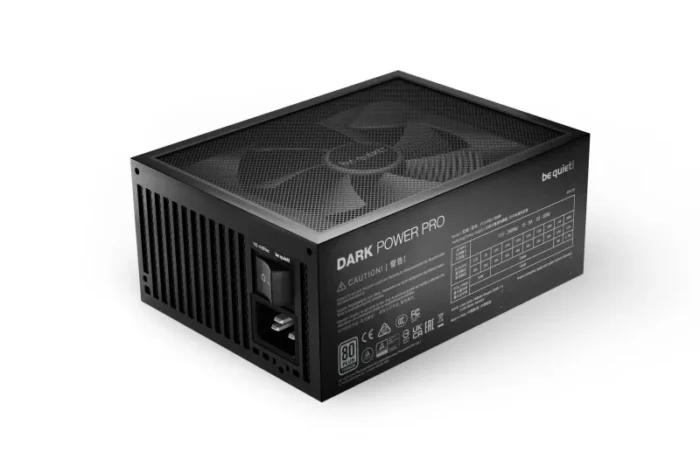

be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
- 80 PLUS Titanium efficiency (up to 94.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

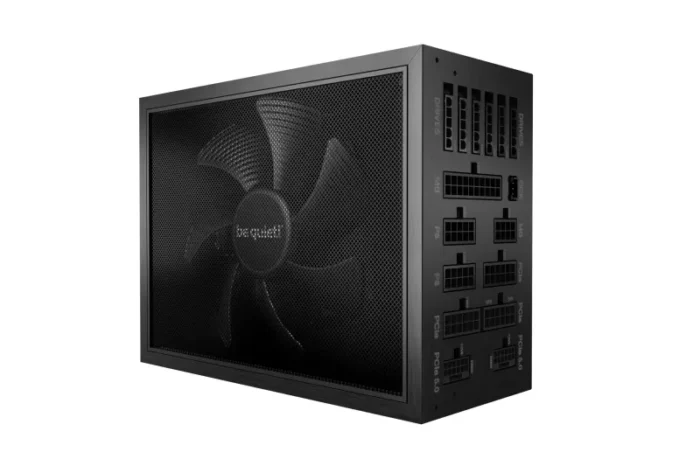

- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Full mesh PSU front with funnel-shaped air inlet
- Overclocking key switches between six 12V rails and one massive 12V rail
- Japanese 105°C capacitors ensure highest stability and reliability
- 2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
- Aluminum case and modular individually sleeved cables for magnificent appearance
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
18 ms |
| Efficiency |
94.5% |
| Max output current (+5Vsb) |
3.5 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V3) |
40 A |
| Max output current (+12V4) |
40 A |
| Max output current (+12V2) |
35 A |
| Max output current (+12V1) |
35 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
17.5 W |
| Combined power (-12V) |
6 W |
| Combined power (+5V) |
150 W |
| Combined power (+12V) |
1300 W |
| Combined power (+3.3V) |
150 W |
| Power factor |
0.99 |
| Input current |
15 – 9 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
115 – 240 V |
| Peak power |
1400 W |
| Total power |
1300 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
70 cm |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (6+2 pin) |
6 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
600,750,900,1050 mm |
| SATA power cable length |
500,600,750,800,900,950,1050 mm |
| Number of PATA power connectors |
5 |
| Number of SATA power connectors |
16 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Noise level |
23.2 dB |
| EPS version |
2.92 |
| ATX version |
3.0 |
| 80 PLUS certification |
80 PLUS Titanium |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Number of fans |
1 fan(s) |
| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Certificates |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), UKCA |
| Packaging content |
| Cable tie(s) included |
Yes |
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
| Weight |
2.41 kg |
| Height |
86 mm |
| Depth |
200 mm |
| Width |
150 mm |
| Packaging data |
| Package weight |
6.8 kg |
| Package height |
152 mm |
| Package depth |
417 mm |
| Package width |
253 mm |
| Technical details |
| Sustainability compliance |
Yes |
| Logistics data |
| Shipping (inner) case length |
44 cm |
| Shipping (inner) case width |
32.5 cm |
| Shipping (inner) case height |
28.3 cm |
| Shipping (inner) case net weight |
14.4 kg |
| Products per shipping (inner) case |
2 pc(s) |
| Warranty period |
10 year(s) |
