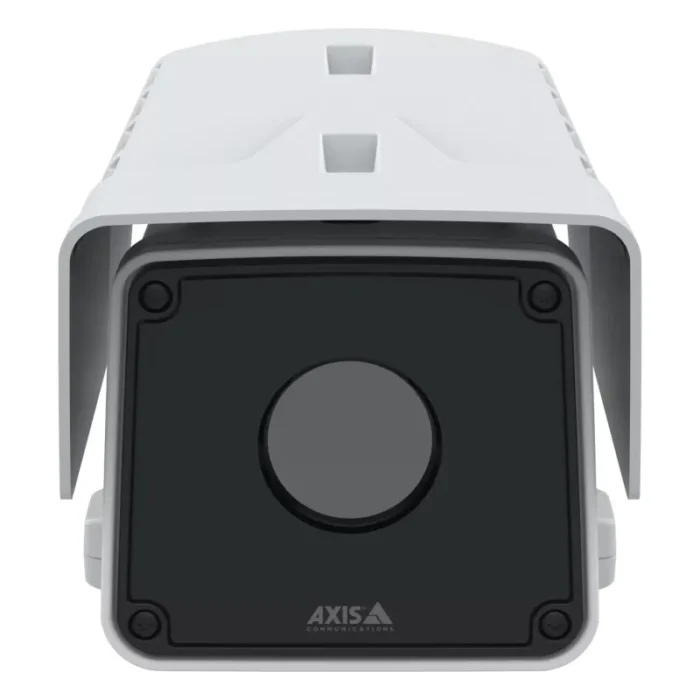

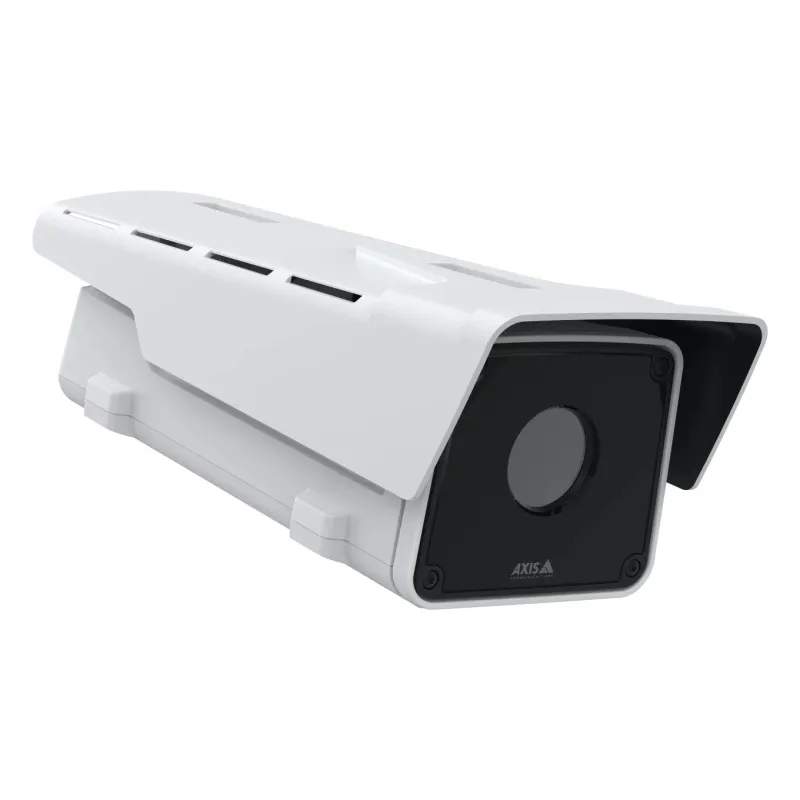

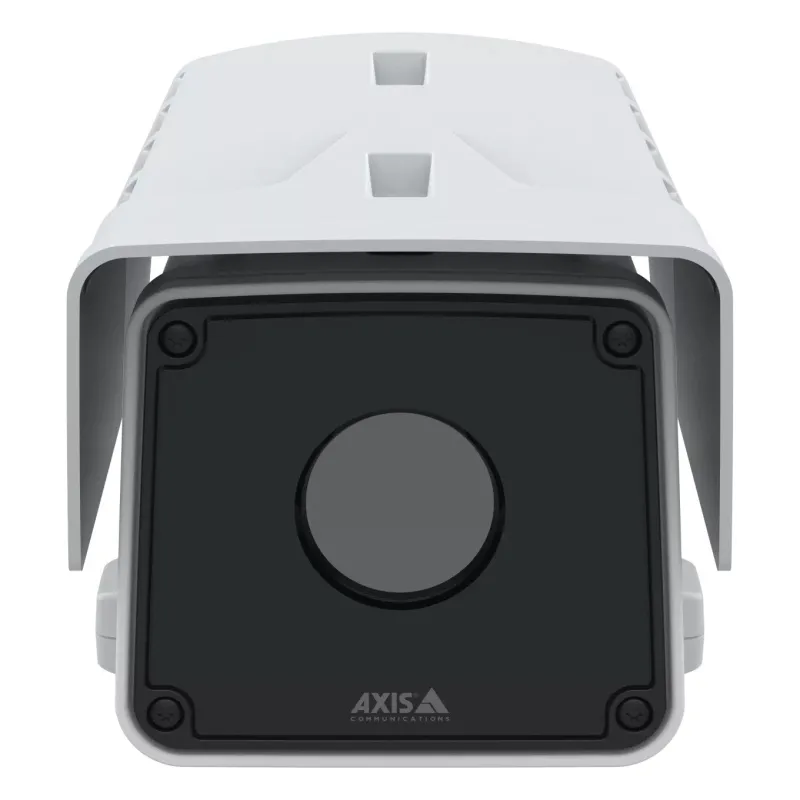

Axis Q2112-E Box IP security camera Outdoor 640 x 480 pixels Wall
- Outdoor IP security camera
- Microbolometer 640 x 480 pixels
- Wired Ethernet LAN
- Box Wall
- IP66, IP67 IK10 Weatherproof
- Black, White
- 3.5 kg
Reliable detection and verification—always

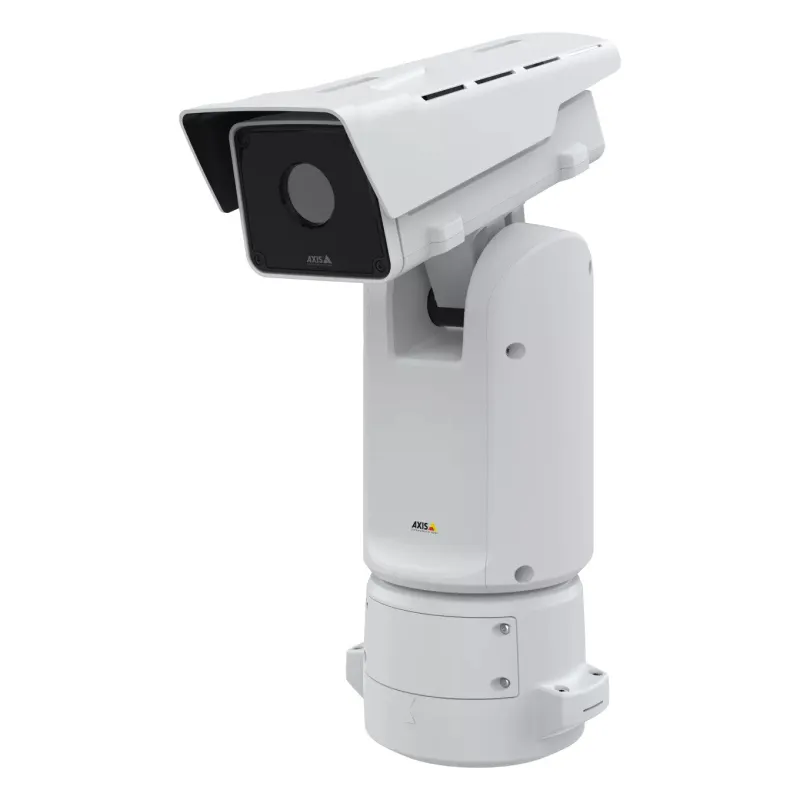

Using thermal technology, AXIS Q2112-E offers reliable detection and verification 24/7 in all light conditions and even in smoke and light fog—all while protecting privacy. It features a powerful sensor with extremely high thermal sensitivity for a low false alarm rate. Plus, there’s a choice of five lens options (10 mm, 19 mm, 25 mm, 35 mm, 60 mm) for a wider or longer and narrower field of view. When mounted on a positioning unit (sold separately), this robust camera provides a 360° overview. This unobstructed field of view combined with the camera’s high resolution ensures great scene understanding, especially in low-contrast scenes. What’s more, electronic image stabilization (EIS) ensures stable, reliable video in all environments.
Powerful analytics platform
This powerful thermal camera delivers actionable insights helping you make informed decisions about your operations. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced protection. Built on a powerful analytics platform, it’s possible to add custom-made third-party analytics. And, with four I/O ports, one RS485 serial port, and edge-to-edge technology, you can easily integrate and trigger other devices such as a network speaker or strobe siren.
Robust and secure
With IK10-, IP66/67-, NEMA 4X, and NEMA TS2 ratings, this robust thermal camera is impact- and weather-resistant. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. Furthermore, this sustainable camera is made from halogen-free materials and offers a low carbon footprint.
| Performance | |
|---|---|
| Certification | CSA, UL/cUL, CE, KC, VCCI, RCM, CISPR 35, CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, ISO 21207 Method B , MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 512.6, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267 |
| Thermal sensitivity (NETD) | 20 mK |
| Preset points | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Weatherproof | Yes |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Wall |
| Form factor | Box |
| Camera | |
|---|---|
| Camera pixel size | 17 µm |
| Lens viewing angle, horizontal | 10° |
| Image sensor | |
|---|---|
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Number of sensors | 1 |
| Sensor type | Microbolometer |
| Lens system | |
|---|---|
| Closest focusing distance | 84 m |
| Infrared spectral band | 8 – 14 µm |
| Maximum aperture number | 1.2 |
| Lens diameter | 6 cm |
| Number of lenses | 1 |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Gain control type | Auto |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 640 x 480 pixels |
| Audio | |
|---|---|
| Audio detection | Yes |
| Sample rates | 8 – 48 kHz |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio system full duplex | Yes |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, RFC 3164/5424, UDP/TCP/TLS, ZeroConf |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| RAM capacity | 2048 MB |
| Flash memory | 8192 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Terminal block port | Yes |
| Microphone in | Yes |
| RS-485 ports | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP |
| Privacy protection | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 4.6 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -40 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.5 kg |
| Height | 150 mm |
| Depth | 404 mm |
| Width | 159 mm |
| Sustainability | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | CFR, PVC/BFR |
