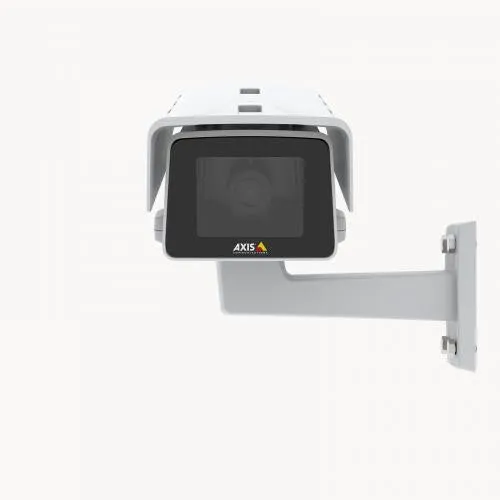

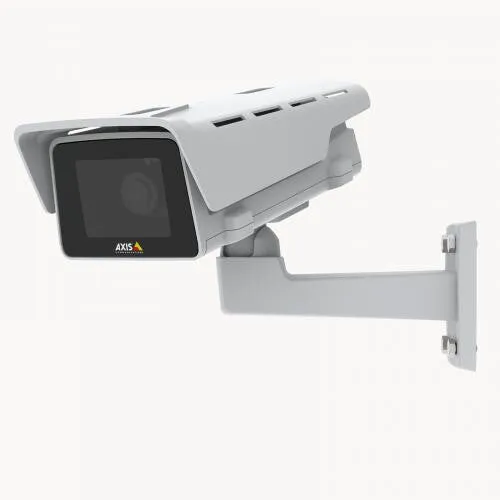

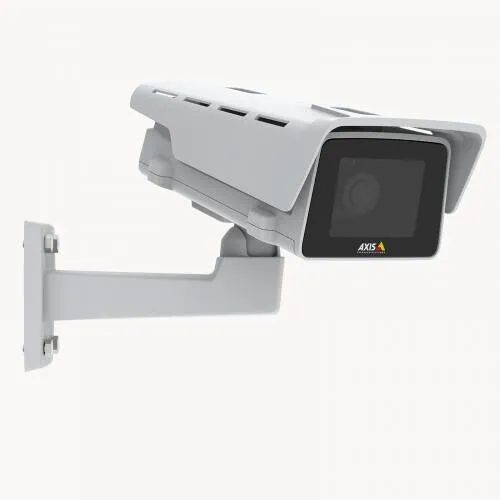

Axis 02485-001 security camera Box IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
- AXIS Object Analytics; Audio input; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS
This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera’s CS-mount enables flexibility for exchangeable lenses. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
| Performance |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Box |
| Camera |
| Lens viewing angle, vertical |
49° |
| Lens viewing angle, horizontal |
90° |
| Minimum illumination |
0.1 lx |
| Image sensor |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9″) |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
3 – 10.5 mm |
| Night vision |
| Night vision |
Yes |
| Video |
| Frame rate |
30 fps |
| Supported graphics resolutions |
160 x 90 |
| Video compression formats |
H.264, H.265, MPEG4 |
| Video formats supported |
H.264, H.265 |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN |
Yes |
| Storage |
| Flash memory |
512 MB |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| DC output voltage |
10, 12, 15, 16, 24, 28 |
| Power consumption (Power over Ethernet (PoE)) |
4.5 W |
| Power consumption (max) |
6.6 W |
| Power consumption (typical) |
4.4 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
10 – 100% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
-20 – 50 °C |
| Weight & dimensions |
| Weight (with stand) |
1.8 kg |
| Height (with stand) |
240 mm |
| Depth (with stand) |
372 mm |
| Width (with stand) |
143 mm |
| Height |
108 mm |
| Depth |
317 mm |
| Width |
143 mm |
| Packaging content |
| Number of cameras |
1 |
| Logistics data |
| Harmonized System (HS) code |
85258900 |
