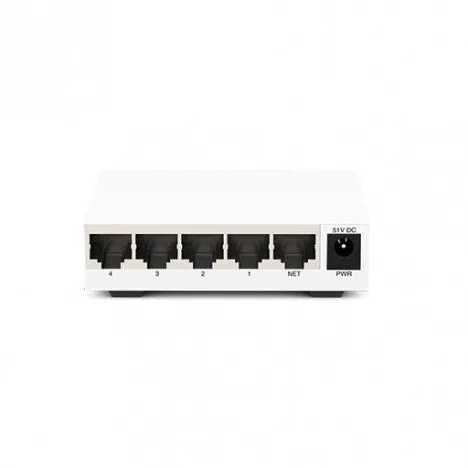

Axis 02101-003 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) White
- 4-port 10/100 Mbps 802.3af/at PoE+; 60 W PoE power budget; Level VI energy efficiency compliance; Palm-sized, metal casing; Plug and play installation
The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Design | |
|---|---|
| LED indicators | Activity, Network, PoE, Power |
| Housing material | Metal |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (max) | 62 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 50 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 172 g |
| Height | 21 mm |
| Depth | 80 mm |
| Width | 90 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Cables included | AC |
| Certificates | |
|---|---|
| Certification | EN 55022:2010/55032:2012 + AC : 2013 Class B,EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581,FCC Part 15 Subpart B Class B, ICES-003 Class B,IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
