Axis 02036-003 video servers/encoder 720 x 576 pixels 30 fps
- 30 fps on all 16 channels; PTZ control; Signed firmware and secure boot; Support for intelligent analytics; Zipstream with support for H.264/H.265

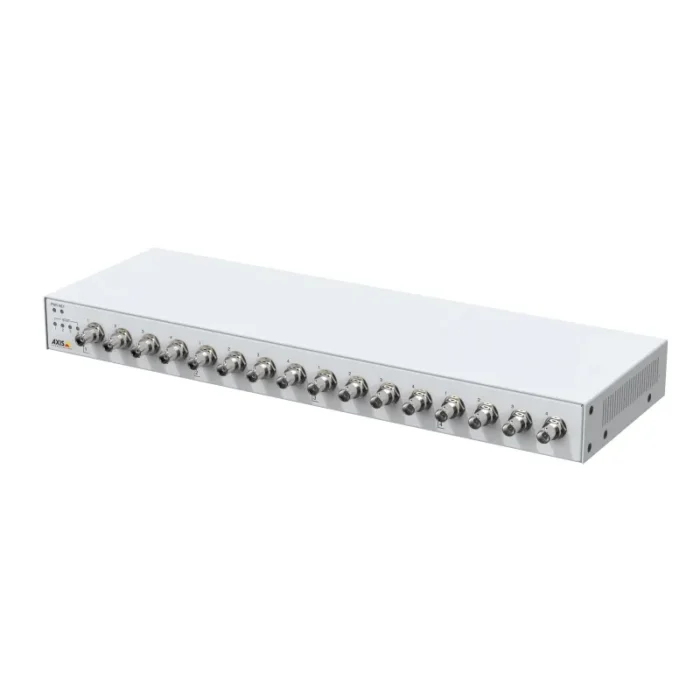

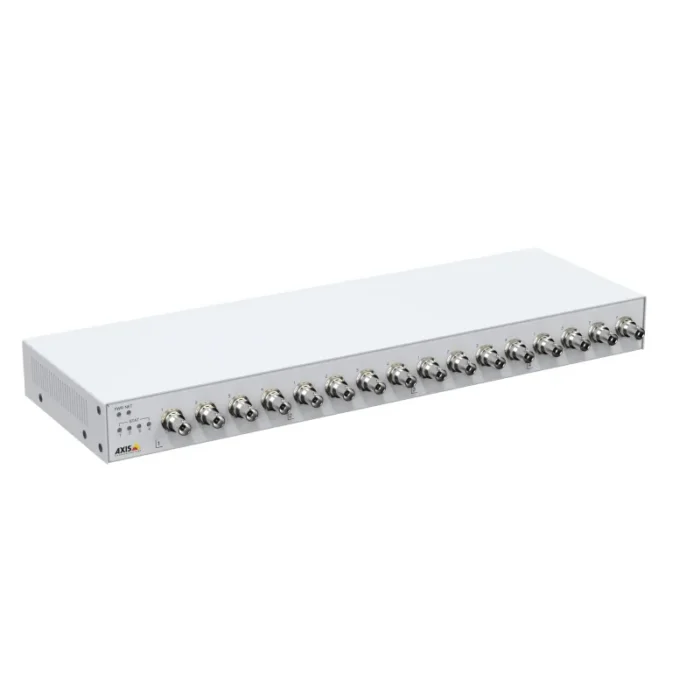

AXIS M7116 is a cost-effective, 16 channel video encoder that adds the benefits of IP surveillance to analog camera systems. It supports standard resolution analog cameras as well as PTZ control over RS-485. This rack-mounted encoder features memory card slots for edge storage as well as support for intelligent analytics such as motion detection and active tampering alarm. Including Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, it offers enhanced security features such as signed firmware and secure boot.
| Video | |
|---|---|
| Channels quantity | 16 channels |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| NTSC resolutions | 720 x 480 pixels |
| PAL resolutions | 720 x 576 pixels |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 720 x 576 pixels |
| Performance | |
|---|---|
| Angle of rotation | 270° |
| Frame rate | 30 fps |
| PTZ control | Yes |
| Resolution | 720 x 576 pixels |
| Firmware upgradeable | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Design | |
|---|---|
| Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B / A,ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A,KC KN32 A, KC KN35IEC/EN/UL 62368-1IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78NIST SP500-267 |
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Grey |
| Network | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Wi-Fi | No |
| Quality of Service (QoS) support | Yes |
| Power over Ethernet (PoE) | No |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, SSH, SSL/TLS |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Password protection type | User |
| Active tampering alarm | Yes |

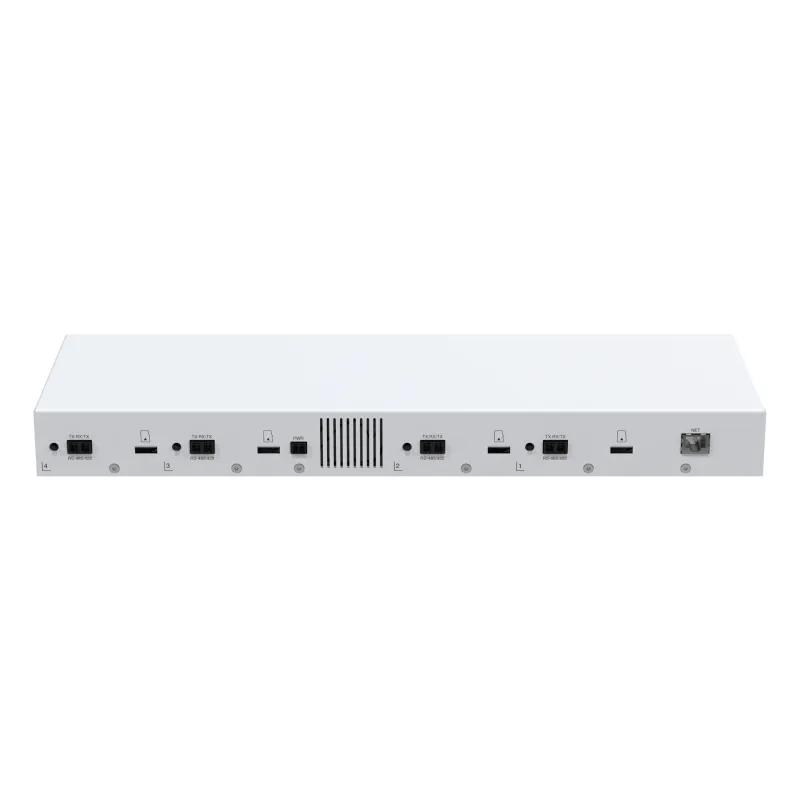

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC input ports | 16 |
| I/O terminal ports | 4 |
| Weight & dimensions | |
|---|---|
| Weight | 2.05 kg |
| Height | 44 mm |
| Depth | 145 mm |
| Width | 440 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Other features | |
|---|---|
| Doesn’t contain | PVC |
