Axagon PCEM2-S interface cards/adapter Internal M.2
- Internal
- Host interface: PCIe
- Output interface: M.2
- NVMe TRIM support
- Purpose: PC
- Black, Red

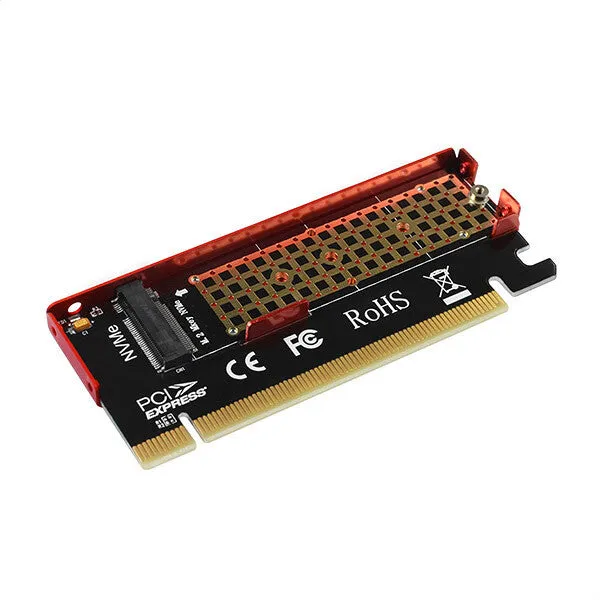

The internal AXAGON PCEM2-S adapter allows to connect the M.2 SSD to a desktop using PCI-Express bus.
High-quality construction, compact dimensions, attractive design and sophisticated cooling make the adapter an ideal choice for upgrading a desktop that is not equipped with any M.2 slot.
The adapter supports the use of both one-sided and double-sided NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a size up to 22×80 mm can be used.
Thanks to PCI-Express 3.0 4-lane interface, a speed as high as 8GBps can be achieved. When compared to SATA SSDs, bit rates of NVMe SSDs are many times higher.

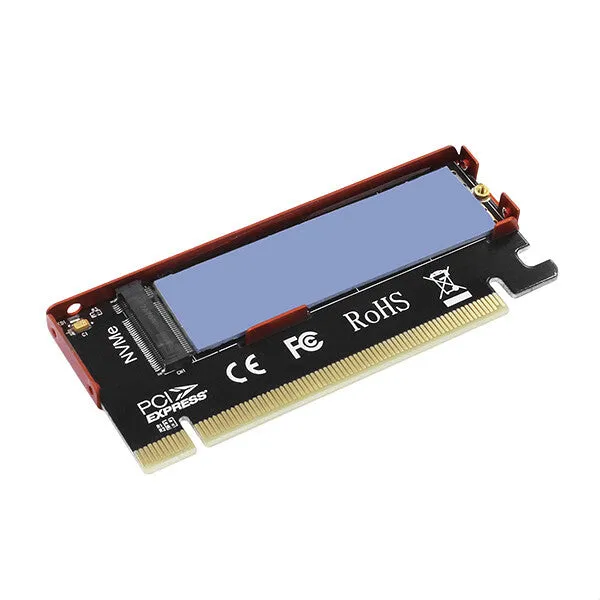

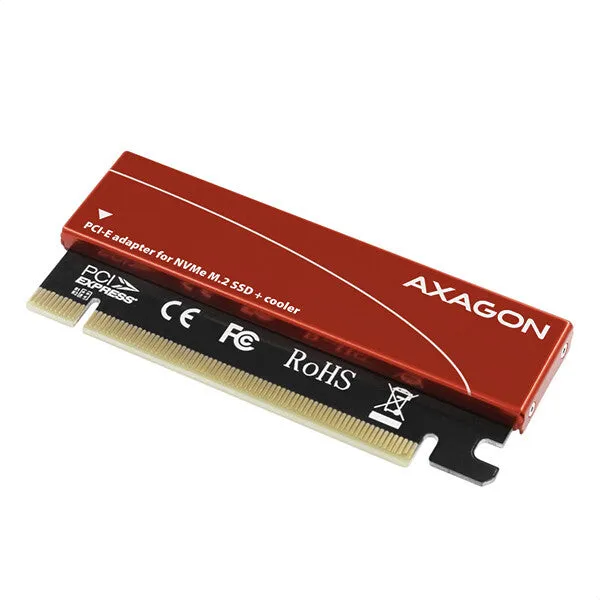

The aluminum cover functioning as a cooler and the attached thermally conductive pads help to cool the M.2 SSD. As a result, an ideal combination of M.2 SSD cooling and heat discharging is achieved.
LED indicates either power on or data transfer in the M.2 slot.
Input:
• PCI-Express 3.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
• Number of 4-Lane lines compatible with x16 PCIe slots.
• Bandwidth of 4-Lane PCI-Express 3.0 bus of up to 8 GB/s (two-way).
Output:
• NGFF 75-pin M-key slot for the installation of NVMe (PCI-Express) of M.2 SSDs.
Other features:
• Full Plug and Play support.
• Support of M.2 drives with a size of 2230, 2242, 2260, and 2280 mm.
• Support of M-key or B+M-key NVMe (PCI-Express) M.2 SSDs drives without limitation of maximum capacity.
• Support of both one-sided and double-sided M.2 drives.
• A better heat discharge thanks to plated vents, thermally conductive pads and aluminum cover.
• Support of booting from SSD card.
• No drivers need to be installed.
• Dimensions 102 x 43 x 8 mm, weight 43 g.
Power supply:
• The adapter is directly supplied from PCI-Express bus; no external power supply is needed.
Supported operating systems:
• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2012 / 2016 (all 32-bit as well as 64-bit versions of OS Windows are supported), Linux with kernel 2.6.31 and higher.
• Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported.
Package contains:
• PCIe adapter for M.2 NVMe (PCI-Express) SSD with the aluminum cover,
• 3 thermally conductive pads,
• mounting material and a screwdriver,
• printed installation manual EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG,
• packed in a cardboard box with clearly indicated parameters.
| Ports & interfaces | |
|---|---|
| Number of M.2 (M) slots | 1 |
| NVMe | Yes |
| Expansion card standard | PCIe 4.0 |
| Expansion card form factor | Low-profile |
| Output interface | M.2 |
| Host interface | PCIe |
| Design | |
|---|---|
| Certification | CE, FCC |
| Country of origin | China |
| LED indicators | Yes |
| Cooling type | Passive |
| Purpose | PC |
| Product colour | Black, Red |
| Internal | Yes |
| Features | |
|---|---|
| Plug and Play | Yes |
| TRIM support | Yes |
| Bandwidth | 8 Gbit/s |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2012, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Weight & dimensions | |
|---|---|
| Weight | 43 g |
| Height | 8 mm |
| Depth | 43 mm |
| Width | 102 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 68 g |
| Package height | 20 mm |
| Package depth | 65 mm |
| Package width | 140 mm |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
