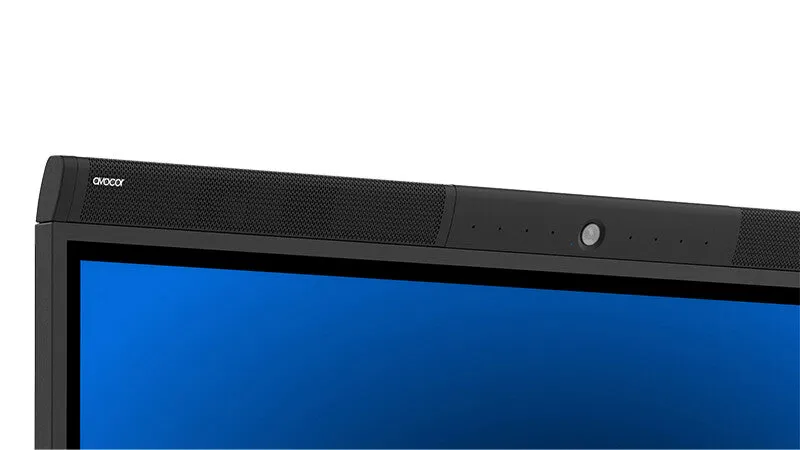

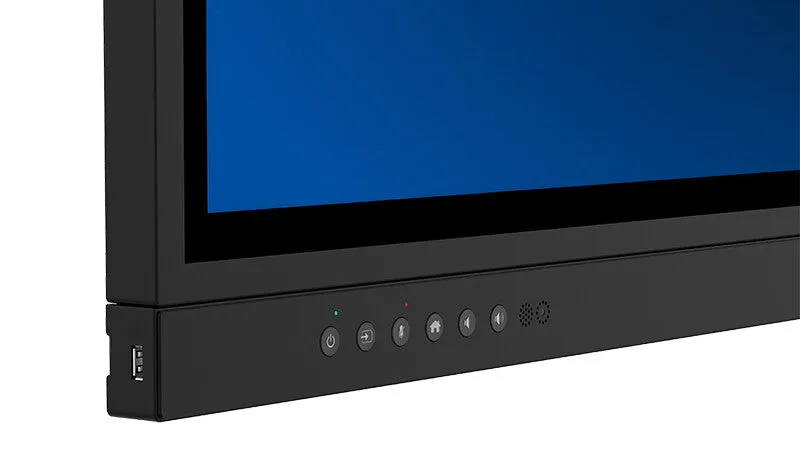

Avocor W series AVW-5555, 55″ InGlass™ All-in-One Interactive Display
- 4K Ultra HD
- 16:9 aspect ratio
- All-in-one solutions with integrated camera, speakers and mic array
- InGlass technology supporting palm rejection and 4 passive styluses
- Zero parallax optically bonded glass surface for pixel-perfect inking
- Presence Detection Sensor
- Single Type-C connectivity delivering audio, video, touch, Ethernet and power
- Microsoft Azure Certified
- Intel OPS PC slot for expanded functionality

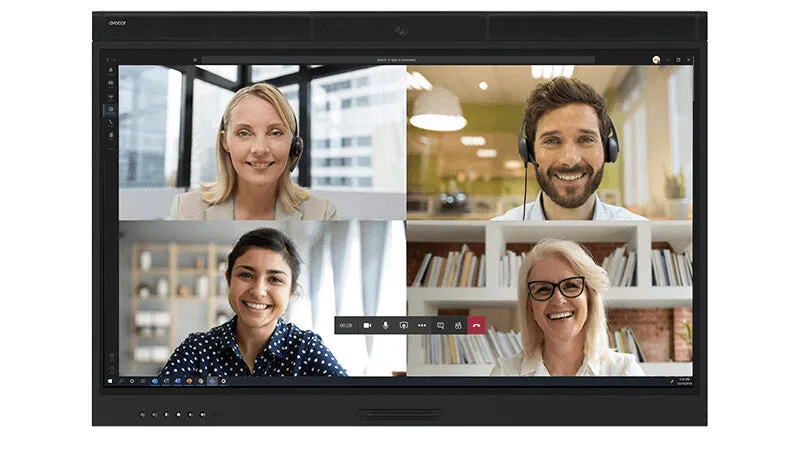

The Avocor W series interactive displays have integrated features and performance to help keep people connected. Ideal for focus and small meeting rooms, corporate and home offices, the all-in-one AVW-5555 offers an integrated, high-quality conference camera with a microphone array and audio optimized for use with UC platforms, including Microsoft Teams, RingCentral, and Zoom, the Avocor W series is the ideal platform to create the perfect video collaboration environment.
| Display | |
|---|---|
| Pen & touch differentiation | Yes |
| Palm rejection | Yes |
| Palm erase | Yes |
| Screen glass thickness | 3 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Number of simultaneous touchpoints | 20 |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-lit LED |
| Anti-glare screen | Yes |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| Display diagonal | 139.7 cm (55″) |
| Audio | |
|---|---|
| Number of microphone arrays | 4 |
| Built-in microphone | Yes |
| Speaker power | 40 W |
| Number of built-in speakers | 4 |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| S/PDIF out port | Yes |
| OPS slot | 1 |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB Power Delivery up to | 60 W |
| USB Power Delivery (USB PD) | Yes |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| USB Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 2.0 Type-B Touch ports quantity | 2 |
| Ergonomics | |
|---|---|
| Power cable length | 3 m |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Temperature sensor | Yes |
| Proximity sensor | Yes |
| Ambient light sensor | Yes |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 310 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 8 |
| Mac compatibility | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 45.3 kg |
| Height | 863 mm |
| Depth | 102 mm |
| Width | 1280 mm |
| Packaging data | |
|---|---|
| Package weight | 59.2 kg |
| Package height | 1026 mm |
| Package depth | 260 mm |
| Package width | 1495 mm |
| Packaging content | |
|---|---|
| Stylus tip diameter | 3 mm |
| Number of stylus pens | 2 |
| Stylus pen type | Passive |
| Stylus included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| USB cable length | 3 m |
| General | |
|---|---|
| Product family | W series |
| Other features | |
|---|---|
| Country of origin | Taiwan |
| Warranty period | 3 year(s) |
