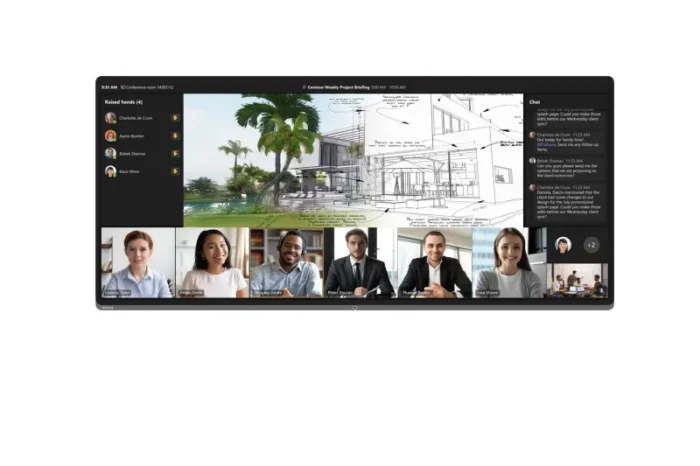

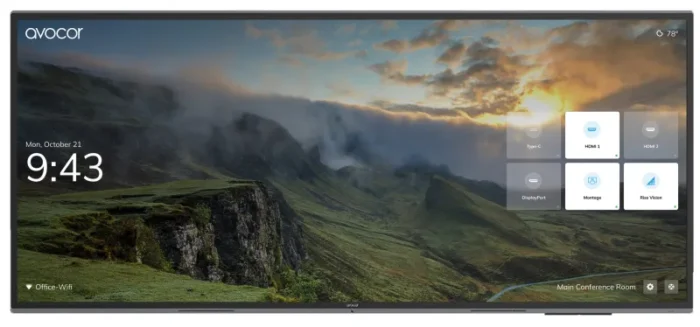

Avocor L Series 105” 5K Pcap LED Interactive Display
- Ultra-wide 105″ Displays
- 5K Ultra HD
- 21:9 aspect ratio
- PCAP with 40 point touch
- Sleek design with an ultra-thin Bezel
- Presence Detector Sensor
- Intel OPS PC slot for expanded functionality
- Avocor UiQ – smart touch enabled dynamic user interface
- FUSE – Remote management software platform for AV/IT Managers
- Includes wall mount
The unique 21:9 aspect ratio provides increased width for a more usable interactive area. The smooth, highly responsive projected-capacitive touch features high durability, and excellent optical performance, bringing whiteboarding to a new level with a superior multi-touch experience.
| Display |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Number of simultaneous touchpoints |
40 |
| Touchscreen type |
Capacitive |
| Touch technology |
Multi-touch |
| Maximum refresh rate |
60 Hz |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
4000:1 |
| Native aspect ratio |
21:9 |
| LED backlighting type |
Direct-LED |
| Panel type |
LCD |
| LED backlight |
Yes |
| HD type |
5K Ultra HD |
| Anti-glare screen |
Yes |
| Display resolution |
5120 x 2160 pixels |
| Display brightness |
400 cd/m² |
| Display diagonal |
2.67 m (105″) |
| Audio |
| Built-in subwoofer |
Yes |
| Speaker power |
32 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Network |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Antenna type |
1×1 |
| Wi-Fi |
Yes |
| Ports & interfaces |
| RS-232 ports |
1 |
| S/PDIF out port |
Yes |
| OPS slot |
1 |
| Line-out |
Yes |
| Line-in |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDMI output ports quantity |
1 |
| USB Type-C ports quantity |
1 |
| HDMI ports quantity |
4 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB 2.0 Type-B Touch ports quantity |
3 |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Ergonomics |
| Fanless |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
1000 x 400 mm |
| VESA mounting |
Yes |
| Product colour |
Brushed steel |
| Performance |
| Proximity sensor |
Yes |
| Ambient light sensor |
Yes |
| Power |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
600 W |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac compatibility |
Yes |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
20 – 90% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
99 kg |
| Height |
1123.3 mm |
| Depth |
96.3 mm |
| Width |
2510.6 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
138 kg |
| Package height |
1255 mm |
| Package depth |
425 mm |
| Package width |
2703 mm |
| Packaging content |
| Number of stylus pens |
2 |
| Stylus pen type |
Passive |
| Stylus included |
Yes |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Mounting brackets included |
Yes |
| Quick start guide |
Yes |
| Cables included |
HDMI, USB Type-C to USB Type-C |
| Other features |
| Country of origin |
China |
| Warranty period |
1 year(s) |
