ATEN VK0200TTK-AT other input device Keypad RJ-45 White

• Supports various interface connections:
• 2 x RS-232 ports
• 2 x Relay channels
• 1 x Digital input channel
• 1 x Ethernet port
• Designed to mount in 2-gang EU-type and MK-type junction boxes
• Fully customizable with 125 layout combinations of 6 to 12 buttons

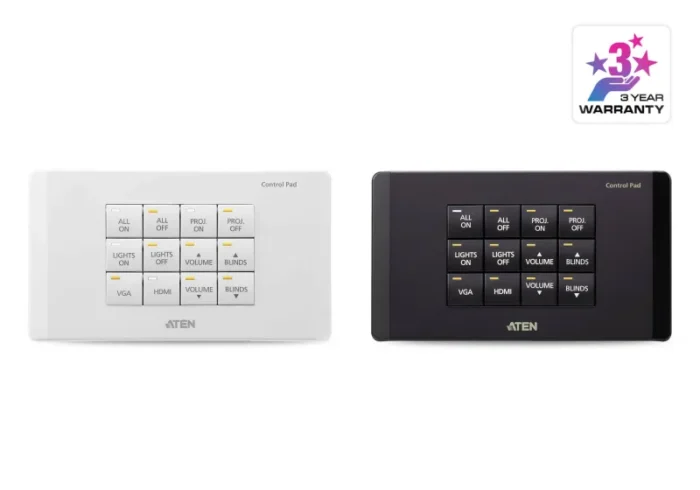

• Available in black or white color
• Supports native KNX IP for building management systems
• TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
• Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
• Supports Telnet CLI (command-line interface) mode for third-party system integration
• Supports project file backup1
• Web GUI for easy system configuration
• Supports SSH communication for data monitoring2
• LED indication of connection and hardware status
• Dual-color LEDs for clear indication in dark environments

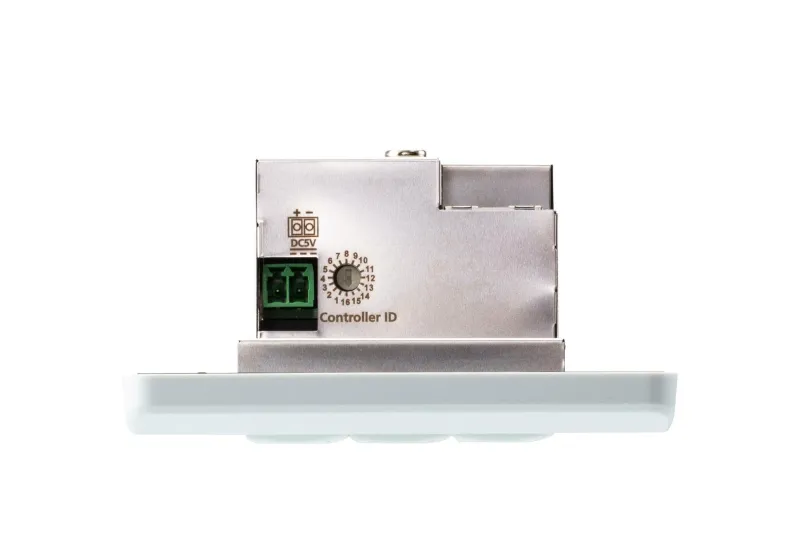

• Dual power supplies – Power over Ethernet (PoE) and DC 5V (optional)
• Customized button engraving service
• Allows for remote control via mobile device3
• Flexible installation is made easier with the keypad tabletop kit (VK0200TTK), allowing for device mounting on the table or to the wall

The VK0200 is a fully-customizable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0200 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfill most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the local network, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad, you have instant and smart control of the facilities from a Control Pad that can manage any device in the room.

Note: This model is also available in black color – Part number: VK02001, which is a built-to-order product. To place an order, please contact your regional ATEN representative.

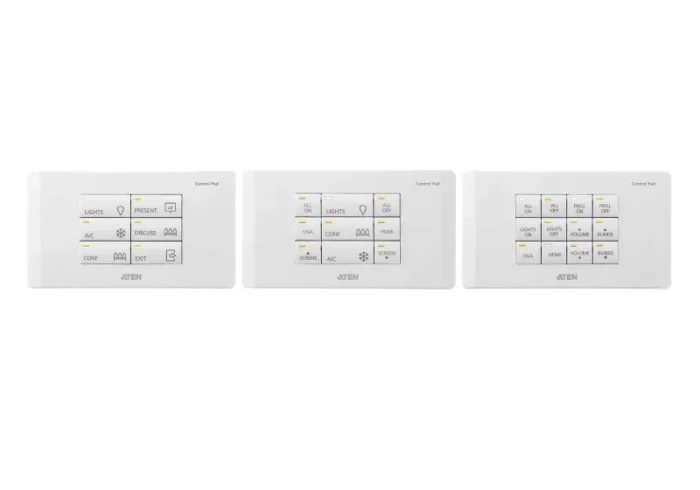

Keypad Layout Example
Custom button placement on the Control Pad can be set in 125 different combinations of 6 to 12 buttons. The example above shows the 12 most commonly used.

Flexible mounting on the flat surface or to the wall via VK102 or VK0200TTK
ATEN has released VK102, an ergonomically designed, EU-type, 2-Gang tabletop kit compatible with the VK0200, to further enhance the ease-of-use. VK102 can be sold separately or bundled with VK0200 as VK0200TTK.
