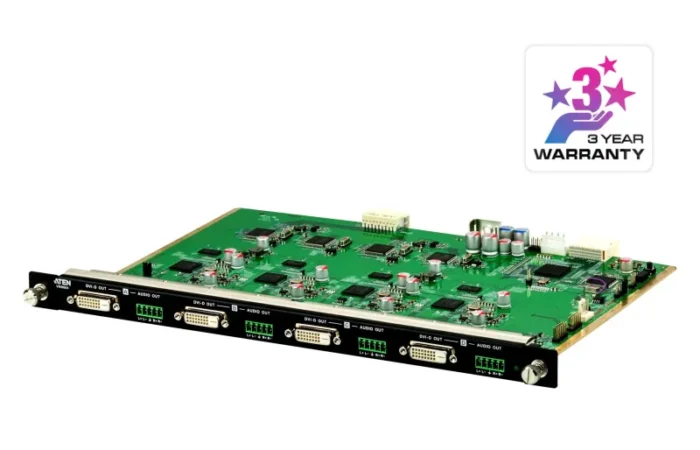

ATEN 4-Port DVI output Board for the VM1600 / VM3200
- Superior video quality – up to 1920 x 1200 @ 60Hz
- Built-in scaler on each output port to support the scaling function for different video resolutions
- Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission
- Audio-enabled
The VM8604 4-Port DVI Output Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN’s Modular Matrix Switch.
1x VM8604 4-Port DVI Output Board with Scaler
4x JCNT-3301-105G Terminal Block connectors
1x User Instructions
| Design |
| Material |
Metal |
| Product colour |
Black, Green |
| Product type |
Output board |
| Ports & interfaces |
| DVI ports quantity |
4 |
| Power |
| Power consumption (typical) |
20.1 W |
| Weight & dimensions |
| Weight |
590 g |
| Height |
23.3 mm |
| Depth |
352 mm |
| Width |
238 mm |
| Packaging data |
| Package weight |
970 g |
| Package height |
57 mm |
| Package depth |
426 mm |
| Package width |
285 mm |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Operating temperature (T-T) |
0 – 40 °C |
| Logistics data |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case gross weight |
2.29 kg |
| Master (outer) case length |
440 mm |
| Master (outer) case width |
300 mm |
| Master (outer) case height |
138 mm |
| Master (outer) case net weight |
1.18 kg |
