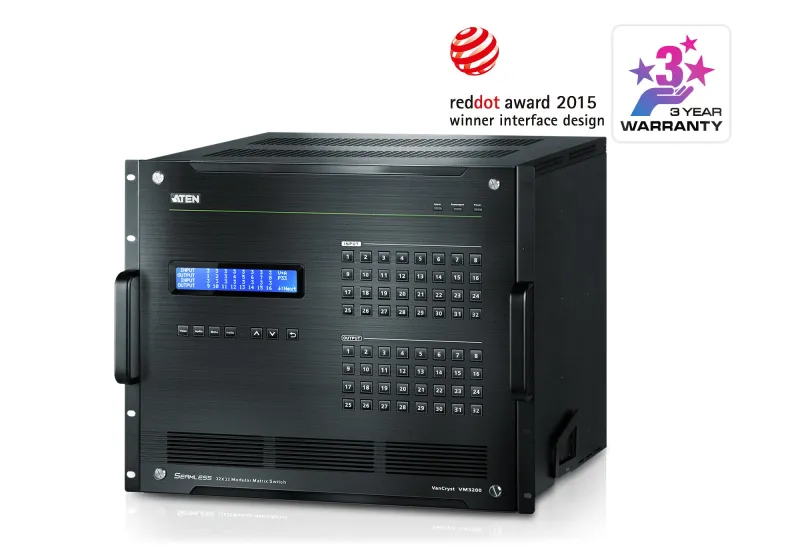

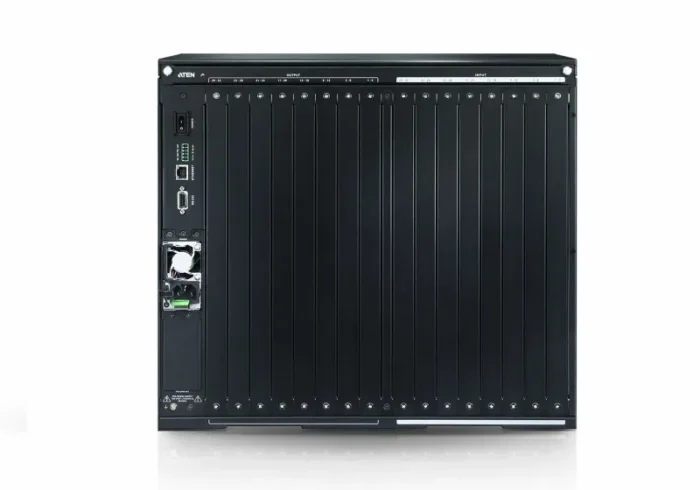

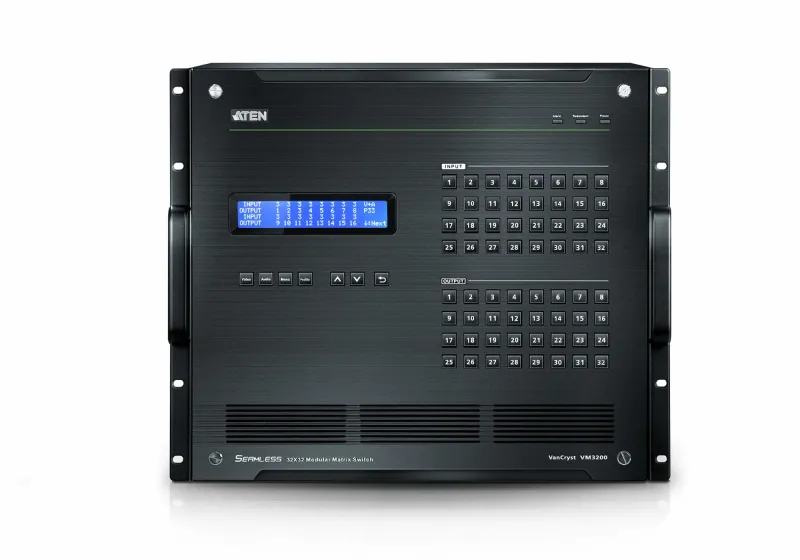

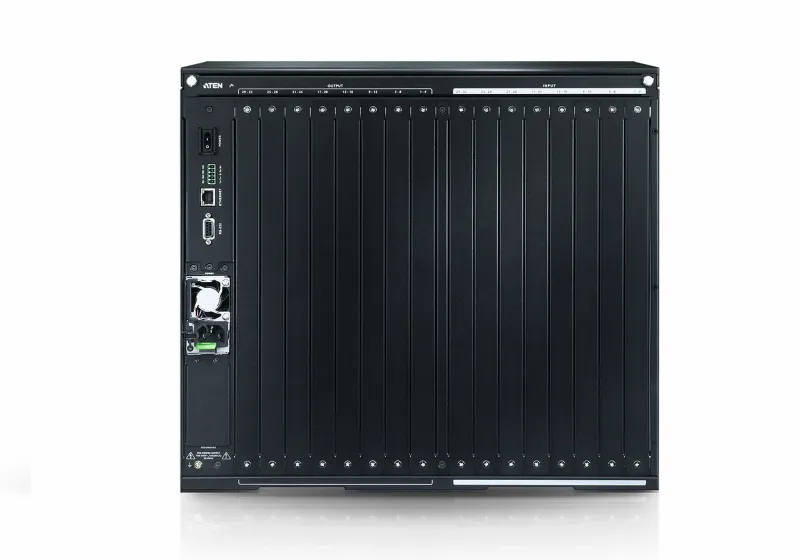

ATEN 32×32 Digital Modular Matrix – Chassis Only / 9U – High

• Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
• Supports 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
• Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
• Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
• Video Wall –allows you to create custom video wall layouts via intuitive web GUI
• Live Streaming –supports single source live streaming via web GUI for convenient evaluation of display output
• Content and Layout Preview –displays thumbnails of source media in web GUI, simplifying profile configuration
• EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
• Audio-enabled –HDMI audio can be extracted, and stereo audio can be embedded (HDMI I/O boards)
• Calendar-based scheduling –allows profile playing based on the pre-set schedule and RTC
• Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections
• View and control via ATEN Video Matrix Control App in a swift and agile way
• Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
• Flexible system expandability via hot-swappable tool-free installation of I/O boards
• Optional redundant power supply –ensures reliability for mission-critical applications
• Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
• HDCP 2.2 Compatible
• HDMI: 3D, Deep Color, 4K
• Consumer Electronics Control (CEC) supported
• ESD protection for HDMI
• Rack mountable (9U design)

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
1x VM3200 32 x 32 Modular Matrix Switch
1x Power Module
1x LIN2-418K-E12G Power Cord
1x JCNT-3301-105G Terminal Block connector
1x VM-FAN556 Fan Module (pluggable)
1x VM-PWR-800 Power Module (pluggable)
1x User Instructions

• leaflet
