ASUS Zenbook Duo UX8406MA-QL207W Intel Core Ultra 7 155H Hybrid (2-in-1) 35.6 cm (14″) Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 1 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Home Grey
- Windows 11 Home
- Intel® Core™ Ultra 7 processor
- Thin and light: 14.6 mm, 1.65 kg

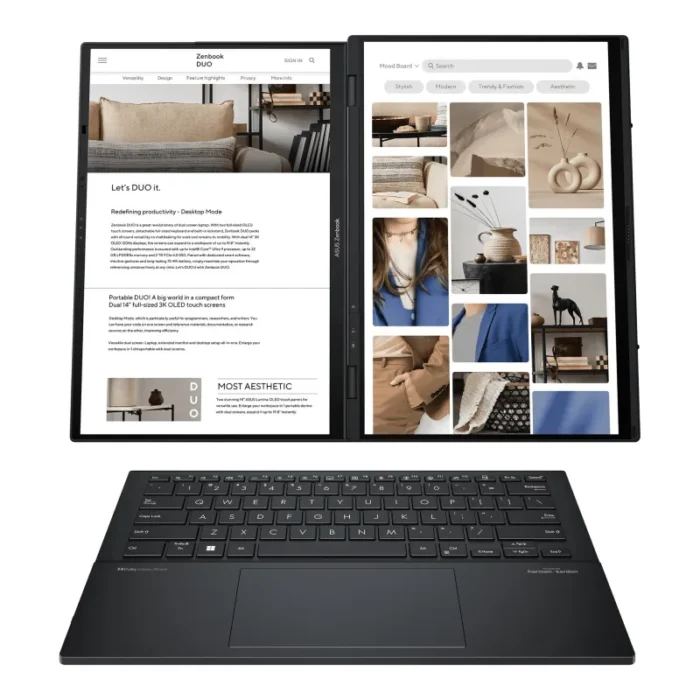

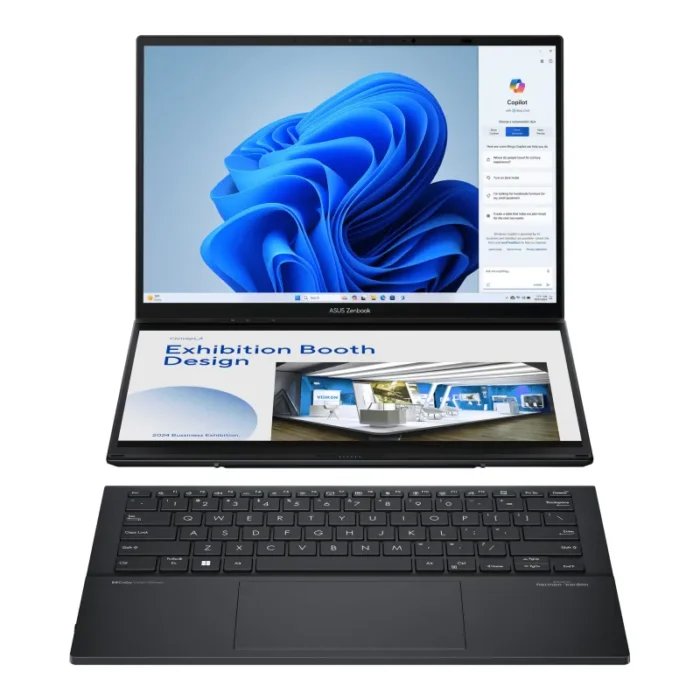

- Dual 14” 3K 120 Hz OLED touchscreens
- Versatile modes: Laptop Mode, Dual Screen Mode, Sharing Mode and Desktop Mode
- Effective gestures and smart software
- 16 GB LPDDR5x RAM and 1 TB SSD
- 75 Wh battery
Let’s DUO it
ASUS Zenbook DUO is a revolutionary dual-screen laptop, with two full-size OLED touchscreens, detachable full-size keyboard and built-in kickstand, — expertly combining multitasking versatility with superb mobility. With dual 14-inch 3K OLED 120 Hz displays, you can instantly expand your workspace to up to 19.8 inches. Outstanding performance is assured with up to an AI-powered Intel® Core™ Ultra 7 processor and 16 GB LPDDR5x memory, plus a 1 TB PCIe® 4.0 SSD. Paired with dedicated smart software, intuitive gesture control and an enhanced-lifespan 75 Wh battery, the easy-to-use Zenbook DUO maximises productivity, with zero fuss. Come on — Let’s DUO it.
| Design |
| Market positioning |
Home |
| Form factor |
Convertible (Detachable) |
| Colour name |
Inkwell Gray |
| Product colour |
Grey |
| Product type |
Hybrid (2-in-1) |
| Display |
| High Dynamic Range (HDR) supported |
Yes |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
400 cd/m² |
| Display surface |
Gloss |
| Native aspect ratio |
16:10 |
| Panel type |
OLED |
| HD type |
WUXGA |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor cores |
16 |
| Processor model |
155H |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
16 GB |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Audio system |
Smart Amp |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Keyboard |
| Numeric keypad |
No |
| Pointing device |
Touchpad |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Battery capacity |
75 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
3.25 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
65 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
EPEAT Gold, ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
1.99 cm |
| Height (front) |
1.46 cm |
| Depth |
217.9 mm |
| Width |
313.5 mm |
| Weight |
1.65 kg |
| General |
| Product family |
Zenbook |
| Product series |
Duo |
| Packaging content |
| Stylus pen |
Yes |
