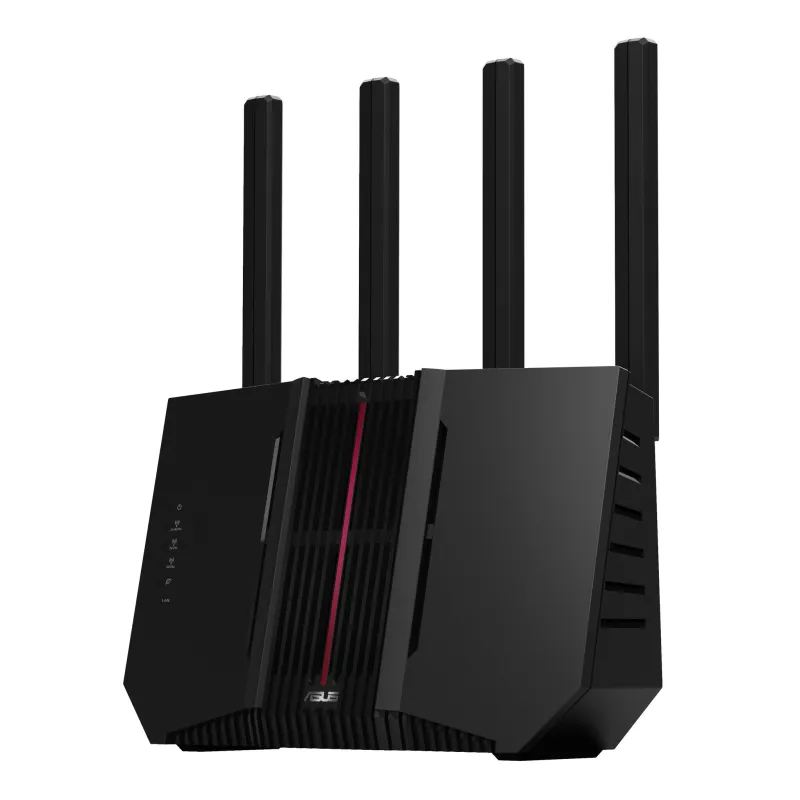

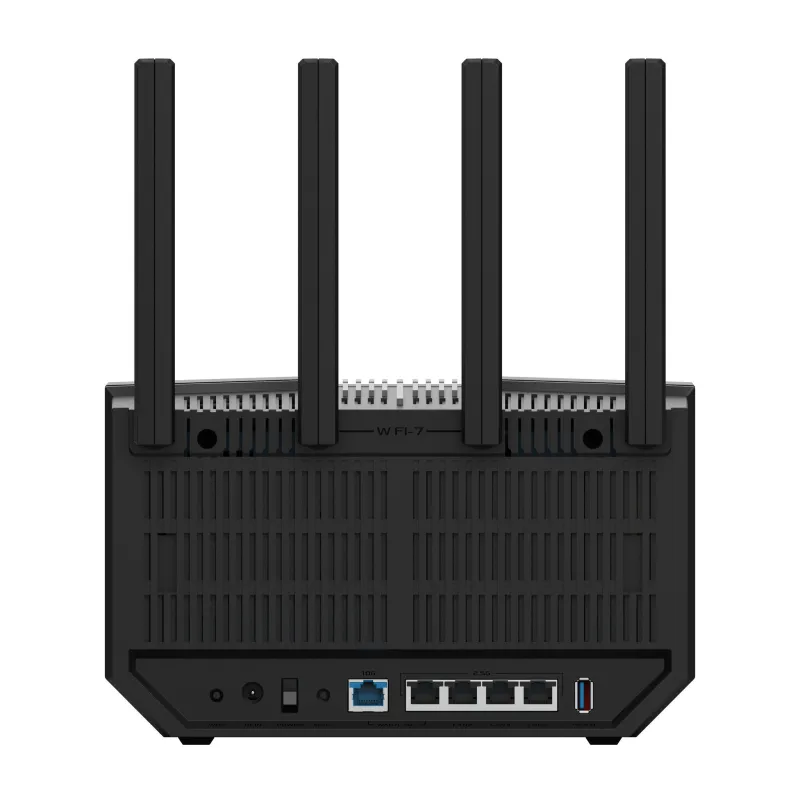

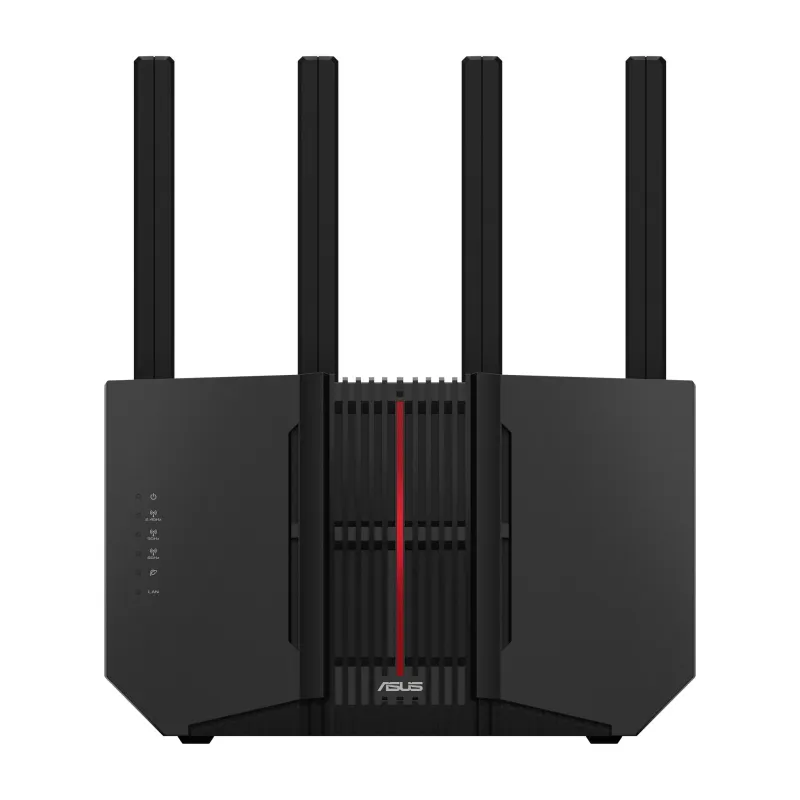

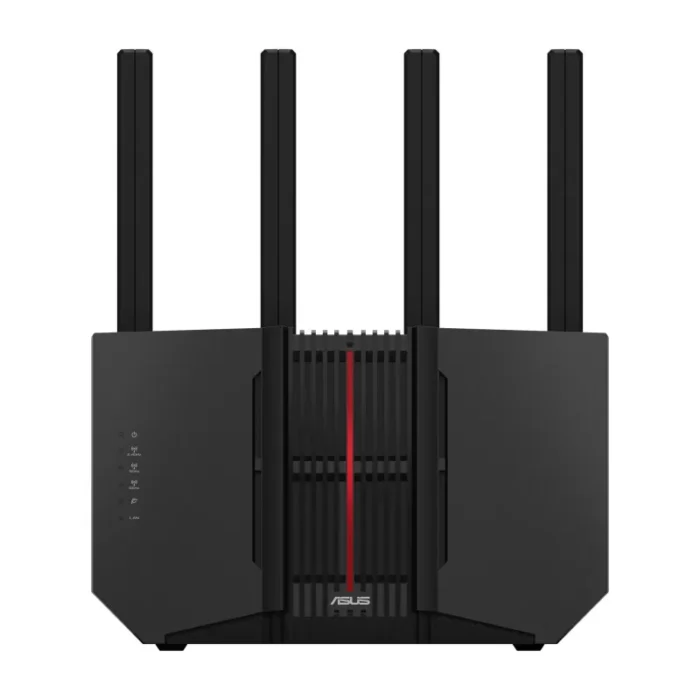

ASUS RT-BE92U wireless router 10 Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
- Beyond-fast WiFi 7 (802.11be) – New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
- Multi-link Operation – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Versatile WAN configuration options – Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering
- Smart Home Master – Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls
- Subscription-free network security – Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
- Comprehensive VPN features – Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
- Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features
BE9700 Tri-band WiFi 7 Router, supports new 320MHz bandwidth & 4096-QAM, Multi-link operation (MLO), AI WAN detection, AiMesh support, subscription-free network security, and comprehensive VPN features, Smart Home Master
- Beyond-fast WiFi 7 (802.11be) – New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
- Multi-link Operation – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Versatile WAN configuration options – Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering.
- Smart Home Master – Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
- Subscription-free network security – Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
- Comprehensive VPN features – Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
- Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features.
| WAN connection |
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
| WLAN data transfer rate (third band) |
5764 Mbit/s |
| WLAN data transfer rate (second band) |
2882 Mbit/s |
| WLAN data transfer rate (first band) |
1032 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
5764 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Network |
| Media server |
Yes |
| VPN server |
VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard |
| Support Samba (storage) |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
| Ethernet LAN interface type |
10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| Management features |
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Bandwidth control |
Yes |
| Web-based management |
Yes |
| Security |
| NAT functionality |
PPTP Pass-ThroughL2TP Pass-ThroughIPSec Pass-ThroughRTSP Pass-ThroughH.323 Pass-ThroughSIP Pass-ThroughPPPoE Relay |
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| URL filtering |
Yes |
| MAC address filtering |
Yes |
| MAC address table |
64 entries |
| Filtering |
Yes |
| Parental control |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA, WPA2, WPA3-Personal |
| Protocols |
| DHCP server |
Yes |
| Design |
| On/off switch |
Yes |
| LED indicators |
LAN, Power, WAN |
| Indication light |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Product type |
Tabletop router |
| Packaging content |
| Packaging content |
RT-BE92U WiFi 7 Tri-band Routerwall mount kitRJ-45 cablePower AdapterQuick Start GuideWarranty Card |
| Quick start guide |
Yes |
| Warranty card |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
| Antennas quantity |
4 |
| Antenna design |
External |
| Features |
| Firmware upgradeable |
Yes |
| Flash memory |
256 MB |
| Internal memory type |
DDR4 |
| Internal memory |
1000 MB |
| Processor cores |
4 |
| Processor frequency |
2 MHz |
| Built-in processor |
Yes |
| Power |
| Output current |
3 A |
| Output voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
110 – 240 V |
| Power source type |
DC |
| Weight & dimensions |
| Width |
247.2 mm |
| Depth |
101.6 mm |
| Height |
287.5 mm |
| Weight |
790 g |
| Packaging data |
| Package type |
Box |
| Package weight |
2.1 kg |
| Package height |
105 mm |
| Package depth |
219 mm |
| Package width |
374 mm |
