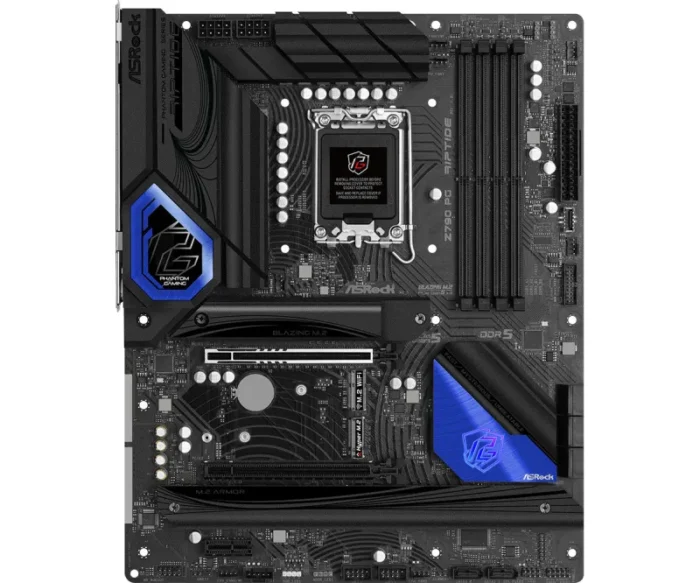

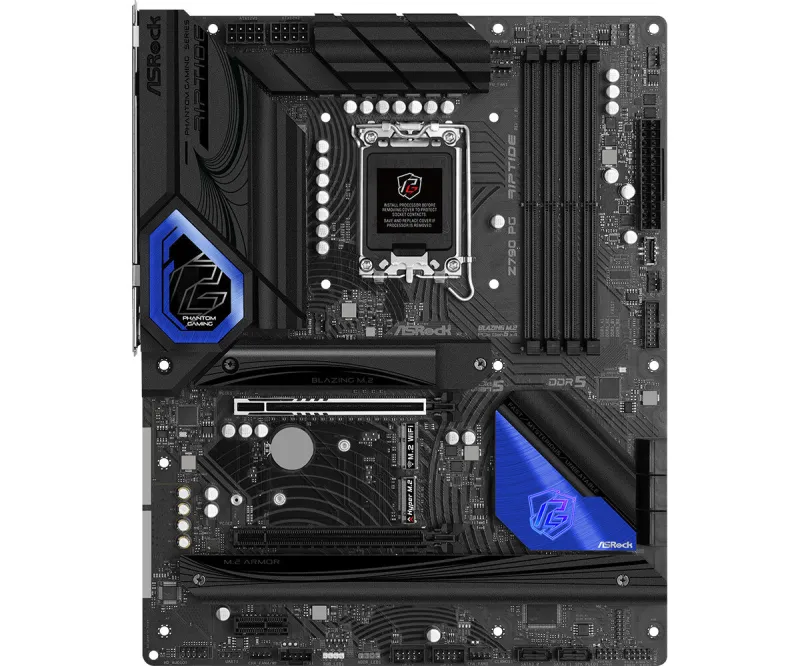

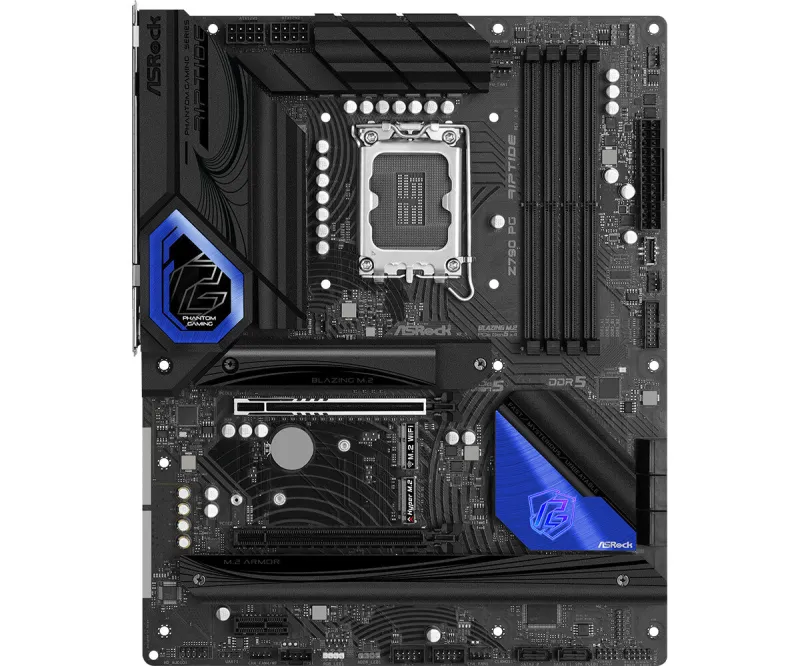

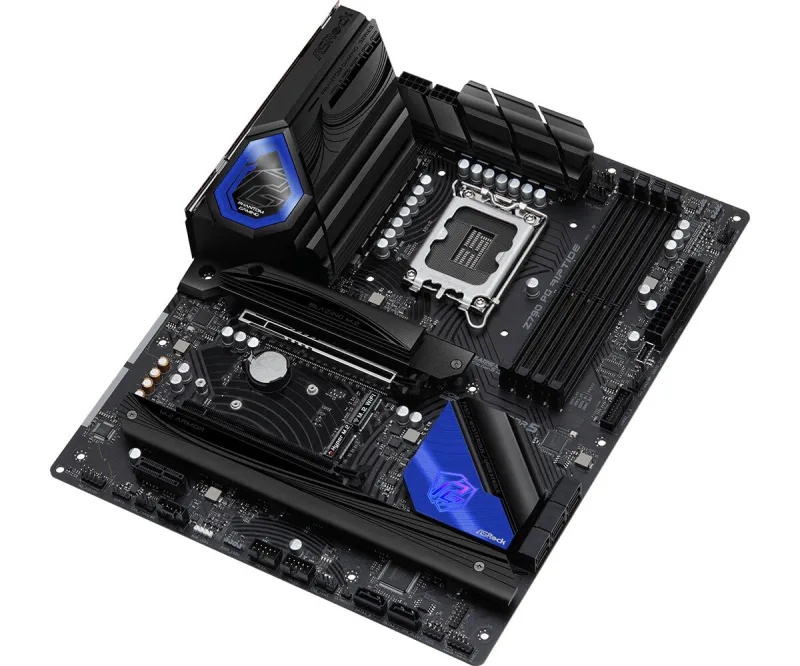

Asrock Z790 PG Riptide Intel Z790 LGA 1700 ATX
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 6800+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Killer 2.5G LAN
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
14+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
| Processor |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Internal I/O |
| RGB LED pin header |
Yes |
| TPM connector |
Yes |
| Thunderbolt headers |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
8 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| LAN controller |
Killer E3100G |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel Z790 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
305 mm |
