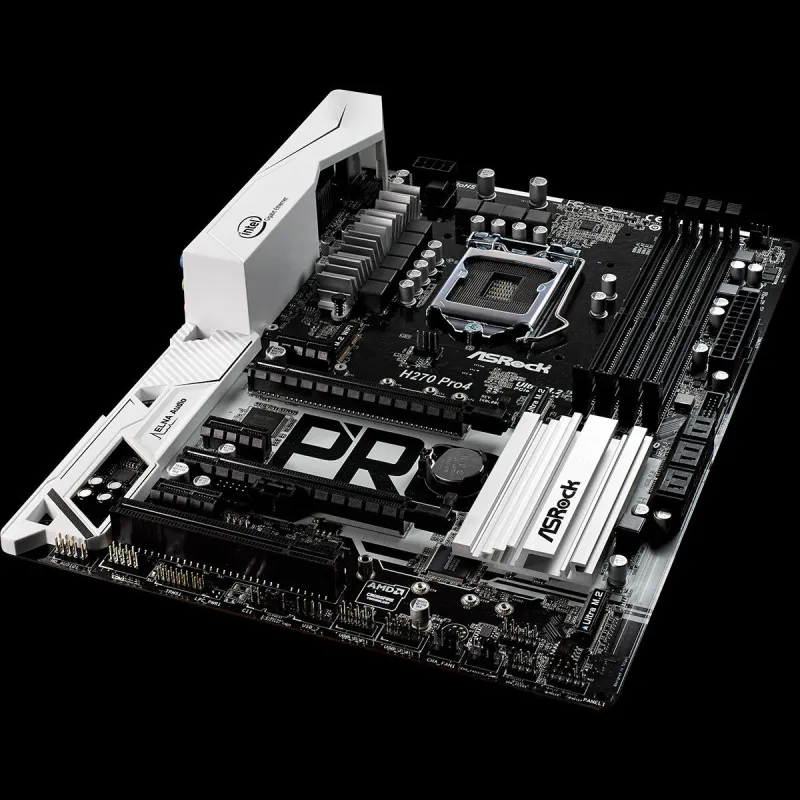

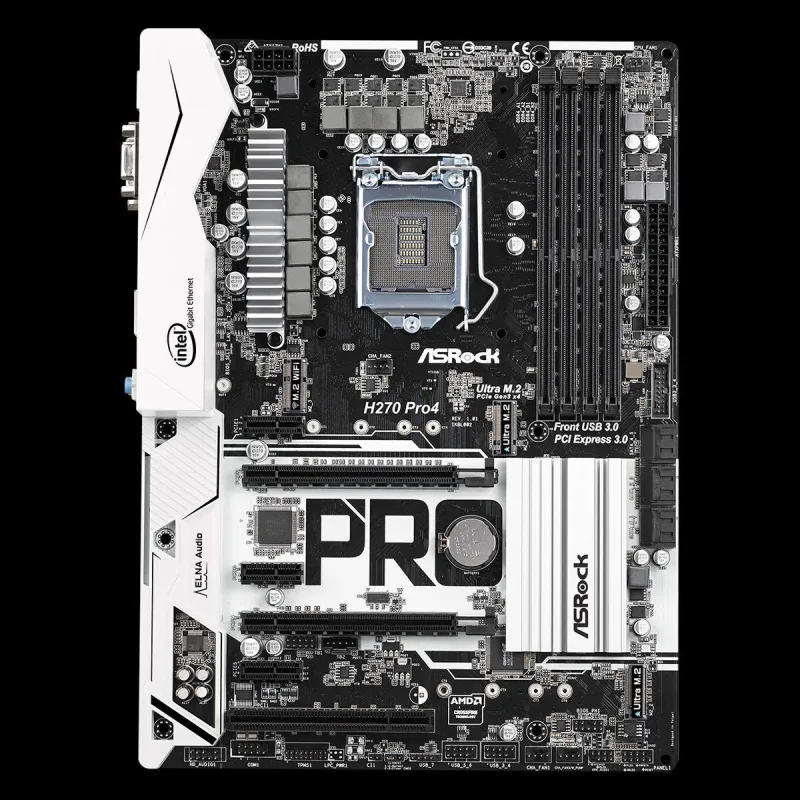

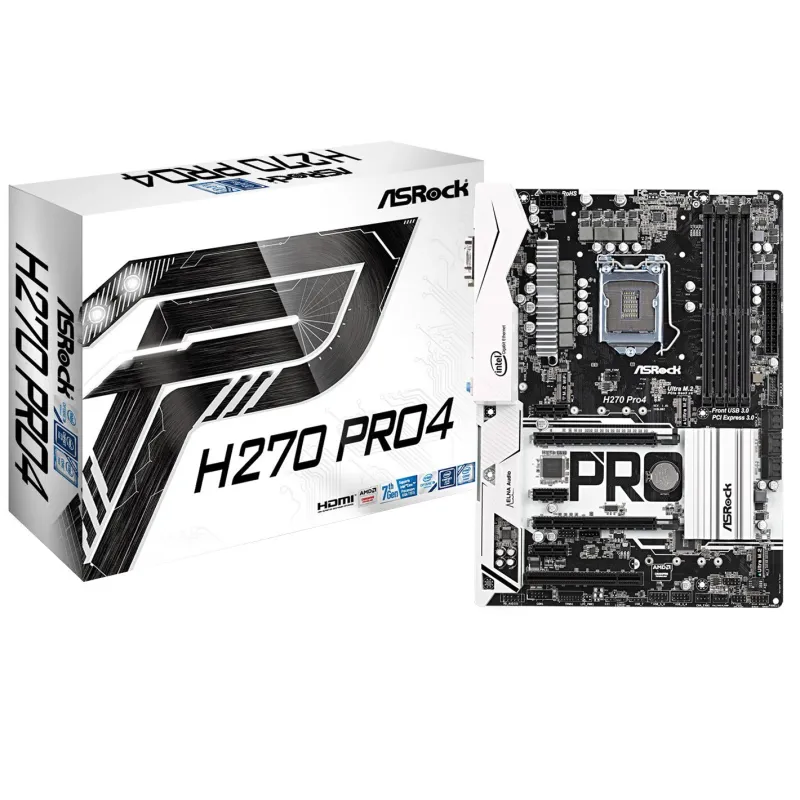

Asrock H270 Pro4 Intel® H270 LGA 1151 (Socket H4) ATX
- Intel LGA 1151 (Socket H4) Intel® Celeron®
- PC ATX Intel® H270 7.1 channels
- DDR4-SDRAM 4 DIMM Maximum internal memory: 64 GB
- M.2, SATA III, Thunderbolt
- 1024
- ACPI version: 6.0
- Wi-Fi
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redenes a new standard of high performance and responsiveness.
| Processor | |
|---|---|
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
| Compatible processor series | Intel® Celeron® |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive interfaces | M.2, SATA III, Thunderbolt |
| Graphics | |
|---|---|
| Number of displays supported | 3 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum graphics card memory | 1024 MB |
| Internal I/O | |
|---|---|
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| Number of SATA connectors | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 7 |
| Rear panel I/O ports | |
|---|---|
| COM ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Certification | FCC, CE, WHQL, ErP/EuP |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64 |
| Power source type | ATX |
| PC health monitoring | Voltage |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel® H270 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| PCI slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| BIOS | |
|---|---|
| ACPI version | 6.0 |
| Processor special features | |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Ethernet LAN connectors | 1 |
- Dual Ultra M.2 For SSD
