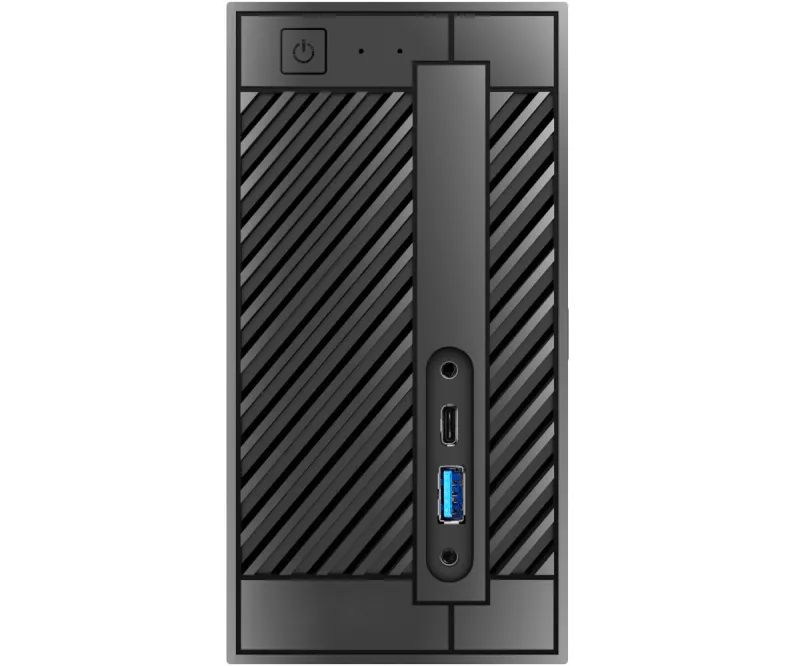

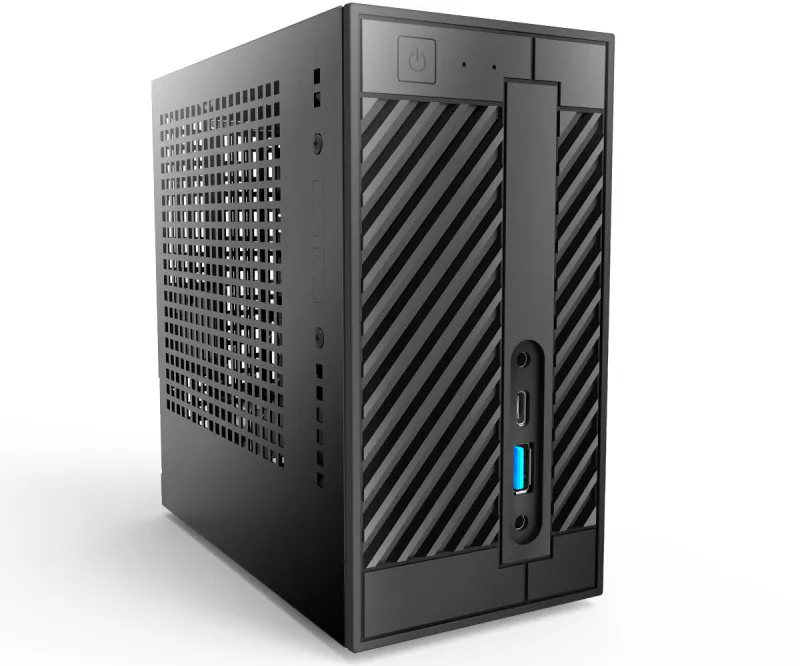

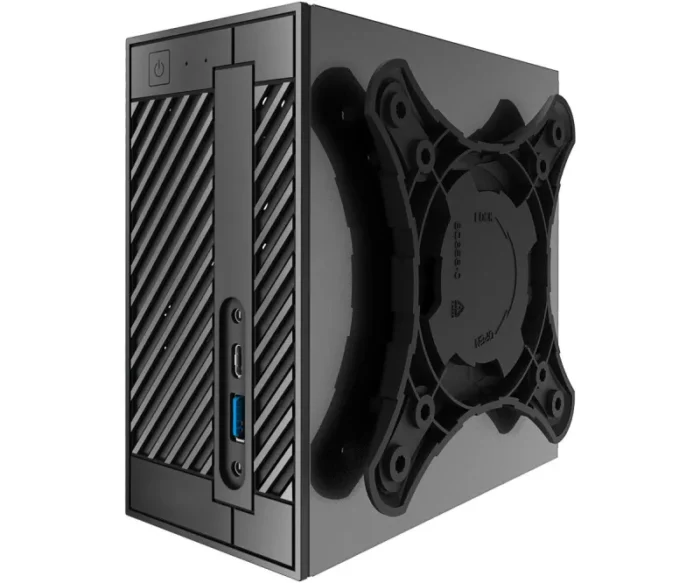

Asrock DeskMini 310 Black Intel® H310 LGA 1151 (Socket H4)
- Supports Intel® 8th Core™ / Pentium® / Celeron® LGA1151 processors
- Dual DDR4 SO-DIMMs, up to 32GB
- Triple Video outputs: DisplayPort, HDMI & D-Sub
- 1 x Ultra M.2 PCIe Gen3 x4 Slot
- 2 x 2.5″ HDD/SSD Tray
- 1 x M.2 (2230) Wi-Fi Slot
- USB 3.1 Gen1 Type-C port
- Micro SD Card Reader
Smaller Size, Better Performance
Brand New DeskMini 310 supports Intel® 8th Gen Processors. Offering up to 72.6% CPU performance compare to previous generation.
The Small Big
DeskMini 310 features with under 2 liter size with desktop performance, offering big space to you.
Supports Intel® Box Fans
The world’s first Mini-STX build that supports standard Intel® box fans.
The Mini Socket Technology Extended (Mini-STX) form factor adds the flexibility to support Intel® LGA CPU socket-based Intel® processors in the mini PC segment.
Micro SD Card Reader
H310M-STX implement Micro SD Card Reader offering extra storage buffer or Linux based OS drive.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

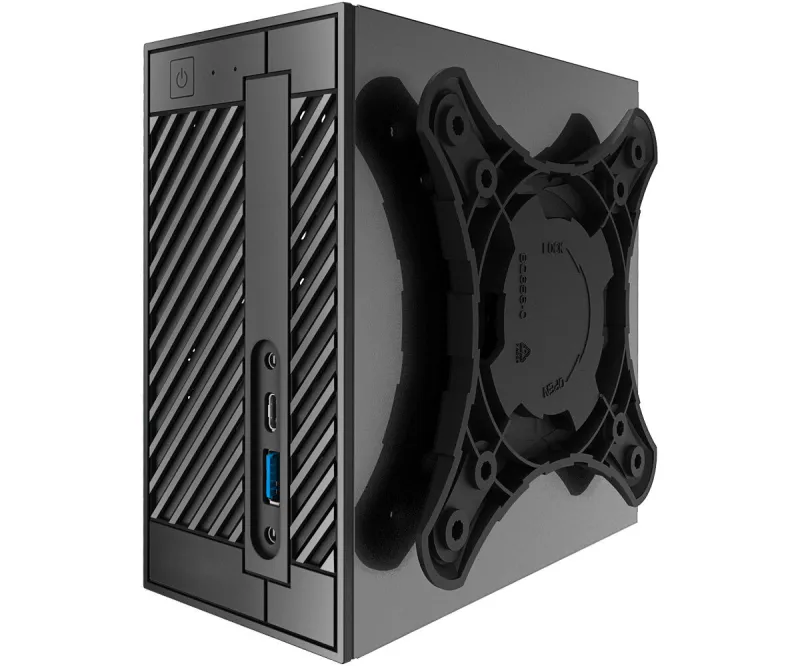

VESA Mount Kit
Lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
| Processor | |
|---|---|
| Built-in processor | No |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2666 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| M.2 card size | 2280 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Number of storage drives supported | 3 |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Intel® I219-V |
| Copper ethernet cabling technology | 1000BASE-T |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Number of SATA III connectors | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cooling type | Active |
| Product colour | Black |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel Pentium G |
| Number of processors supported | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Motherboard chipset | Intel® H310 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC adapter output voltage | 19 V |
| Number of power supply units | 1 |
| Power supply | 120 W |
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 35 °C |
| Weight & dimensions | |
|---|---|
| Height | 80 mm |
| Depth | 155 mm |
| Width | 155 mm |
