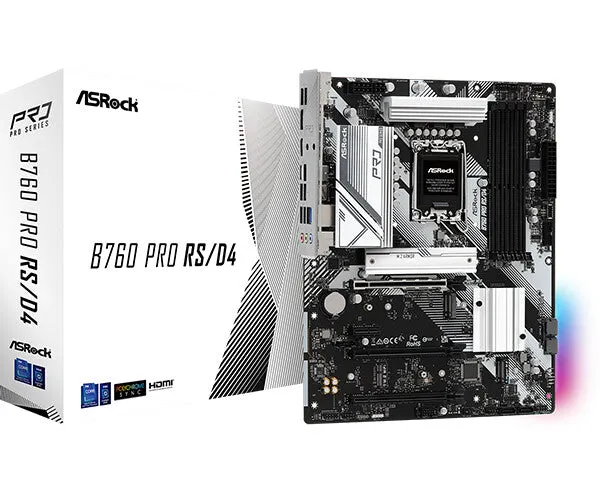

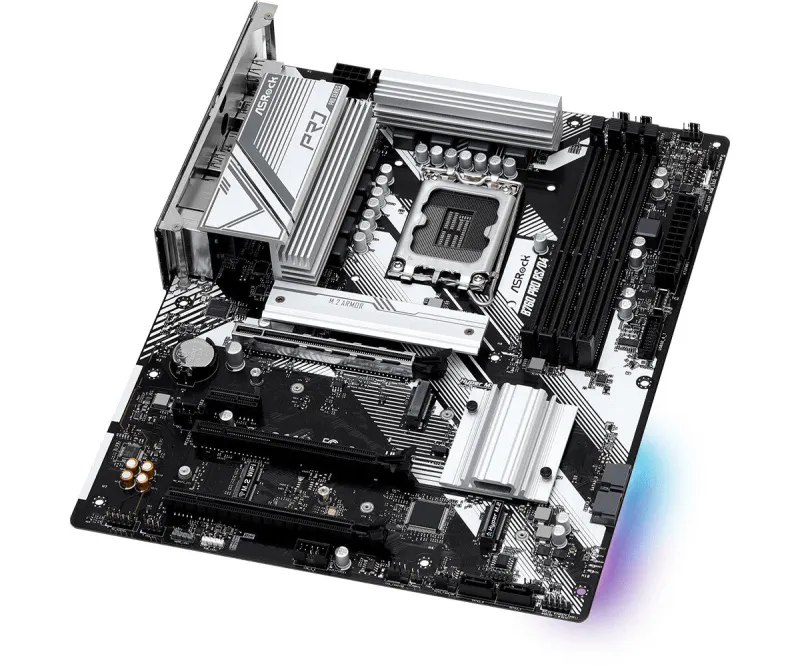

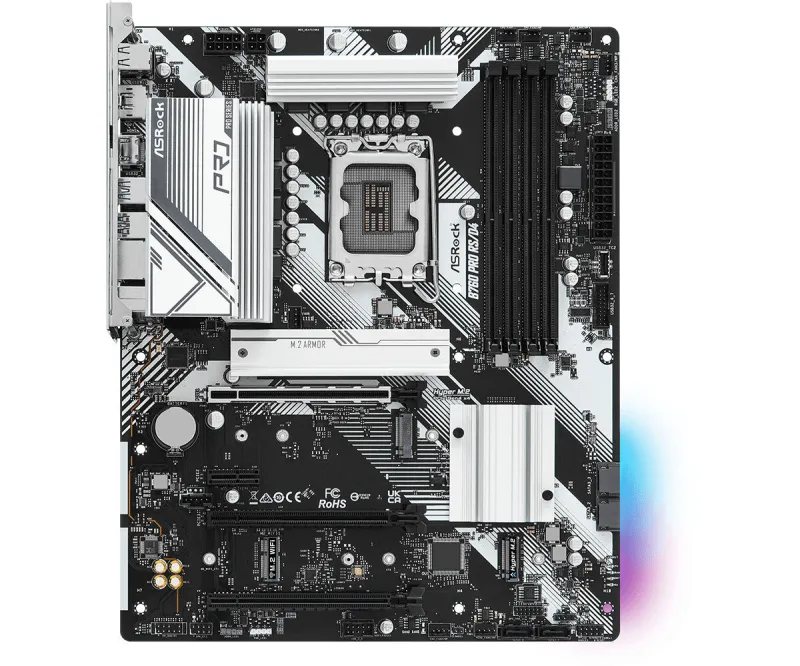

Asrock B760 Pro RS/D4 Intel B760 LGA 1700 ATX

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 7+1+1 Power Phase, Dr.MOS for VCore+GT
• Supports DDR4 5333MHz (OC)
• 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
• 1 M.2 (PCIe Gen4x2)
• 1 USB 3.2 Gen2 Type-C (Front)
• 1 USB 3.2 Gen1 Type-C (Rear)
• 7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front)
• 4 USB 2.0 (2 Rear, 2 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
