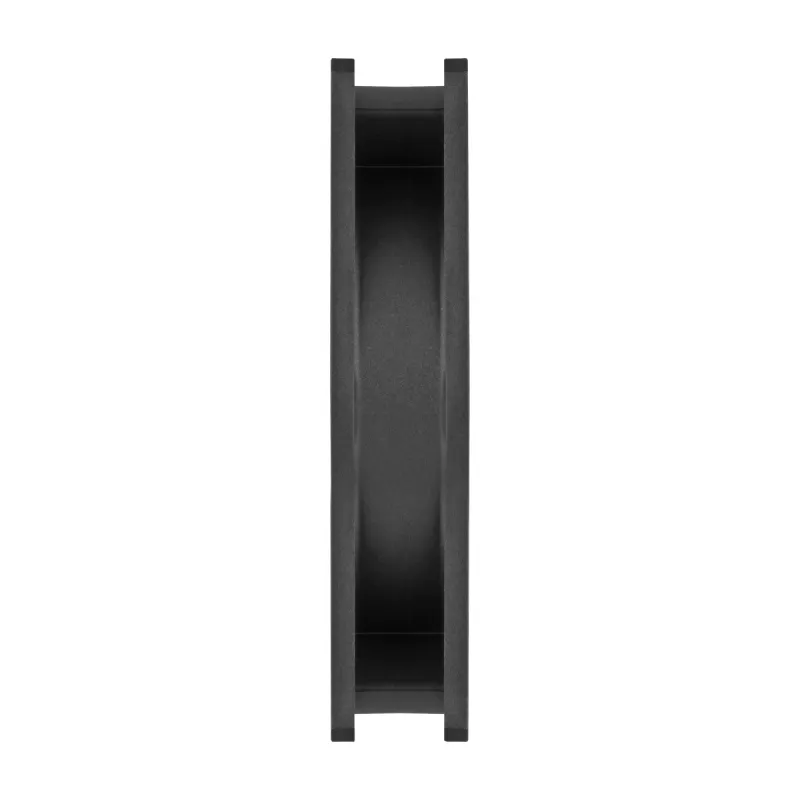

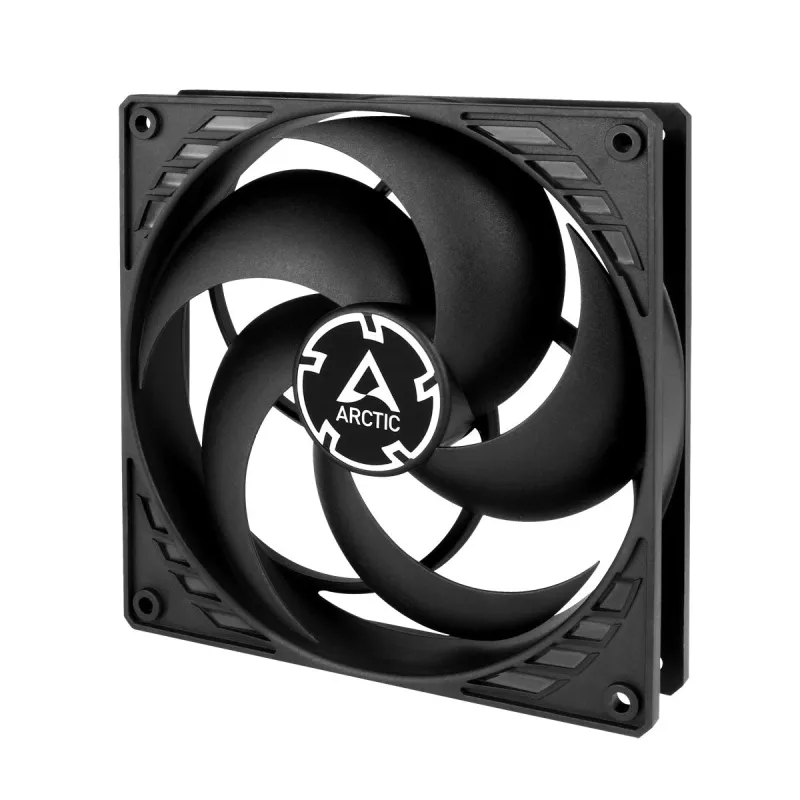

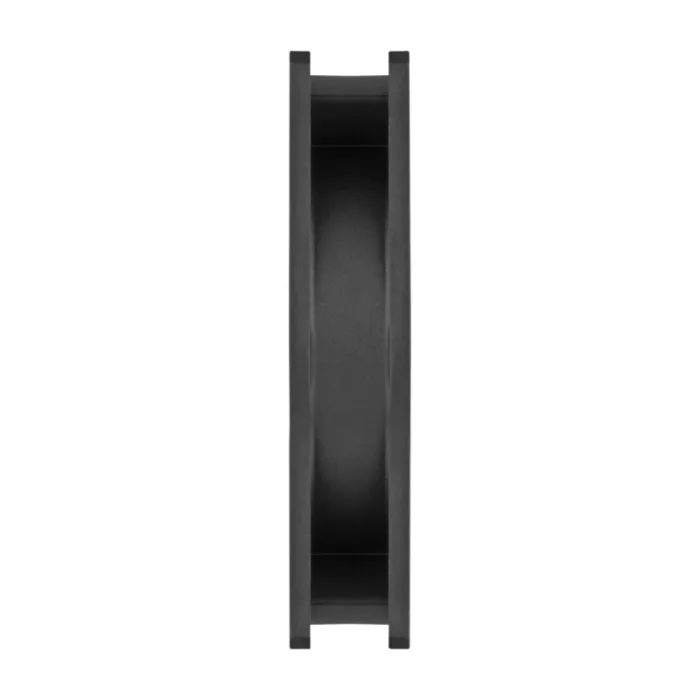

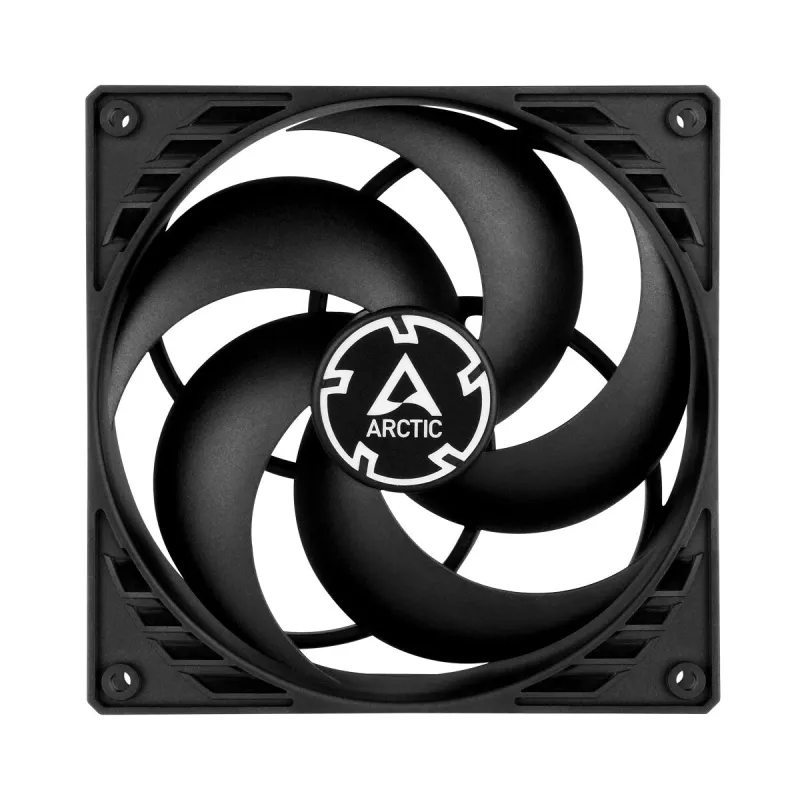

ARCTIC P14 PWM PST CO Pressure-optimised 140 mm Fan with PWM PST for Continuous Operation
- Computer case Fan 14 cm 1700 RPM
- 24.5 dB 72.8 cfm 2.4 mmH2O Fluid Dynamic Bearing (FDB)
- Pulse-width modulation (PWM) support
- Black
Our coolers have pushed the limits further every year – and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
| Performance | |
|---|---|
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.4 mmH2O |
| Airflow | 123.76 m³/h |
| Maximum airflow | 72.8 cfm |
| Noise level | 0.3 sone |
| Noise level (high speed) | 24.5 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 200 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin + 4-pin |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Rated current | 0.12 A |
| Starting voltage | 3.9 V |
| Voltage | 12 V |
| Power consumption (typical) | 1.44 W |
| Weight & dimensions | |
|---|---|
| Package weight | 234 g |
| Package height | 29 mm |
| Package depth | 143 mm |
| Package width | 143 mm |
| Cable length | 0.4 m |
| Weight | 194 g |
| Height | 27 mm |
| Depth | 140 mm |
| Width | 140 mm |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Package type | Box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
