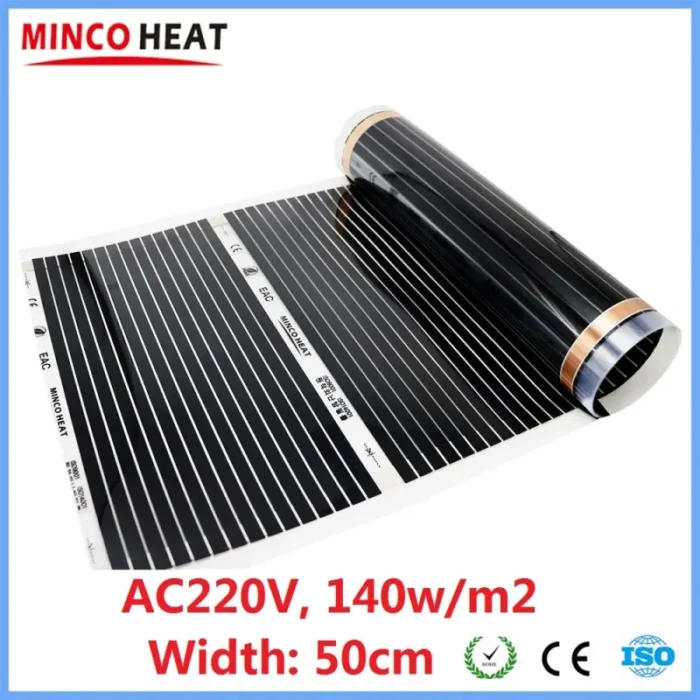

All Sizes 140w/m2 Infrared Heating Film 220V Electric Warm Floor Mat 50cm Width
SPECIFICATIONS
Brand Name: MINCO HEAT
Material: Carbon
Origin: KR(Origin)
Power: 150w/m2
Voltage: 220V
Type: Floor Heating Systems
Model Number: MK-1405
Certification: CE
Floor Heating Valve: Thermostatic Mixing Valve
Choice: yes
Specifications:
Working voltage: 200~240V 50/60Hz
Rated power: 140W/m2 ±10%
Max surface temperature: 45° C
Melting Point Film: 130 ° C
Thichness: 0.338mm
Width: 50cm
Infrared radiation: 90.4%
Wave Length: 5-20 um
Electromagnetic field-almost none
Production: South Korea
Notice: suggest 1 piece heating film use with 2pcs clamps + 6pcs inculation pastes
Superiority of Heating Film Heating System:
Infrared heating is one of the healthiest and most modern method of heating, which uses a similar thermal properties as the sun itself. Infra red rays directly heat people, walls and objects, and then the air is heated from them. In traditional radiator heating it leads to heating and drying the air. Warm air flows up and first heats the top of the room and then low-lying objects, people and so on.
– Infra panels have an efficiency of 98%, an average energy saving is 30%
– Infra heating does not cause dust dispersion
– It creates a healthy environment, destroys bacteria
– Ensures uniform temperature in whole room
– Clean, noiseless, maintenance-free operation and space-saving
– Easy control and operation with thermostats
– Easy installation, no need to rework the floor or walls
When using infra red heating, the air temperature is usually lower by 3-4 ° C, as in a room with traditional heating it to achieve a comparable feeling of warmth. Lowering the air temperature by 1 ° C can save up to 5-6% of energy.
Connect the Heating Film
