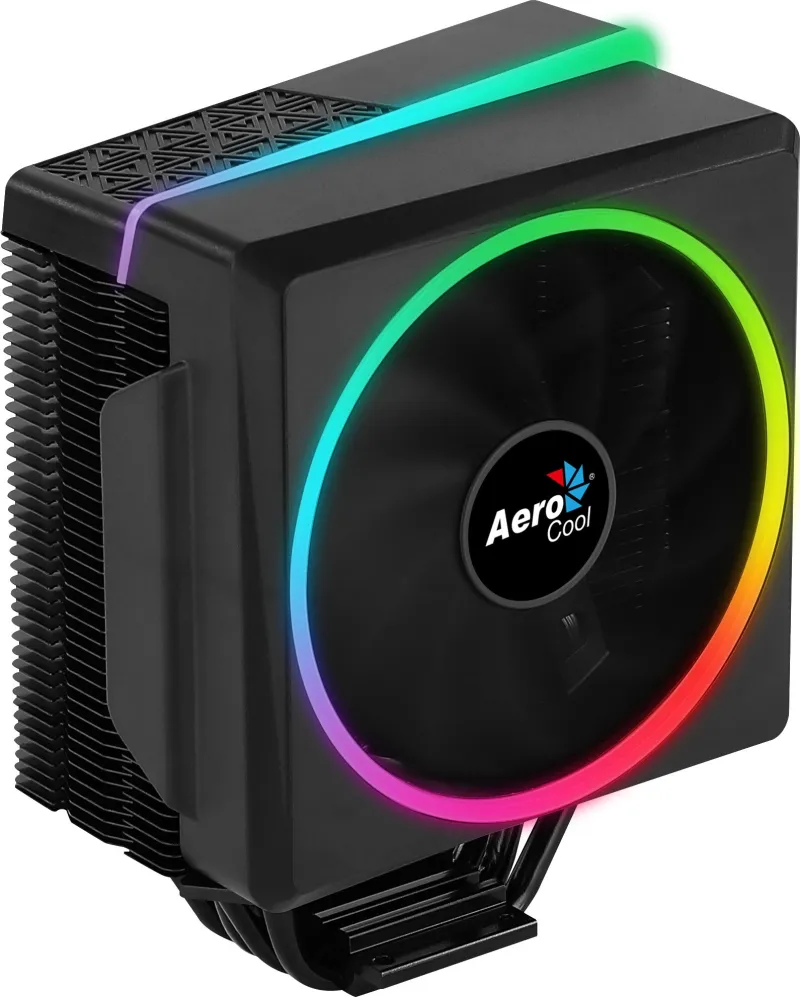

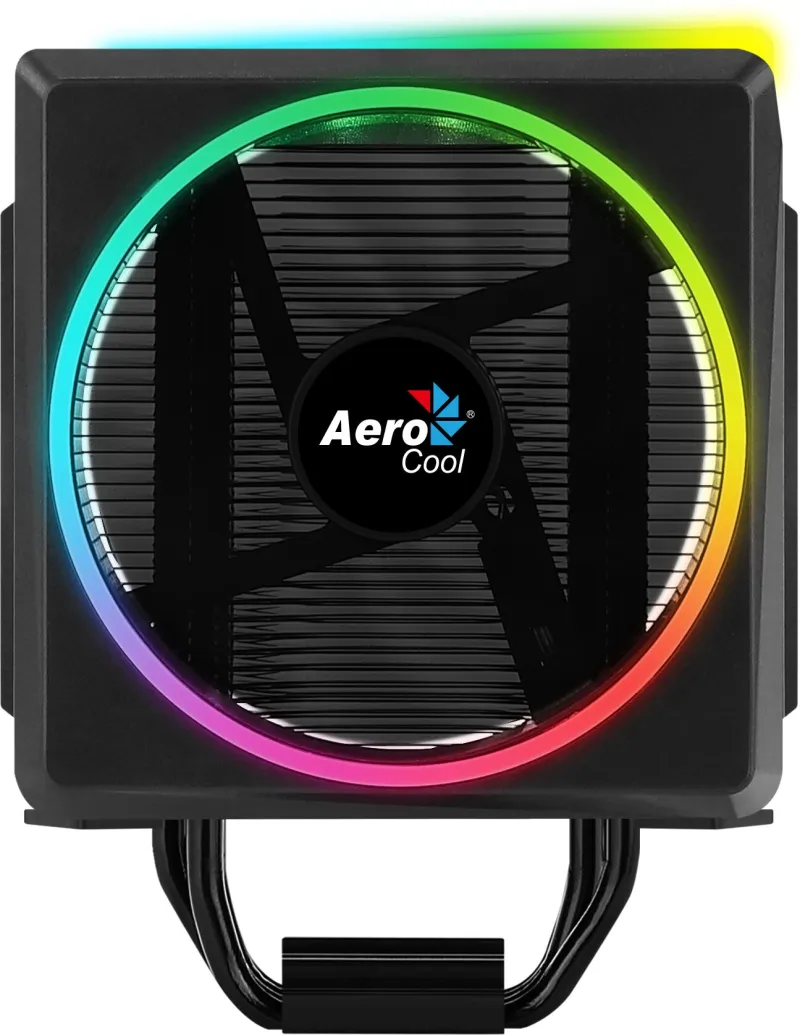

Aerocool Cylon 4 Processor Cooler 12 cm Black
- RGB LED design on the top and side of the air cooler adds a stylish flair to your rig
- Comes with built-in RGB lighting effects and compatibility with Addressable RGB motherboards or hubs
- Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
- Cover on the top of the air cooler achieves a unidirectional air flow, improving heat dissipation
- Upgraded high efficiency fins for optimal thermal performance
- Black coating on fins improves cooling efficiency
- TDP (Thermal Design Power) up to 145W
PWM air cooling solution with stylish Addressable RGB LED on the top and side of the air cooler. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increase heat dissipation area and improves cooling efficiency. Cover on the top of the air cooler achieves a unidirectional air flow, improving heat dissipation.
DYNAMIC RGB LED DESIGN
Comes equipped with an RGB LED Slash on the top and an RGB LED Ring on the side of the air cooler, adding a stylish and dynamic effect to your rig.
ADDRESSABLE RGB COMPATIBLE
Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.
TOP COVER FOR IMPROVED AIR FLOW
Cover on the top of the air cooler achieves a unidirectional air flow, allowing heat to dissipate
more quickly and efficiently.
HEAT CORE TOUCH TECHNOLOGY (HCTT)
4 Heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.
This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.
PWM HIGH-PRESSURE FAN
120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.
HIGH EFFICIENCY FINS WITH BLACK COATING
Upgraded high efficiency fins for maximum thermal performance.
Black coating on fins allows for faster heat absorption, improving cooling efficiency.
COMPATIBILITY
Compatible with most current motherboard designs.
Socket compatibility: LGA 2066/2011/115X/775
AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
| Bearing type | Hydraulic |
| Maximum air pressure | 1.21 mmH2O |
| Minimum air pressure | 0.72 mmH2O |
| Maximum airflow | 52.5 cfm |
| Minimum airflow (imperial) | 26.1 cfm |
| Noise level (high speed) | 26 dB |
| Noise level (low speed) | 14 dB |
| Rotational speed (max) | 1800 RPM |
| Rotational speed (min) | 800 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4 |
| Fan diameter | 12 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Blue, Green, Red |
| Illumination LED | Yes |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 145 W |
| Rated current | 0.6 A |
| Starting voltage | 5 V |
| Rated voltage | 12 V |
| Power consumption (typical) | 7.2 W |
| Weight & dimensions | |
|---|---|
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 155 mm |
| Depth | 76 mm |
| Width | 126.5 mm |
