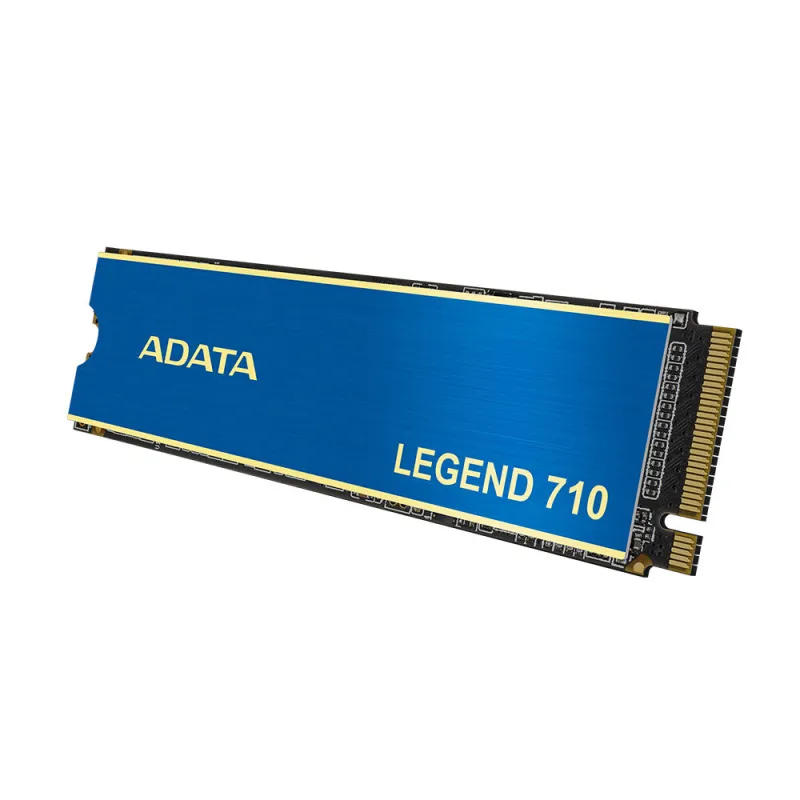

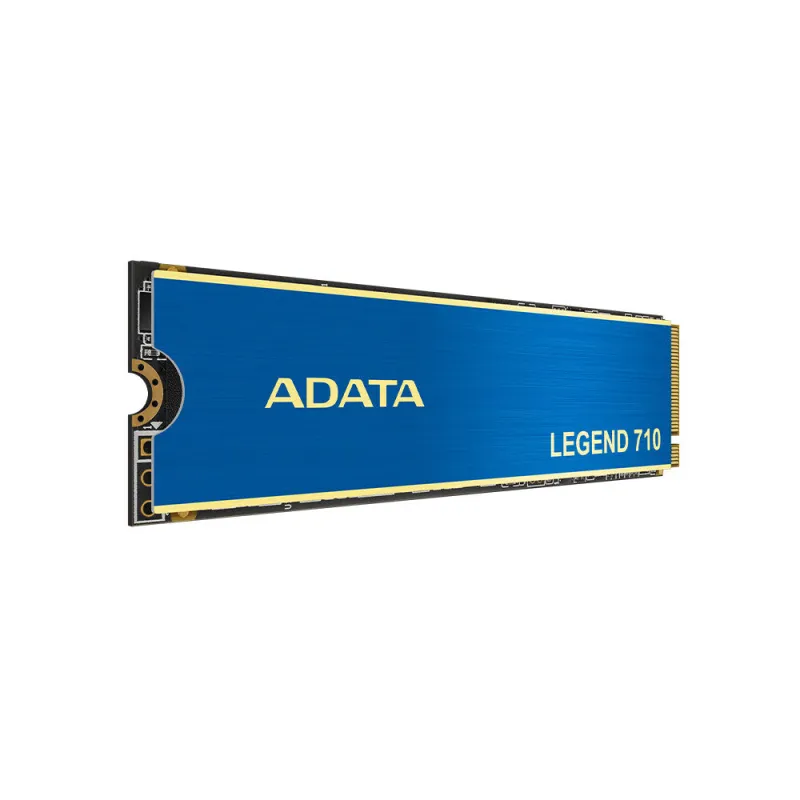

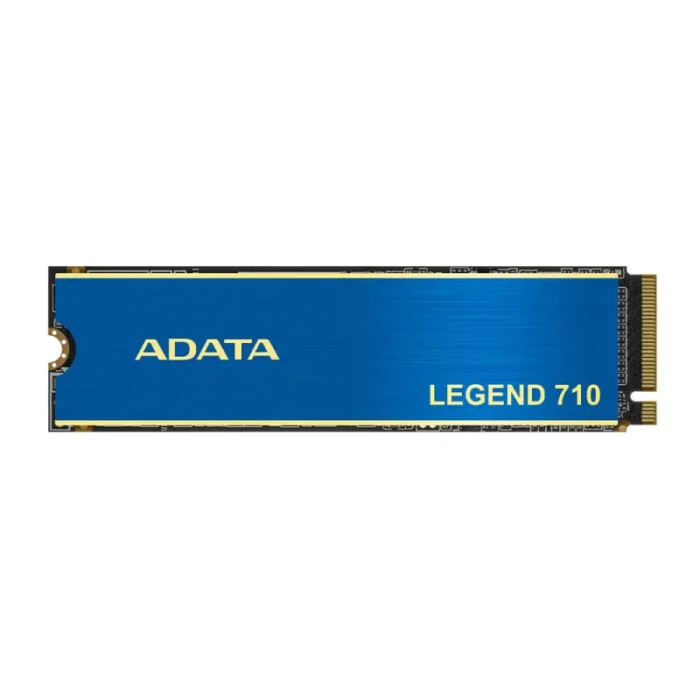

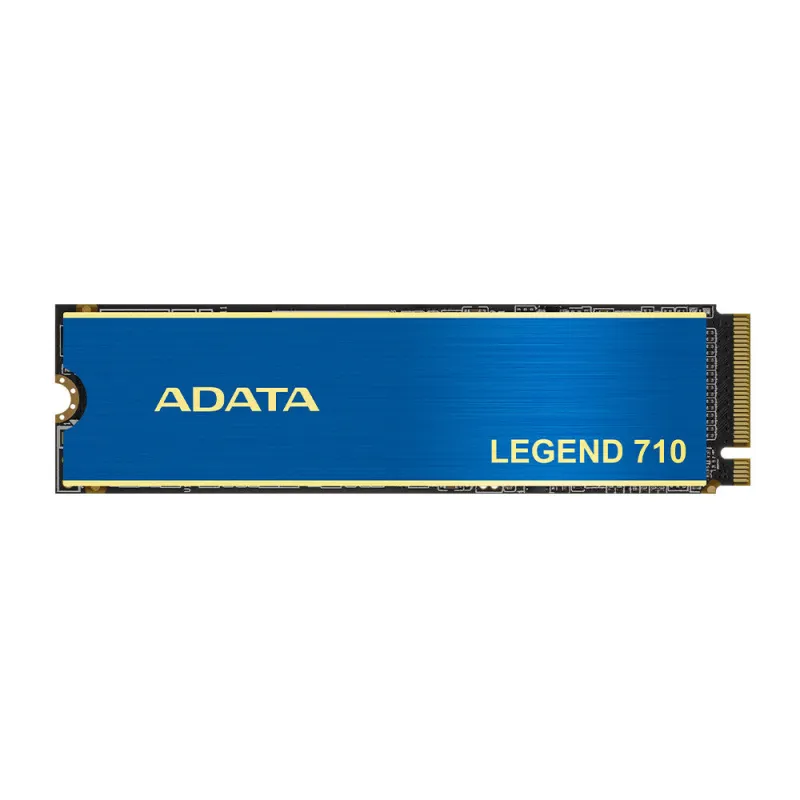

ADATA LEGEND 710 2 TB M.2 PCI Express 3.0 NVMe 3D NAND
- PCIe Gen3 x4 interface
- Excellent read/write performance
- Heat sink keeps things 15% cooler
- Great upgrade option for creators
- High capacities
- Supports NVMe 1.4
- LDPC & AES 256-bit encryption
- Supports Host Memory Buffer(HMB)
Enhancing Your Creativity
The LEGEND 710 utilizes PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It’s M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.
Keeping Things Cool
The LEGEND 710’s understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden-colored trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.
Helping You Create Better
Creativity can’t wait! The LEGEND 710 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.
Protecting Your Creations
With LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 710 ensures accurate data transmissions and security.
SSD Toolbox
SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.
| Features | |
|---|---|
| Certification | CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS |
| TBW rating | 520 |
| Mean time between failures (MTBF) | 1500000 h |
| ECC | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | Realtek RTS5766DL |
| Random write (4KB) | 150000 IOPS |
| Random read (4KB) | 200000 IOPS |
| Write speed | 1800 MB/s |
| Read speed | 2400 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| Memory type | 3D NAND |
| NVMe version | 1.4 |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| SSD capacity | 2 TB |
| Brand-specific features | |
|---|---|
| Brand specific technologies | SLC Caching |
| Weight & dimensions | |
|---|---|
| Weight | 9 g |
| Height | 3.13 mm |
| Depth | 80 mm |
| Width | 22 mm |
| Packaging data | |
|---|---|
| Manual | Yes |
| Operational conditions | |
|---|---|
| Operating shock | 1500 G |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| General | |
|---|---|
| Product family | LEGEND 710 |
