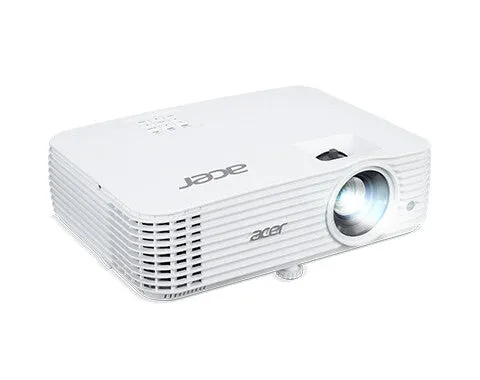

Acer Essential X1626AH Ceiling-mounted projector 4000 ANSI lumens DLP WUXGA (1920×1200) White
- Ceiling-mounted projector White
- DLP 4000 ANSI lumens
- Lamp 4000 h
- WUXGA (1920×1200) 16:10 10000:1
- Screen size compatibility: 685.8 – 7620 mm (27 – 300″) Number of colours: 1.073 billion colours
- Zoom capability
- Built-in speaker(s) 10 W
- AC 300 W
Fill even well-lit, medium-sized meeting rooms with bright, clear images thanks to the X1626AH projector’s WUXGA resolution and up to 4,000 lumens of brightness, while a 120Hz refresh rate means smooth visuals with low input lag. Installation is easy with the innovative Image Shift feature.
Up to 1920×1200 WUXGA Resolution
Top-of-the-line image quality in breathtakingly crisp 1920×1200 WUXGA resolution.
4,000 Lumens Brightness
See crystal-clear, vibrant images from a distance in daylight or medium to large rooms with up to 4,000 lumens of brightness.
Acer LumiSense™
Acer LumiSense™ adjusts the image brightness and colour saturation based on the content you’re viewing.
Acer BlueLightShield™
Protect your eyes from unnecessary strain by utilising Acer BlueLightShield™ technology.
1080p Resolution at 120Hz Refresh Rate
Catch every detail of fast-paced sports, films and games with FHD 1080p clarity and an impressive 120Hz framerate for hyper-smooth images.
24_7 Operation1
Get non-stop projection with support for 24-hour/7-day continuous or prolonged use, ideal for public displays and exhibitions1.
Image Shift
Project with precision and avoid setup problems. Using Image Shift and digital zoom, you can shift the image precisely to fit your screen without having to alter the existing mounting location.
Acer Display Widget
No need to fiddle with buttons. Easily modify your settings and control multiple projectors simultaneously via the Acer Display Widget software.
Integrated Speakers2
What you hear will be just as good as what you see with the powerful built-in speakers2.
| Projector | |
|---|---|
| Keystone correction, vertical | -40 – 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Vertical synchronization (min) | 0.024 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Number of colours | 1.073 billion colours |
| Projection distance | 1 – 9.7 m |
| Screen size compatibility | 685.8 – 7620 mm (27 – 300″) |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 10000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | DLP |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Lamp power | 240 W |
| Lamp type | UHP |
| Service life of light source (economic mode) | 10000 h |
| Service life of light source | 4000 h |
| Light source type | Lamp |
| Lens system | |
|---|---|
| Throw ratio | 1.5 to 1.65 (2540 [email protected] m) |
| Zoom capability | Yes |
| Aperture range (F-F) | 2 – 2.05 |
| Focal length range | 15.85 – 17.44 mm |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| 3D | No |
| Analog signal format system | NTSC, PAL, SECAM |
| Ports & interfaces | |
|---|---|
| Audio (L/R) out | 1 |
| Audio (L/R) in | 1 |
| Composite video in | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Compatible operating systems | Mac PC, Windows PC |
| Projection modes | Ceiling, Front, Rear |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| Product type | Ceiling-mounted projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input voltage | 100 – 240 V |
| Power consumption (economy mode) | 217 W |
| Power consumption (typical) | 300 W |
| Power source | AC |
| General | |
|---|---|
| Product family | Essential |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 80% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.6 kg |
| Packaging content | |
|---|---|
| Cables included | AC, VGA |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
