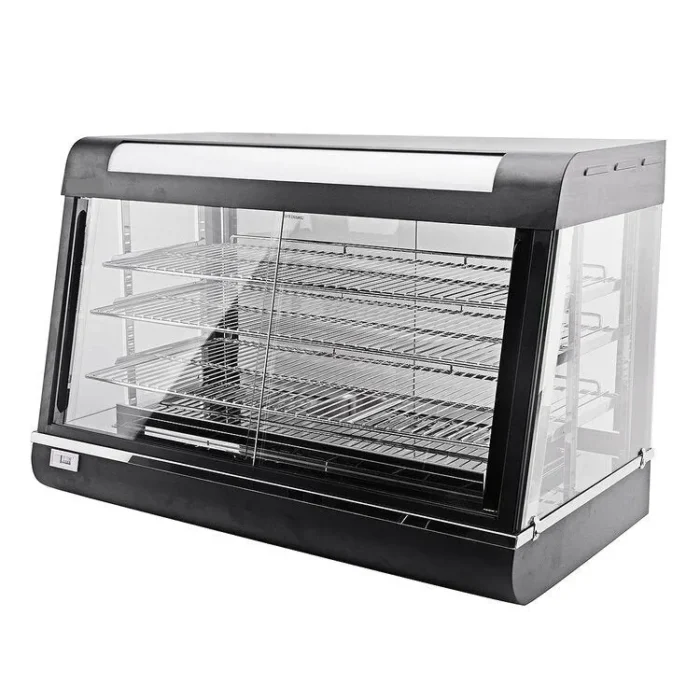

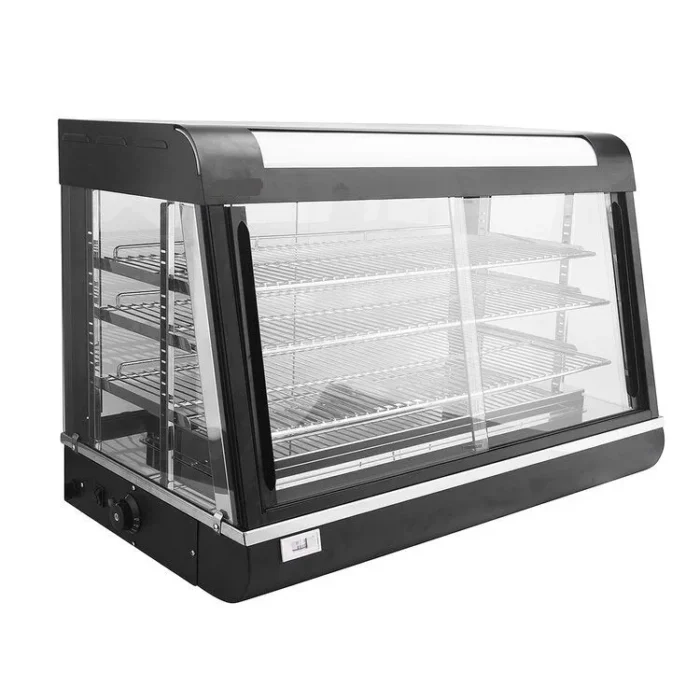

101036 – Hot Display Cabinet – 370 Litres

Model Number: FM48

The Hamoki Heated Display Cabinet is perfect for merchandising a wide variety of hot food products, such as sausage rolls, pies and pasties. Featuring a 370 litre capacity over three shelves, the merchandiser also includes attractive curved glass and internal lighting to help maximize impulse purchases of hot food.

Cool to touch plastic handle
Water reservoir at the bottom to add humidity when needed
Extra deep reservoir GN1/9*2.5 to last for whole day
Three levels of shelves inside chamber
Shelf height can be adjusted
Rubber seal between door and frame to prevent heat loss
Vertical fluorescent lamp on both sides for better food display
Transparent cover on fluorescent lamps
Filament lamp on top for advertising posters to attract customer
On/off switch for lamps
Anti-slip rubber foot
Heating indicator

This product is covered with a Manufacturer’s 1 Years Parts Warranty. (Please note, bulbs are not included within the Warranty.)

Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

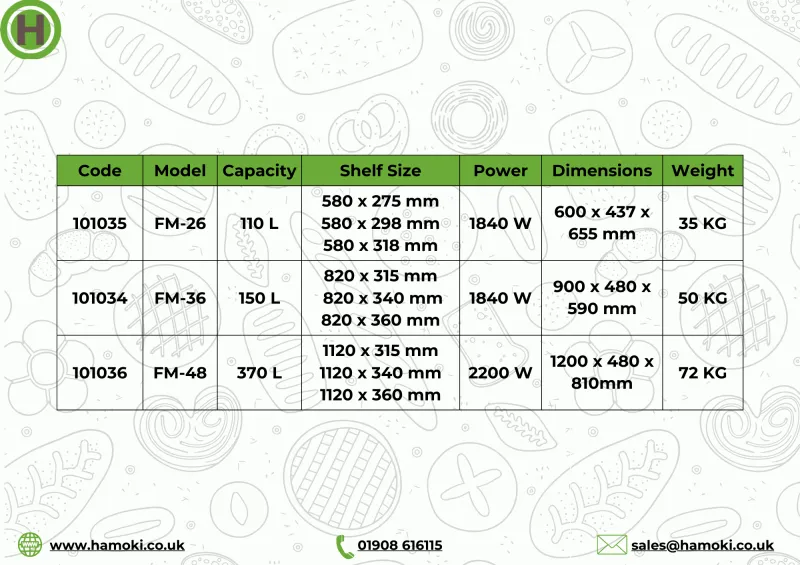

DIMENSIONS (WxDxH): 1200 x 480 x 810 mm (+ (W) 30-50 mm for controls)
SHELF 1: 1120 x 315 mm
SHELF 2: 1120 x 340 mm
SHELF 3: 1120 x 360 mm
CAPACITY: 370 L
WEIGHT: 72 KG
POWER: 2.2 KW / 240 V 50 Hz

ASSEMBLY INSTRUCTION
TECH SHEET
EXPLOSION DRAWING
WIRING DIAGRAM
